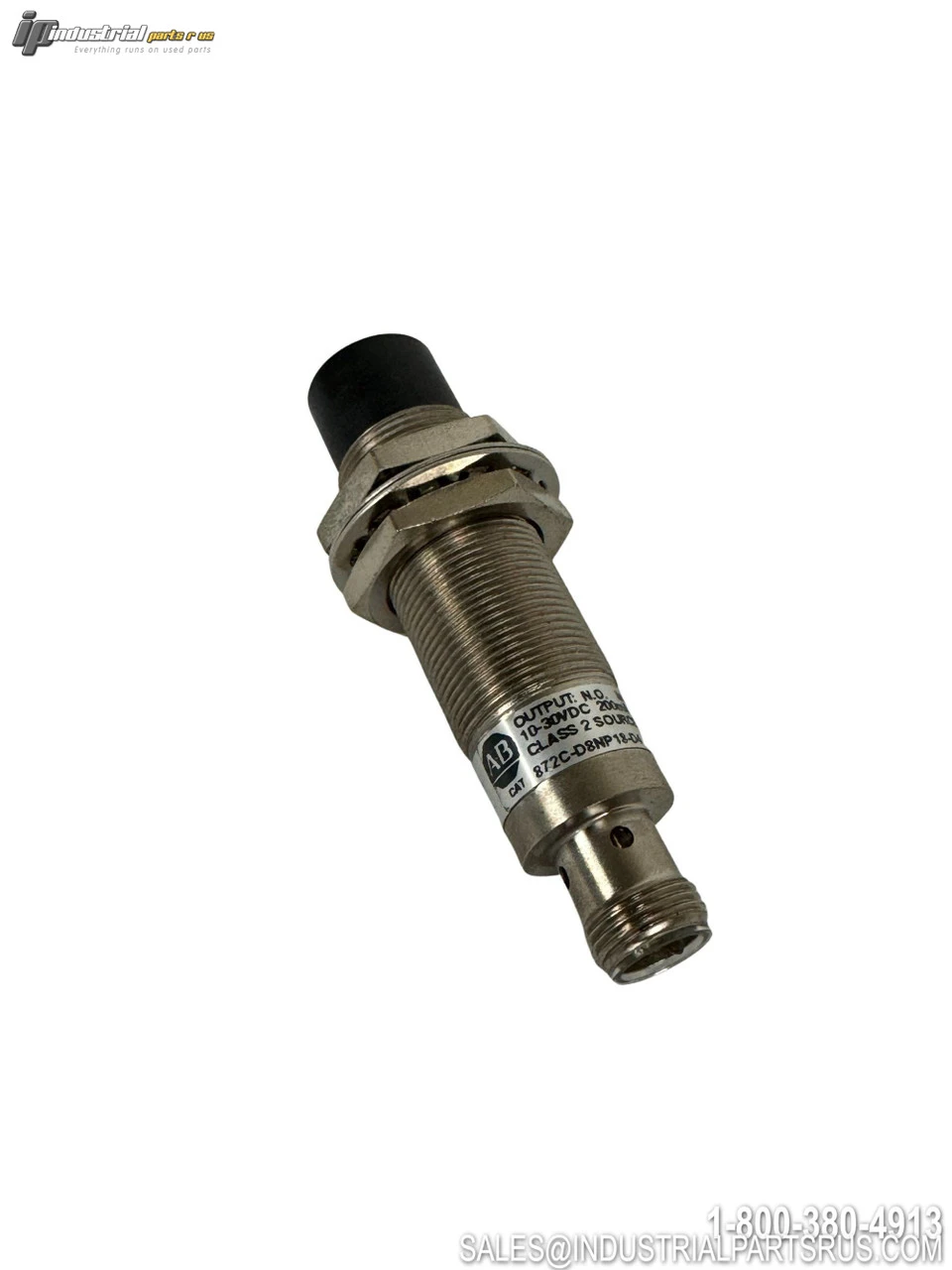

USED ALLEN-BRADLEY 872C-D8NP18-D4
Overview
Description
The Allen-Bradley 872C-D8NP18-D4 is an 18mm barrel inductive proximity sensor from the WorldProx series designed for non-contact detection of metallic objects in industrial automation applications. This unshielded sensor provides an 8mm sensing distance with a PNP normally open output configuration and operates on 10-30VDC power supply.
Specification
Value
Brand
Allen-Bradley
Model/Part Number
872C-D8NP18-D4
Product Type
Inductive Proximity Sensor
Series
872C WorldProx
Barrel Diameter
18mm
Sensing Distance
8mm
Output Type
PNP (Source)
Output Function
Normally Open (N.O.)
Operating Voltage
10-30VDC
Maximum Load Current
200mA
Operating Frequency
1500Hz
Wire Configuration
3-Wire DC
Connection Type
4-Pin DC Micro QD (M12)
Housing Material
Nickel Plated Brass
Barrel Type
Standard Cylindrical
Shielding
Unshielded
Mounting Type
Threaded (M18)
Target Type
Metallic Objects
Certifications
CE, UL, CUL, RCM, KC, CCC
Lifecycle Status
Active
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1608
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Inductive
Operating Distance: 8mm
Full Load Amps: 200mA
Manufacturer: Allen-Bradley
Part Number: 872C-D8NP18-D4
Shelf: O-5
Model: 872C-D8NP18-D4
MPN: 872C-D8NP18-D4
Type: Inductive Proximity Sensor
