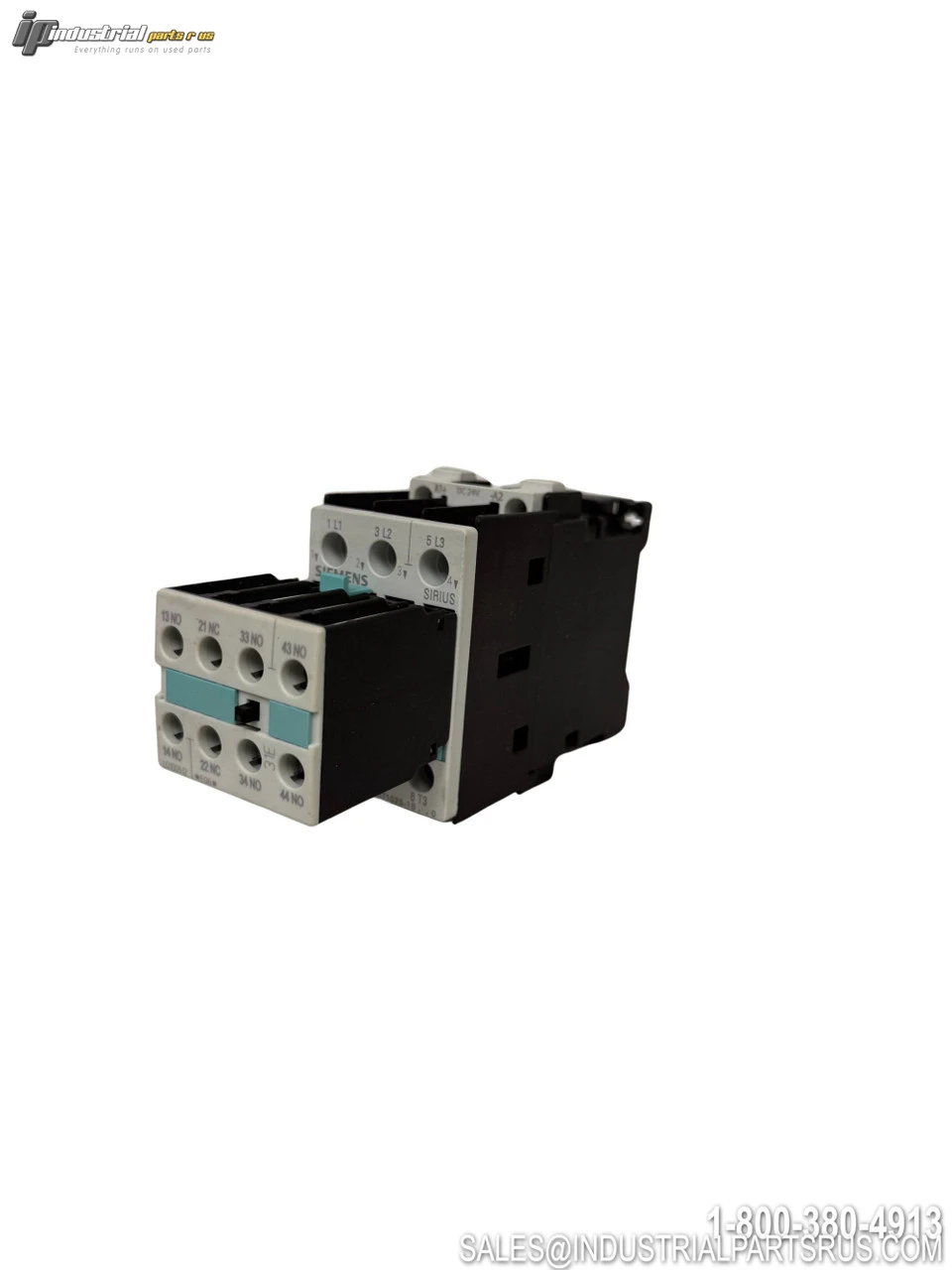

USED SIEMENS 3RT1025-1B..0

The Siemens Sirius 3RT1025-1B..0 is a 3-pole IEC rated contactor specifically designed for the control of electric motors. This industrial-grade contactor features normally open contacts and provides reliable motor switching capabilities in industrial automation applications. It conforms to IEC 60946 standards and mounts on standard 35mm DIN rail for easy installation.
Specification
Value
Brand
Siemens
Model/Part Number
3RT1025-1B..0
Series
Sirius
Number of Poles
3
Contact Type
Normally Open
Current Rating AC-3
17 Amps
Current Rating AC-1
40 Amps
Maximum Voltage
600 VAC
HP Rating @ 230V
5 HP
HP Rating @ 460V
10 HP
Coil Voltage
24VDC
Mounting Type
DIN Rail (35mm)
Connection Type
Screw Terminals
IEC Standard
IEC 60946
Application
Motor Control
We warranty all items for 30 days from date of purchase.

SKU: AI1598
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Mounting Style: DIN Rail
Current Rating: 17 A AC-3, 40 A AC-1
Material: Silver Alloy Contacts
Manufacturer: Siemens
Part Number: 3RT1025-1B..0
Series: Sirius
Shelf: C-19 Tub 7
Model: 3RT1025-1B..0
Coil Voltage: 24 VDC
Horsepower: 5 HP @ 230V, 10 HP @ 460V
MPN: 3RT1025-1B..0
Type: Contactor
