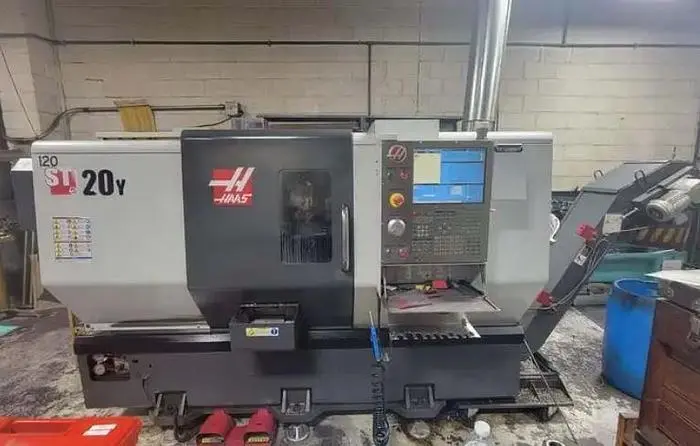

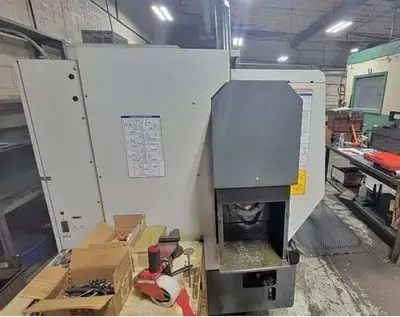

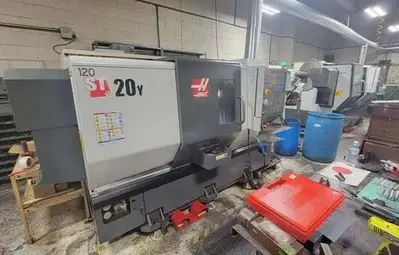

USED 2014 HAAS ST-20Y

Used CNC Lathe features 8.3" chuck, 21" swing, 11.75" max diameter, live milling/drilling, Y-axis, 20 HP spindle, 4,000 RPM speeds, robust 12-position turret. Includes parts catcher and chip conveyor. Dimensions: 142" x 90" x 92". 10,480 lbs.

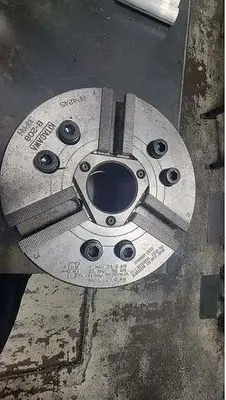

Chuck Size 8.3" 3-Jaw Hydraulic / 3 Jaw Collet Chuck
Maximum Swing Over Cross Slide 21"
Maximum Machining Diameter 11.75"
Maximum Machining Length 22.5"
X-Axis Travel 8.4"
Y-Axis Travel +/- 2.0"
Z-Axis Travel 22.5"
C Axis Spindle Rotation 0.001 Degree
Spindle Speeds 4,000 RPM
Spindle Nose / Spindle Bore / Bar Capacity A2-6" / 3.5" / 2.5"
Spindle Motor 20 HP
Rotary Tool Speed / Rotary Motor 4,000 RPM / 5 HP
Number of Turret Positions 12 Bolt on Style
Rapid Traverse Rates X, Y / Z 472 IPM / 945 IPM
Tailstock Taper MT #4
Machine Dimensions LxWxH 142" x 90" x 92"
Machine Weight 10,480 lbs.

C Axis Spindle Rotation
Live Milling/Drilling Capability
Y-Axis Capability

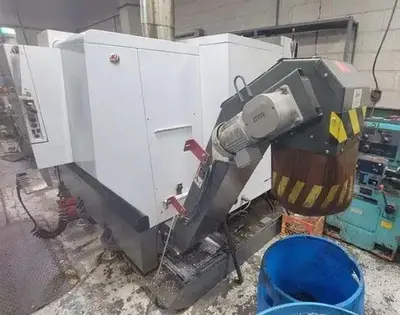

Belt Type Chip Conveyor
Parts Catcher
Automatic Tool Presetter
Programmable Tailstock
Rigid Tapping
Spindle Orientation
3J Collet Chuck
8" 3 Jaw Hydraulic Chuck
1 GB Programming Memory
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
(2) Radial & (4) Axial Live Tool Holders
**Run Time Hours 15,572**
**Approximate Spindle Hours 6,000**
