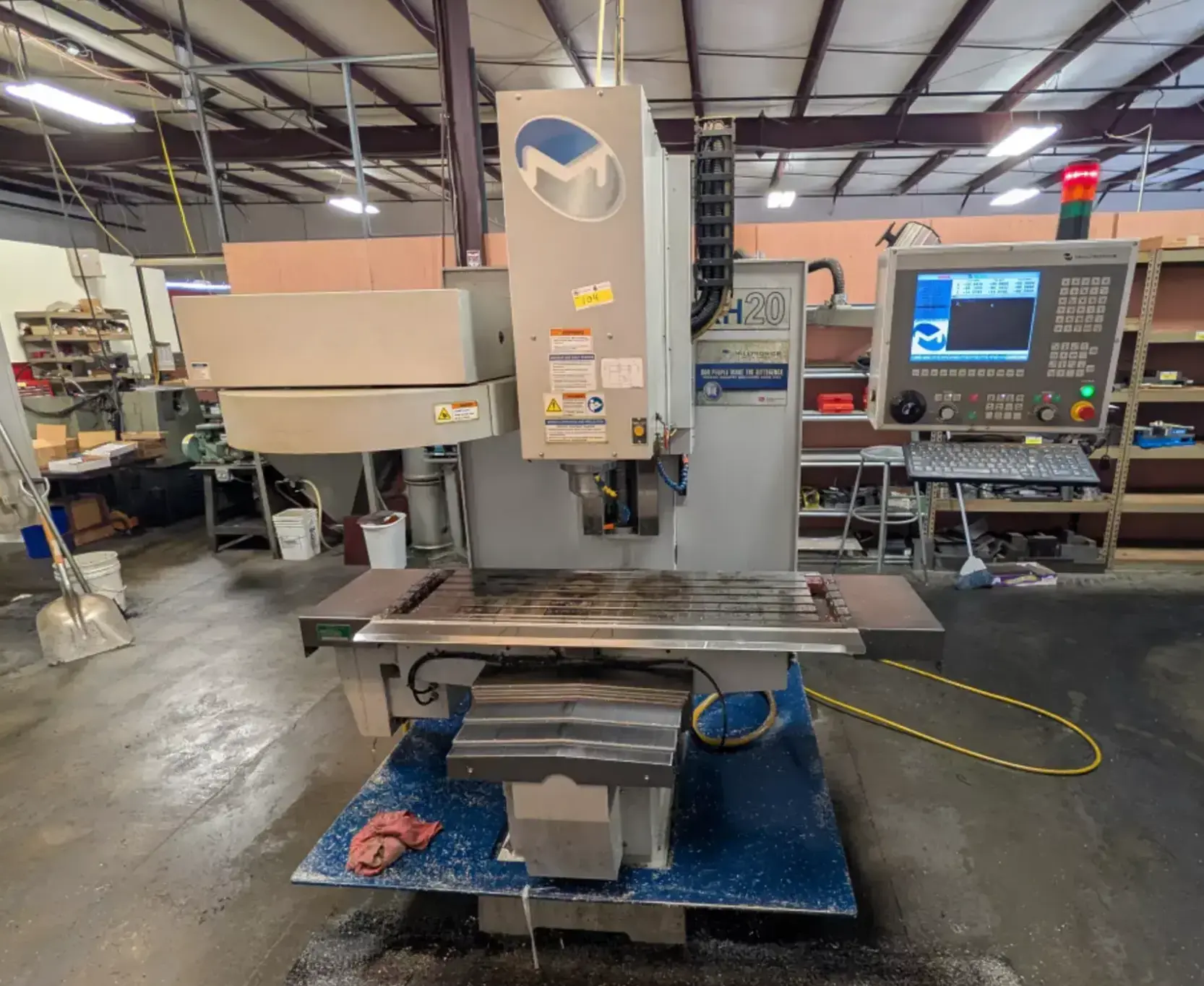

Used Vertical Machining Center. Features a 40" x 20" x 24" travel, 24 hp, 8000 RPM, 24-Position ATC, CT40 taper, and CNC control with programmable RPM. Rigid head design, precision ground ways, auto lube, and more.
| X | 40" | 1,016 mm |
| Y | 20" | 508 mm |
| Z | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CT40 | CT40 |
| Table-W | 16" | 406.4 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |
| Dimensions | 129" x 82" x 103" | 129" x 82" x 103" |
| Weight | 8000 LBS | 8000 LBS |
CNC Control w/Programmable RPM
Rigid Head Design - Vector Spindle Drive
24-Position Carousel Automatic Tool Changer
Telaflex Metal Way Covers - Rigid Tapping
Precision Ground Ways & Oversize Saddles
Automatic Lubrication
Programmable Flood Coolant
