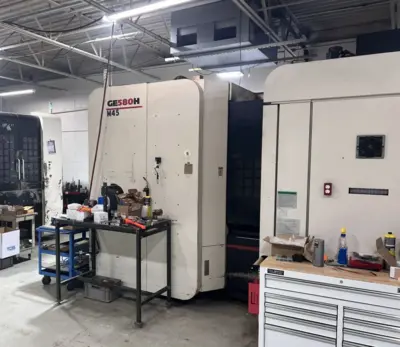

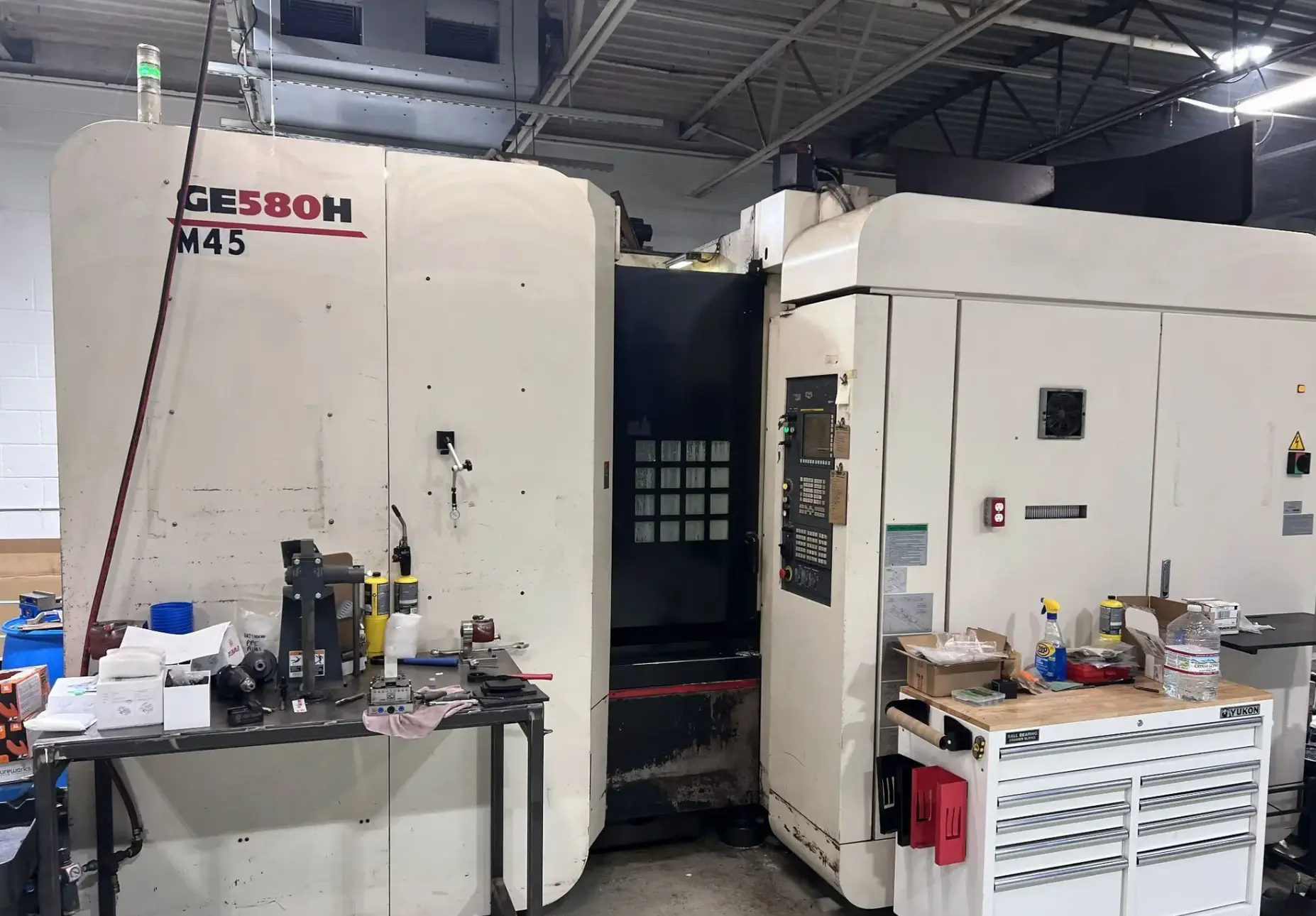

Used horizontal machining center with a robust 60 hp motor, 10k RPM, and 4-axis capability. Equip with a high-volume chip conveyor, various coolant systems, and more. X/Y/Z travel: 31.5"/31.5"/32.7", #50 taper, 40 ATC.
| X | 31.5" | 800.1 mm |
| Y | 31.5" | 800.1 mm |
| Z | 32.7" | 830.58 mm |
| Power | 60 hp | 44.7 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 40 | 40 |
| Taper | #50 | #50 |
| Pallet-W | 500 mm | 19.685" |
| Pallet-L | 500 mm | 19.685" |
| # Axis | 4 | 4 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 232"x129"x123" | 232"x129"x123" |
| Weight | 36,200lbs | 36,200lbs |
• Full 4th axis (360,000 position)
• High volume rolling filter chip conveyor
• Spindle air curtain
• Spindle oil chiller
• Coolant thru-spindle (256 PSI)
• Spindle flood coolant
• Bed flush coolant
• Ceiling shower coolant
• Refrigerated & temperature controlled ballscrews
