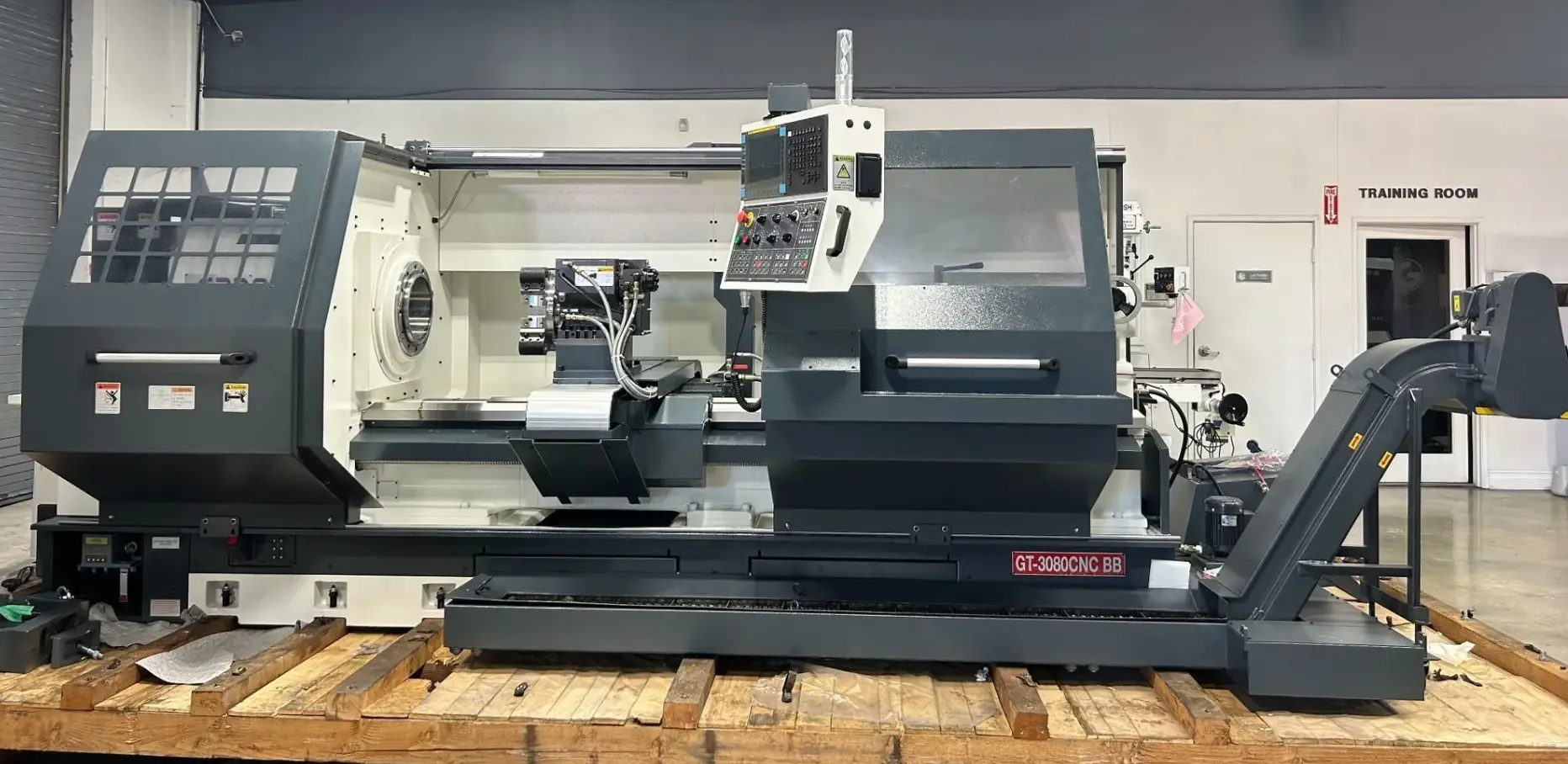

USED 2025 GANESH GT-3080 CNC
Overview
Description
Used CNC lathe, fully equipped with 10" spindle bore upgrade, 8-position hydraulic turret, tool holders, chip conveyor, and more. Machining tasks with 22" turning diameter and 78" length capacity.
Specifications
| Swing | 30" | 762 mm |
|---|---|---|
| Machining Length | 78" | 1,981.2 mm |
| Bar Capacity | 10" | 254 mm |
| Power | 30 hp | 22.4 kW |
| Turning Dia | 22" | 558.8 mm |
| Tailstock | Yes | Yes |
| Dimensions | 222x85x80 | 222x85x80 |
| Weight | 13,230 lb | 13,230 lb |

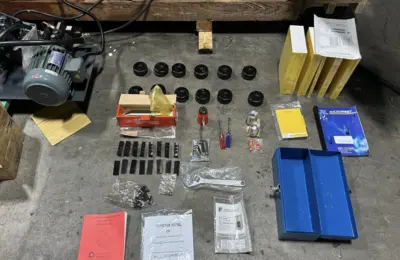

Equipped With
10" Spindle Bore Upgrade

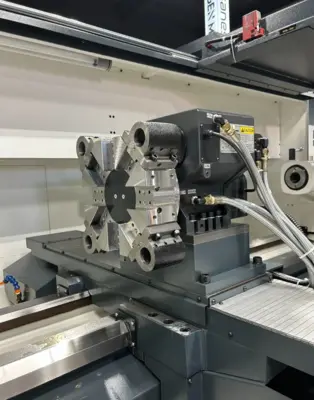

8 Position Hydraulic Turret
(4) ID Tool Holders
(8) OD Wedge Tool Holders 1" Shank
Chip Conveyor
Tailstock (MT #6)
Steady Rest
Rear Chuck Mount
Coolant System
*Note: Chuck not included with Big Bore Option.
