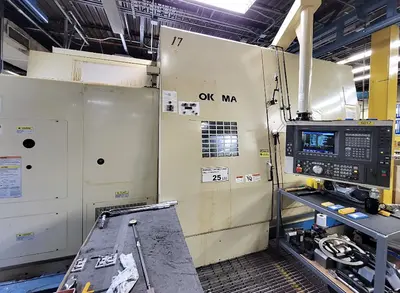

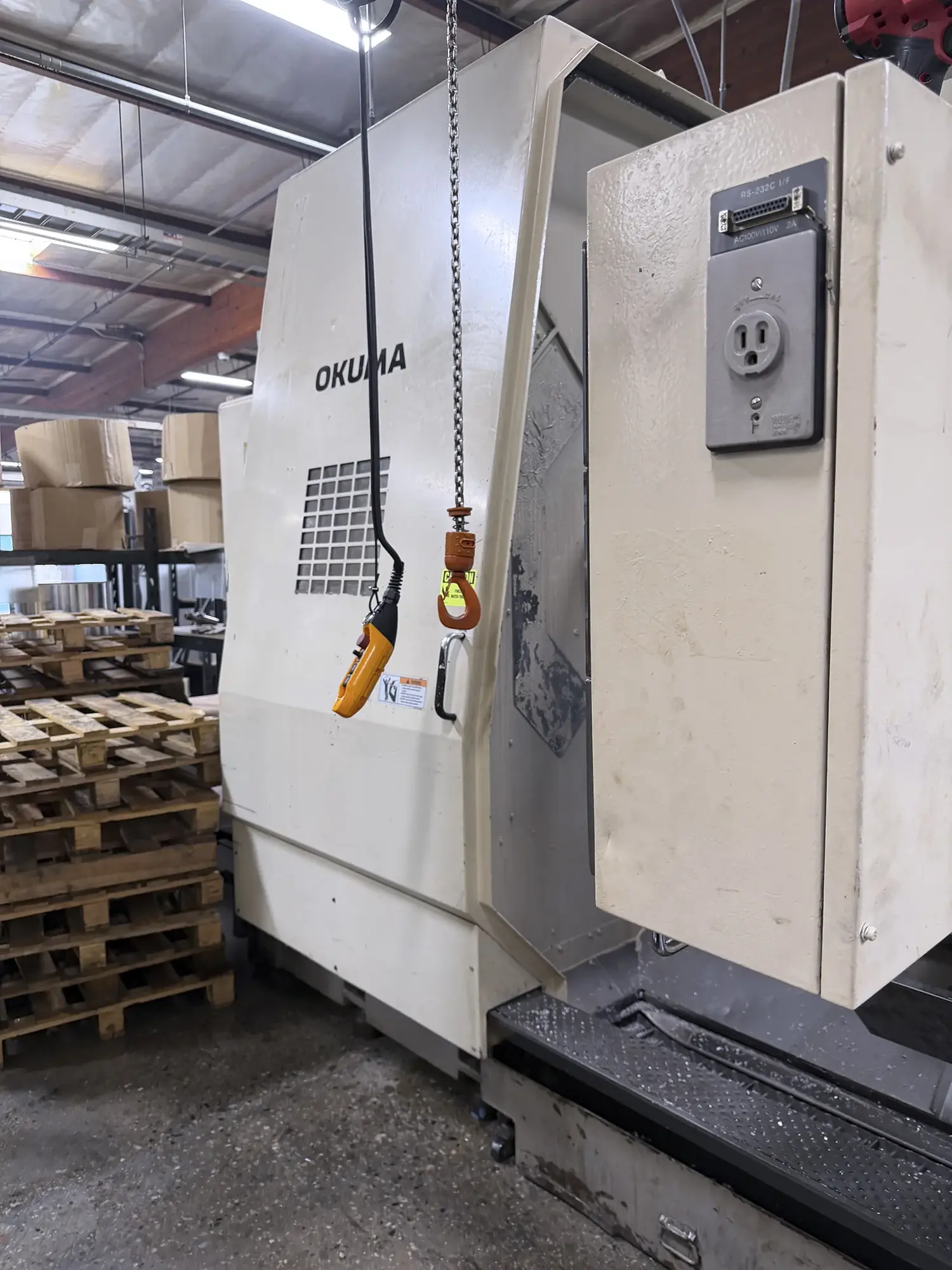

USED 2001 OKUMA LU45-M

Milling| Live Tooling
The Okuma LU45-M CNC Lathe (2001) with OSP-U100L control is a powerful heavy-duty turning center engineered for efficient machining of mid- to large-sized cylindrical components. Featuring simultaneous 4-axis machining with upper and lower turrets, plus live tooling for drilling, tapping, and milling, it enables complete multi-operation part production in a single setup. Ideal for aerospace, energy, oil & gas, and heavy equipment industries machining shafts, valves, pipes, and complex industrial components.

Swing: 33”
Swing Over Saddle: 22”
Machining Distance Between Centers: 49.21”
Travel, Z axis Upper Turret: 42.91”
Travel, Z axis Lower Turret: 40.35”
Travel, X-axis Upper Turret: 17.32"
Travel, X-axis Lower Turret: 12.00"
Travel, C Axis: 360º
Rotary Tool: 40 – 2000 RPM
Max Workpiece Diameter: XA/XB 23"/18”
Spindle Speeds: 12 - 2800 rpm
Spindle Bore: 5.12”
Turret Stations: 10 upper / 8 lower Live Mill / Drilling
Spindle Nose: A2-11
Rapids: Z/X 393/196 IPM
Feed rates X-Z: 0.0001---39.37 IPM
Quill Diameter: 5.12"
Quill Travel: 6.69”
Morse Taper: No. 5
Main motor (Cont./30 Min): (Cont. 30 Min) 50 HP / 60 HP
Electrics: 220/480/3/60
Approximate Dimensions: 294" x 89" X 82”H
Approximate Weight: 29,700 Lbs.

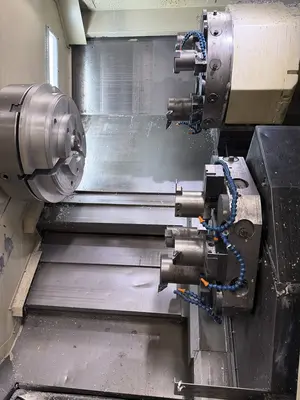

Dual Turret with 10 tool positions on Upper and 8 tool positions on Lower

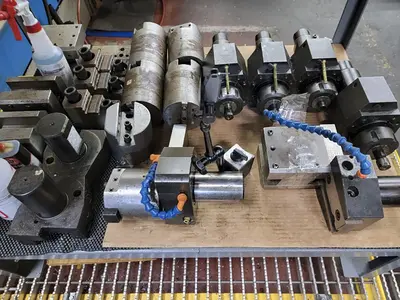

Live Tooling on Lower Turret

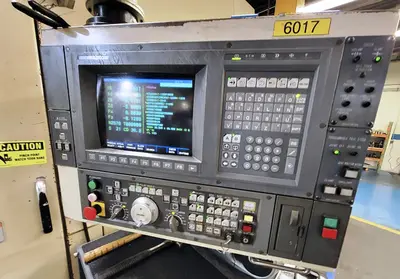

Osp-U100L Cnc Control With IGF Color Graphics Conversational Programing
Rohm 27" 3-Jaw Quick Change Jaws
Air Mist Unit

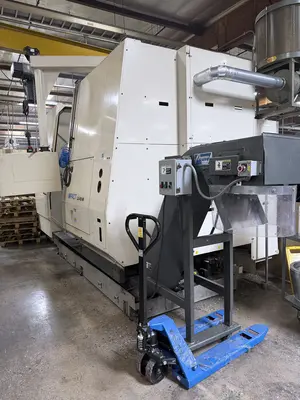

Side Discharge Chip Conveyor
