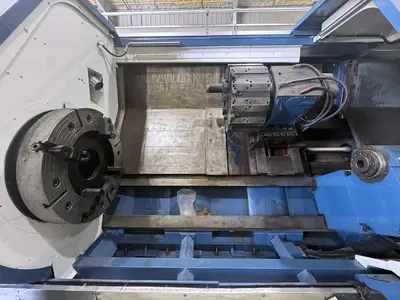

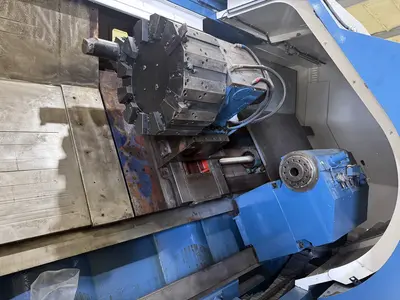

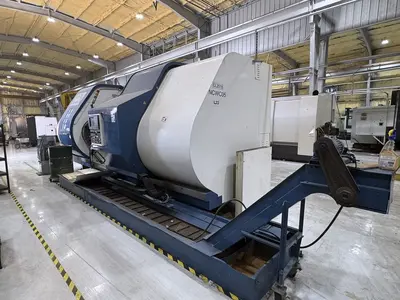

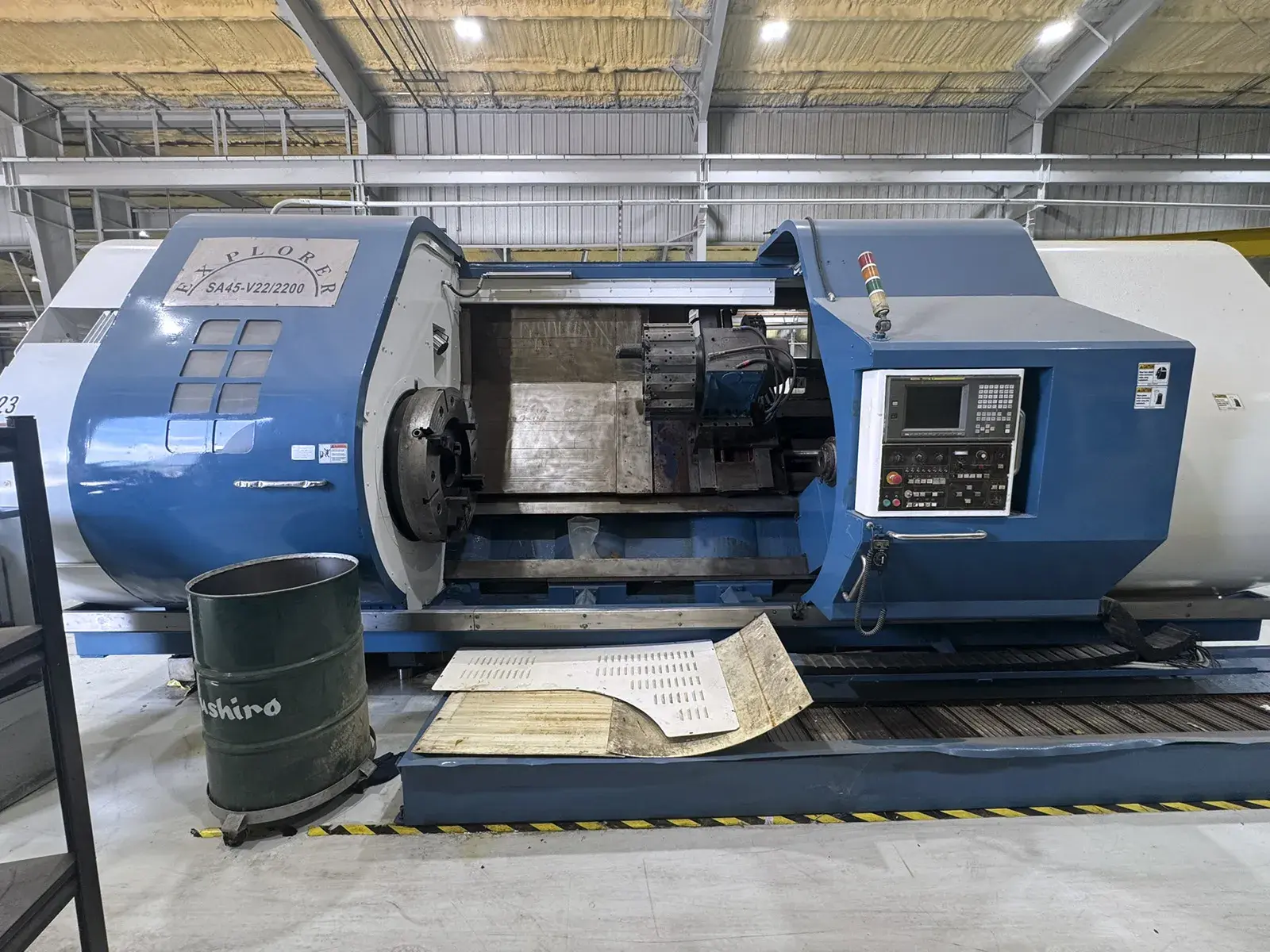

USED 2006 EXPLORER SA45-V22/2200

21" Spindle Bore! 86" Between Centers!
The Explorer SA45-V22/2200 Big Bore CNC Lathe (2006) with Fanuc 18-T control is a heavy-duty flatbed turning center engineered for large-scale industrial machining applications. Designed to handle long, thick-walled, and oversized cylindrical components, it excels in threading, boring, and profiling large-diameter pipes, drill collars, shafts, mill rolls, and heavy-duty valves. Ideal for oil & gas, energy, and heavy manufacturing industries requiring powerful, high-capacity precision machining.

DISTANCE BETWEEN CENTERS: 86"
Swing over Bed: 45"
Swing over cross slide: 39"
Max Turning Diameter: 45"
Spindle Bore: 21.06"
Spindle Speed: 300RPM
Spindle Motor: 50HP
Spindle Nose: A2-28

Tailstock
Chip Conveyor

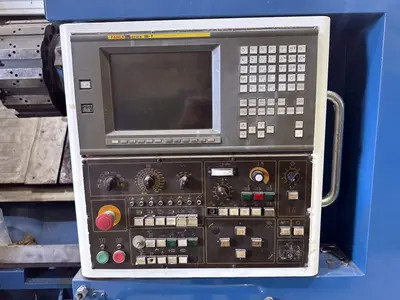

Fanuc Control
Main Machine Body: 216" L x 98" W x 96" H (Weight: ~35
000 lbs)

Chip Conveyor (Loose): 120" L x 30" W x 60" H
(Weight: ~2
000 lbs)
