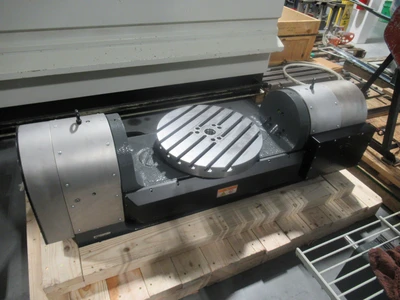

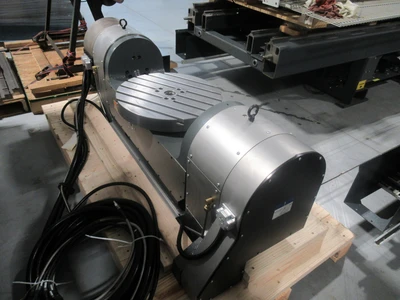

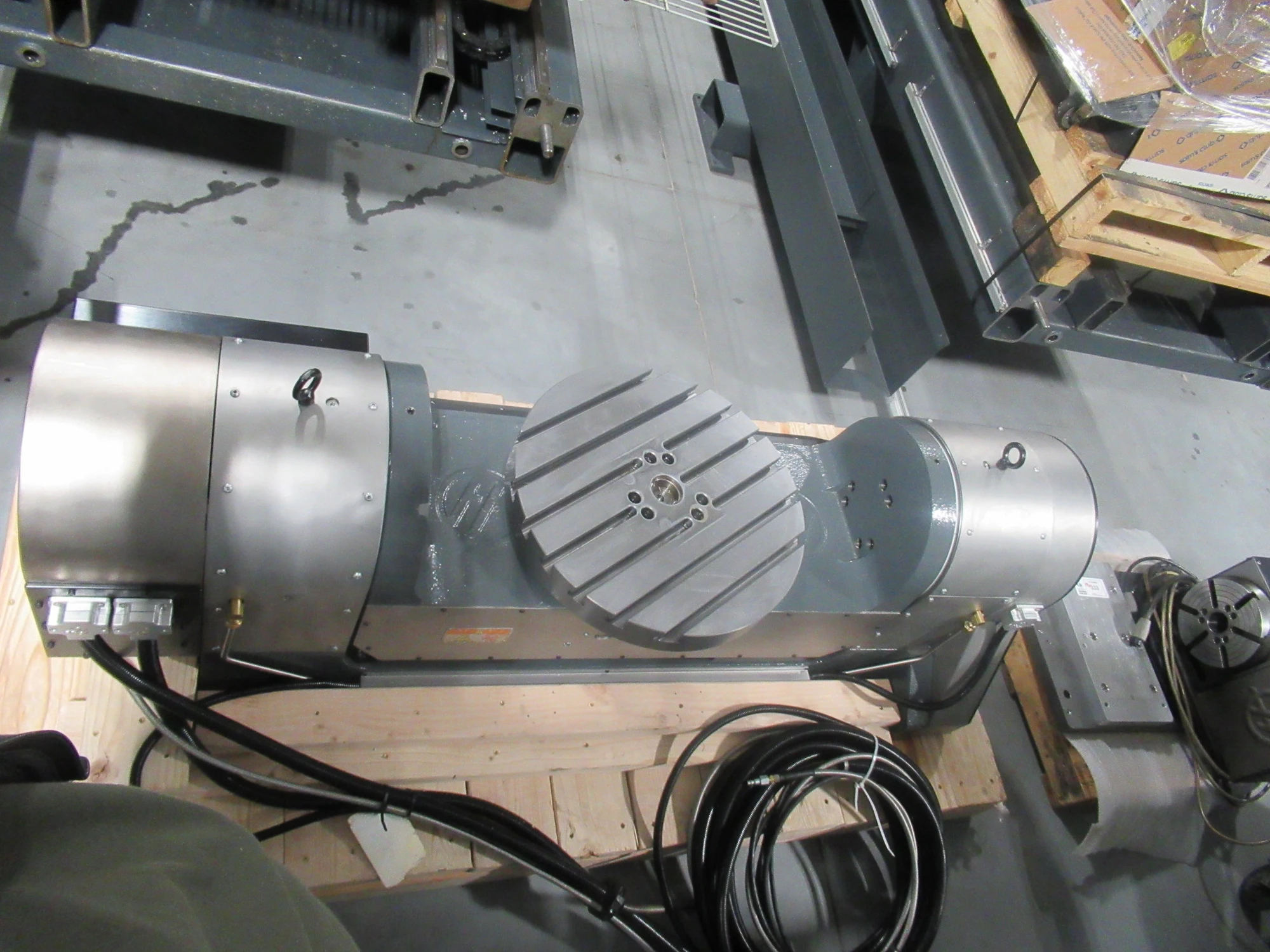

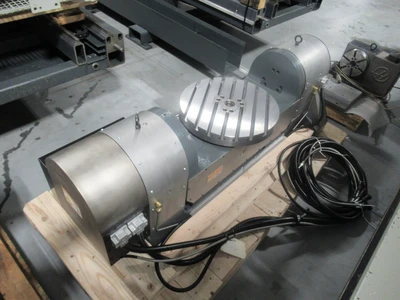

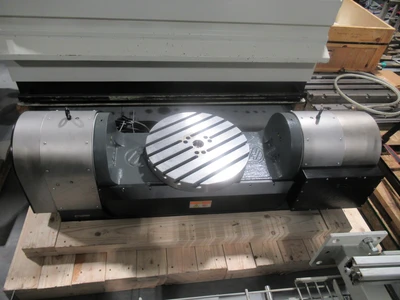

USED 2023 HAAS TR-310

The Haas TR‑310 Trunnion Rotary Table is a robust dual‑axis CNC trunnion designed to expand vertical machining centers into full 5‑axis machining platforms. With a large 310 mm platter and heavy‑duty construction, the TR‑310 allows shops to accurately machine complex, multi‑sided parts in a single setup. Designed for seamless integration with Haas vertical machining centers, the TR‑310 delivers high positioning accuracy, repeatability, and rigidity for demanding applications. It is an excellent solution for manufacturers requiring efficient indexing, contouring, and simultaneous 5‑axis motion without sacrificing floor space or spindle access.

Platter Diameter:: 500 mm (19.685")
A Axis (Tilt) Max Speed:: 50 °/sec
Max Weight on Platter:: 500 Lbs.
A Axis (Tilt) Max Torque:: 300 ft-lbf
A Axis (Tilt) Gear Ratio:: 1000 ft-lbf
A Axis (Tilt) Center Height:: 72:1
B Axis (Rotary) # of Heads / Platens:: 1
B Axis (Rotary) Max Speed:: 50 °/sec
B Axis (Rotary) Max Torque:: 300 ft-lbf
B Axis (Rotary) Nose or Platen:: Platen
B Axis (Rotary) Gear Ratio:: 72:1
Max Part Swing:: 31" Diameter

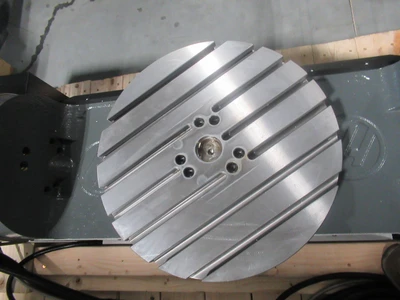

Brushless Sigma 7 (P19) Drive Motor, 500 mm (19.685") Tee Slotted Work Platen, Rotary Axis Feedback Scale, Cables and Connectors, Operator Manual
