USED BPM BX16G

Manufacturer Info
Bay Plastics Machinery manufactures industrial strand pelletizers, recycling systems, and plastics processing equipment for extrusion and compounding applications. Their pelletizers are designed for precision cutting of plastic strands into uniform pellets for plastics manufacturing, recycling, and reclaim operations.
Description

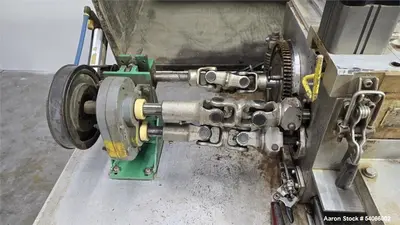

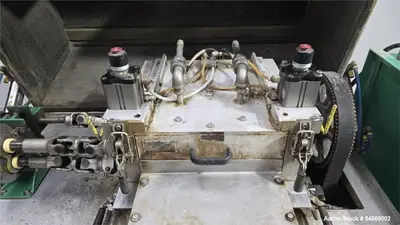

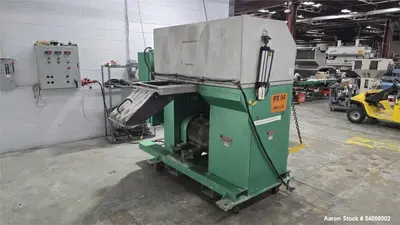

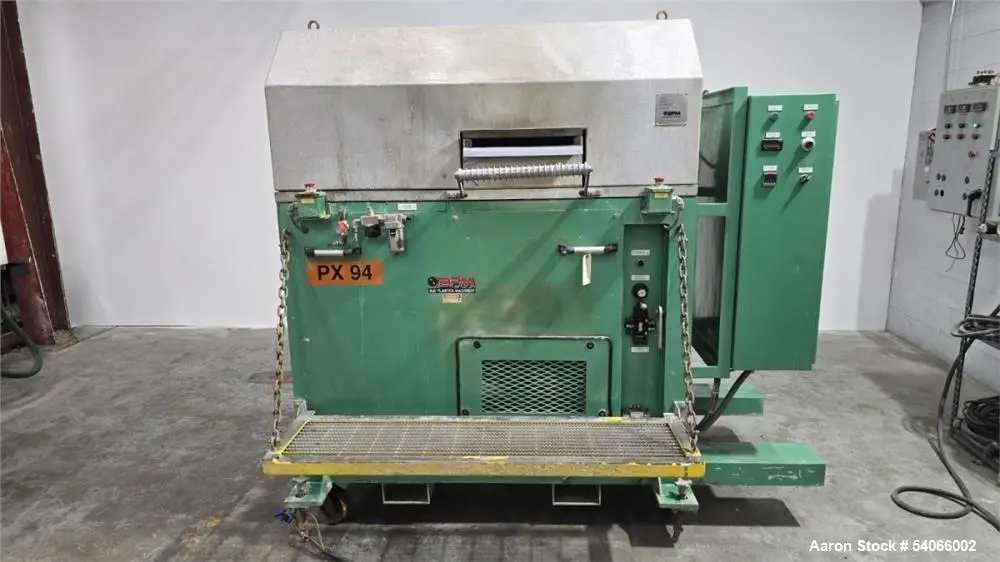

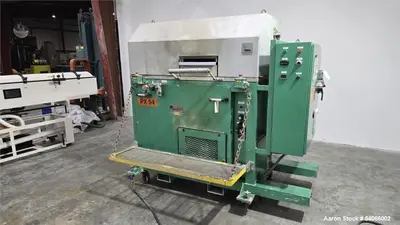

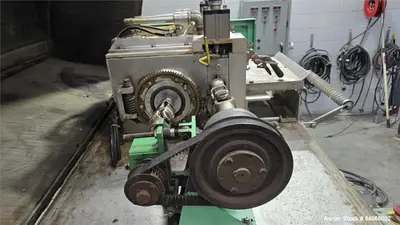

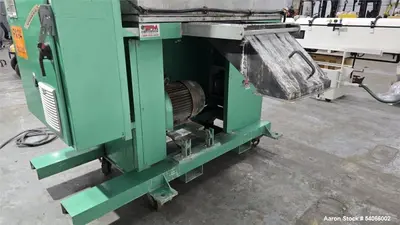

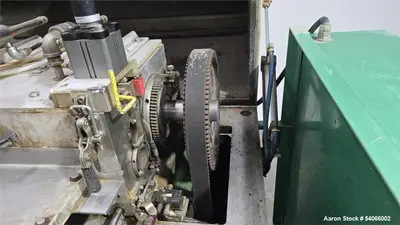

Used Bay Plastics Machinery strand pelletizer, model BX16G, featuring a 16" (400 mm) feed width and powered by a 30 HP Toshiba AC motor with ABB variable frequency drive controls. Unit is equipped with a 12" (300 mm) Stellite-tipped rotor operating at 698 RPM, with 260 RPM feed speed. Includes pneumatic cutting housing lift, tool-less cutting chamber entry, safety interlock system, slide-out discharge, Red Lion digital rotor RPM readout, and West 6100+ temperature controller. Mounted on casters for portability. Approximately 12,848 operating hours indicated on meter.
Specifications

Manufacturer: Bay Plastics Machinery
Model: BX16G
Type: Strand Pelletizer
Feed Width: 16" (400 mm)
Infeed Height: 65"
Rotor Diameter: 12" (300 mm)
Rotor Type: Stellite-Tipped
Rotor Speed: 698 RPM
Feed Speed: 260 RPM
Lower Feed Roll Diameter: 4.25"
Upper Feed Roll Diameter: 2.25"
Motor:

30 HP Toshiba AC Motor
286T Frame
TEFC

Electrical:

460 Volt
3 Phase
60 Hz
37.5 Amps

Drive:

ABB ACS550 Variable Frequency Inverter Drive

Controls & Features:

ABB Drive Control Panel
Safety Interlock System
Tool-less Cutting Chamber Entry
Slide-Out Discharge
Pneumatic Cutting Housing Lift
Start/Stop Buttons
Red Lion Digital Rotor RPM Readout
Speed Potentiometer
West 6100+ Temperature Controller
Temp Controller On/Off Toggle Switch

Mounting: Casters
Approximate Dimensions:

92" Long
64" Wide
87" High

Meter Hours: 12,848
Condition: Used

Applications

Plastic strand pelletizing
Plastic recycling
Extrusion pelletizing
Polymer compounding
Plastic reclaim processing
Masterbatch production
Resin processing
Industrial plastics manufacturing
Thermoplastic pellet production
Continuous extrusion processing

Products This Would Be Used For

Polyethylene pellets
Polypropylene pellets
PVC compounds
Nylon resins
ABS plastic
Engineered plastics
Masterbatch compounds
Thermoplastic elastomers
Recycled plastic strands
Polymer compounds
