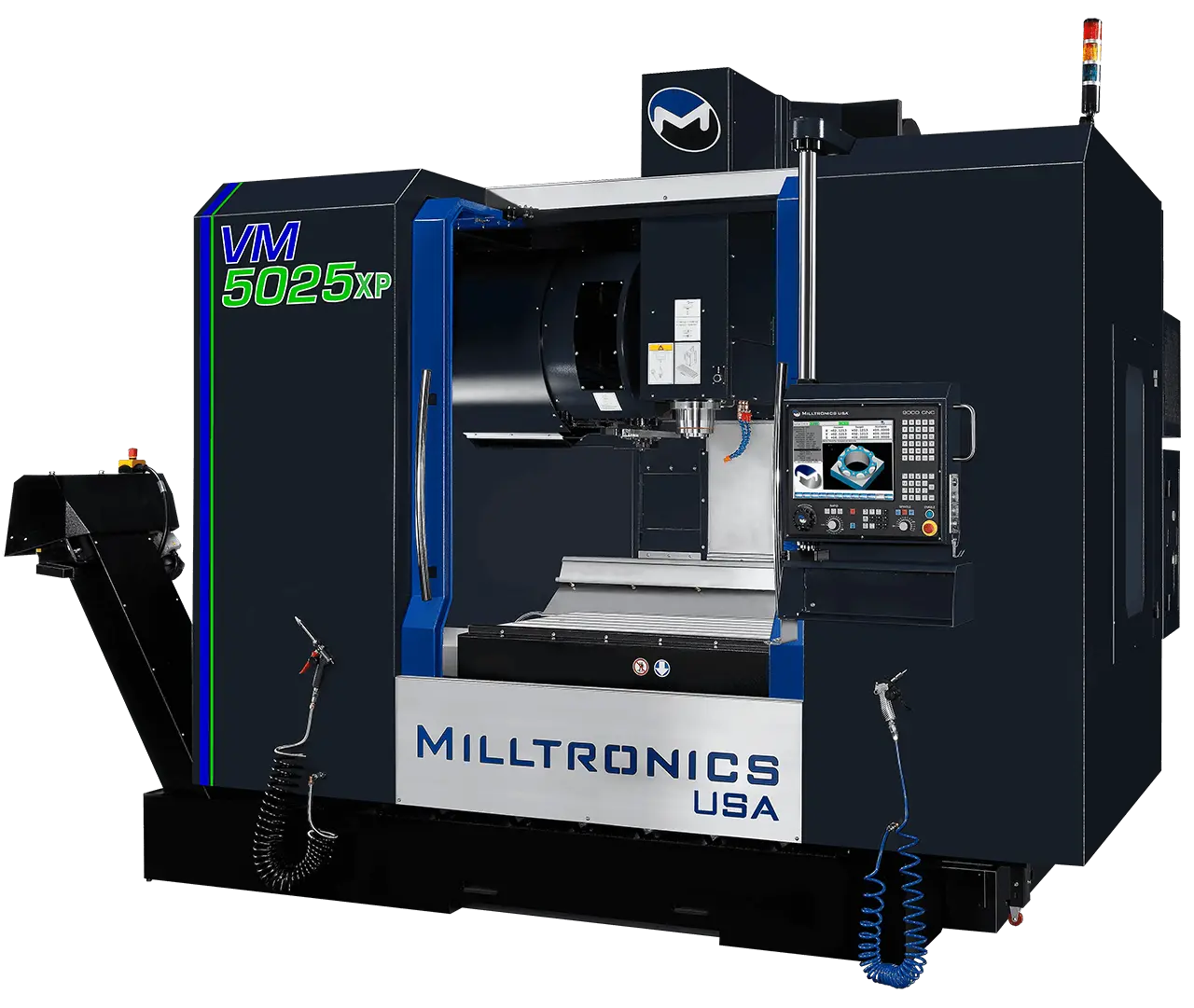

With generous travels of 50″ x 25″ x 24″ and a 54″ x 25″ table, the VM5025XP has a 35 HP dual wound 8,000 RPM spindle that produces 365 ft-lbs of torque.
| X-Axis | 50" | 1,270 mm |
| Y-Axis | 25" | 635 mm |
| Z-Axis | 24" | 609.6 mm |
| Power | 24 hp | 17.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 30 | 30 |
| Taper | #50 – Supports BIG-PLUS® Tools | #50 – Supports BIG-PLUS® Tools |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 3 | 3 |
| Dimensions | 127" x 125" x 121" LWH | 127" x 125" x 121" LWH |
| Weight | 29100 Lbs | 29100 Lbs |
Standard Features
Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
45 mm roller linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
30 pocket double arm ATC
ISO No. 50
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Dual work lights
LCD hour meter
Spindle taper blow-out and tool release
Spare “M” function with CNC “wait” channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
Chip conveyor and washdown chip removal system
Remote handwheel
Air gun
Coolant wash down gun
One Year Warranty
Add-on Options
Coolant through spindle system
Programmable spray mist coolant
Tool and part probes
4th axis options
Auxililary industrial grade keyboard
Electronic spindle chiller
BT style tooling
ChipBossTM Trochoidial Milling Software
Milltronics Shop View
Digital Setup Assistant
