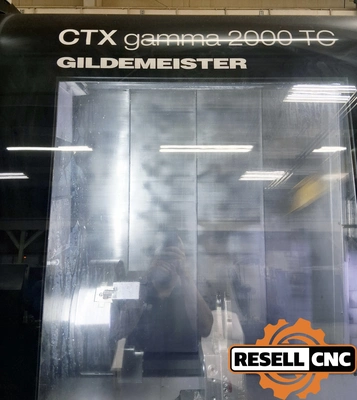

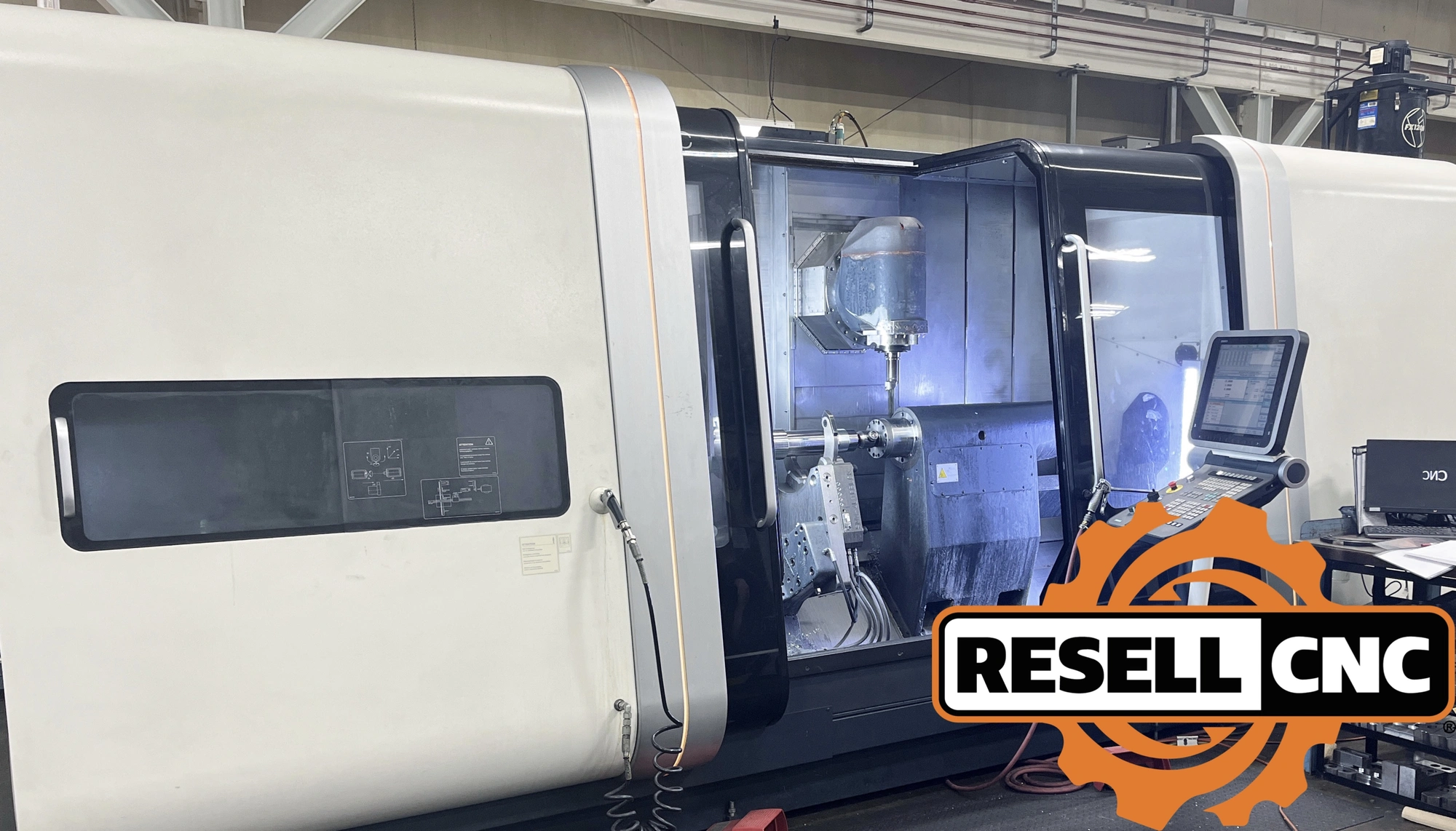

USED 2013 DMG Mori CTX Gamma 2000 TC
Specs
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Maximum Workpiece Diameter 27.6"
Maximum Workpiece Length 78.74"
Y1 Travel +/-7.87"
Z2 Travel 75.19"
Z3 Travel 75.19"
Bar Capacity: 4.1
B Axis: true
B Axis Travel: Main Spindle: +/- 0.001 Degrees
C Axis: true
Chip Removal: Chip Conveyor

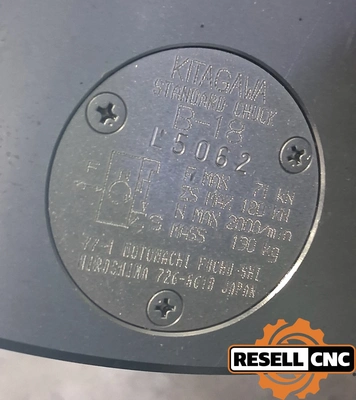

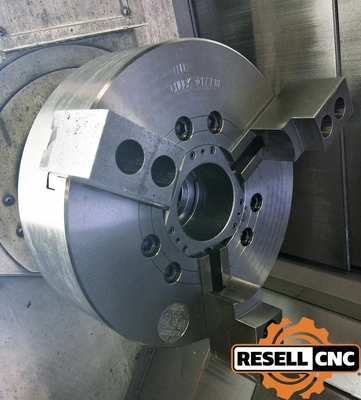

Chuck Description: 3-Jaw
Chuck Size: 16.0
Chuck Type: Hydraulic
Control Make Model: Siemens SINUMERIK 840D
Coolant Type S: High Pressure Coolant
Distance Between Centers: 78.0
Live Milling Hp: 43
Live Milling Max Rpm: 8,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Mist Collector
Max Cutting Turning Diameter: 27.6
Max Swing Over Bed: 35.0
Probe Make Model: Renishaw MP700 Probing
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 70
Spindle Speed: 2500.0
Sub Spindle: false
Tailstock: true
Tool Positions: 110.0
Total Spindles: 1
Turret Options: Tooling: Capto C6
Twin Turret: false
X Travel: 25.59
Y Axis: true
Z Travel: 80.7
