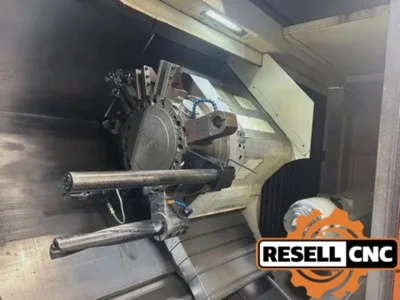

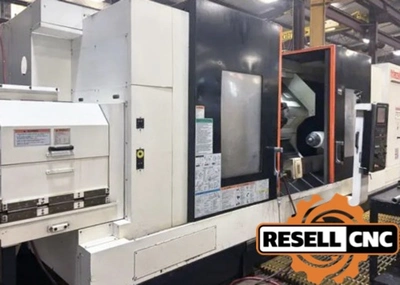

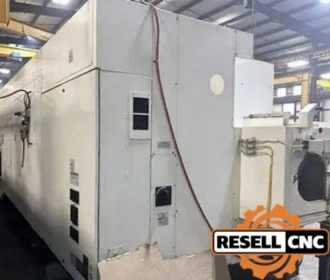

USED 2011 Mazak Slant-Turn Nexus 550M

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: EIA Option

Additional Machine Specs: Rear Chuck Prep

Bar Capacity: 12.5
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

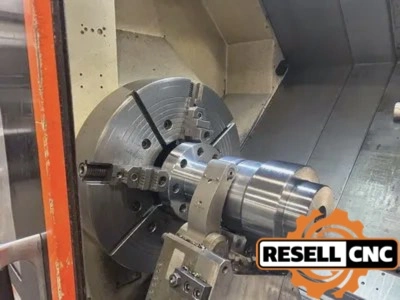

Chuck Size: 24.0
Chuck Type: Air
Control Make Model: Mazatrol Matrix Nexus CNC Control
Distance Between Centers: 80.0
Live Milling Max Rpm: 4000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer
Max Cutting Turning Diameter: 29.0
Max Swing Over Bed: 40.9
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 12.5
Spindle Motor: 60
Spindle Speed: 750.0
Sub Spindle: false
Tailstock: true
Tool Positions: 12.0
Twin Turret: false
X Travel: 18.25
Y Axis: false
