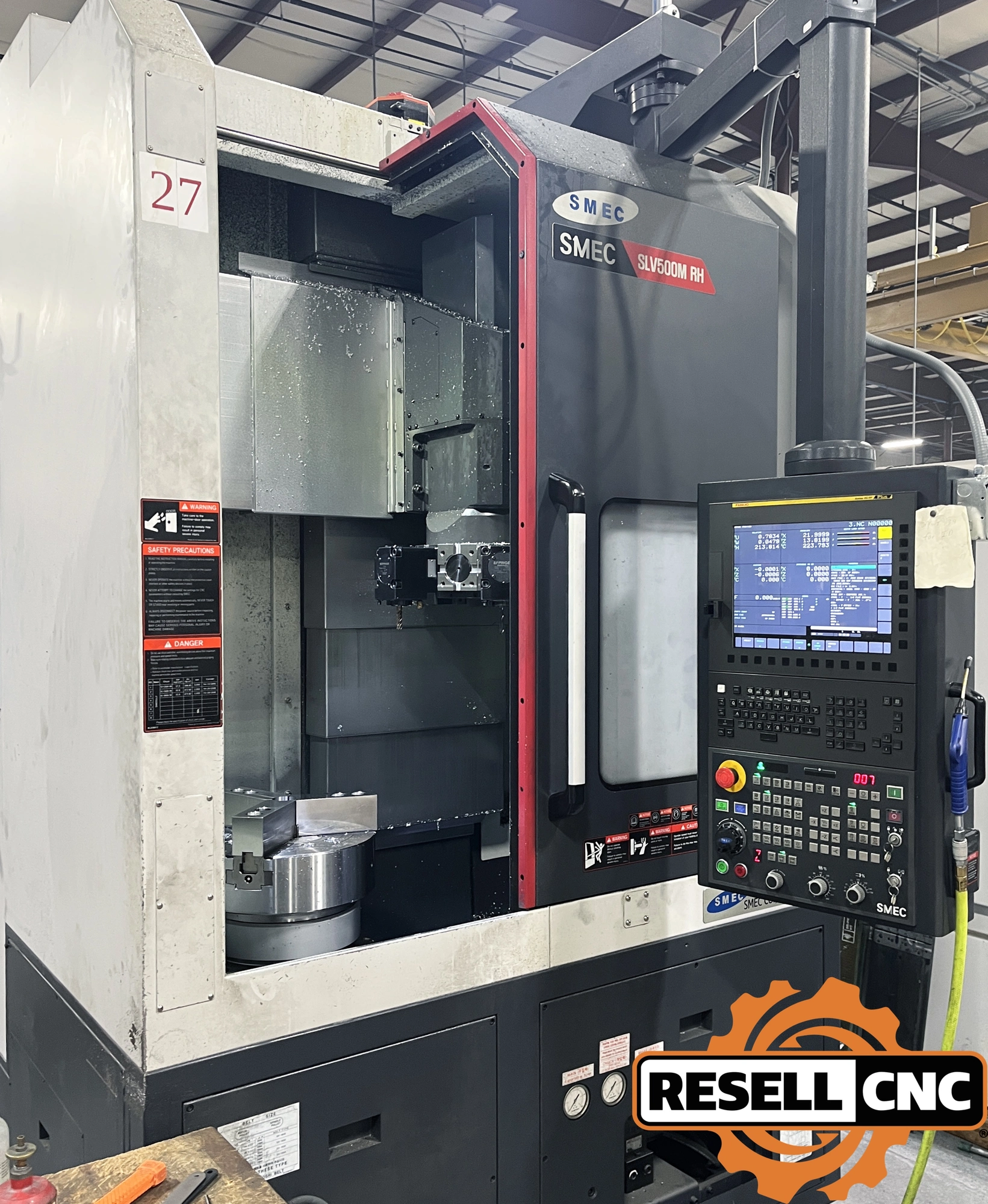

USED 2023 SMEC SLV500M RH

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Maximum Milling Diameter: 18.66"

Rotary Tool Speed: 5,000 RPM

Rotary Tool Motor: 5/7.5 HP

Master Top Hard Jaws

(3) Sets of Soft Jaws

Static Turret Tool Holders - (4) Turning, (2) Boring

(2) Axial Live Tool Holders

(2) Radial Live Tool Holders

Oil Skimmer

Bar Capacity: 2.0
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Description: Samchully 3 Jaw Chuck

Chuck Size: 15.0
Chuck Type: Hydraulic

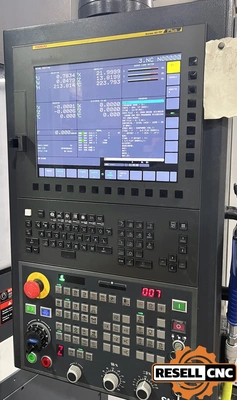

Control Make Model: Fanuc 0i-TF PLus CNC Control
Distance Between Centers: 18.31
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 19.68
Max Swing Over Bed: 27.55
Max Swing Over Cross Slide: 15.74
Max Turning Cutting Length: 18.31
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.36
Spindle Motor: 25
Spindle Nose: A2-8
Spindle Speed: 3000.0
Sub Spindle: false
Tailstock: false
Tool Positions: 12.0
Twin Turret: false
X Travel: 12.48
Y Axis: false
Z Travel: 19.48
