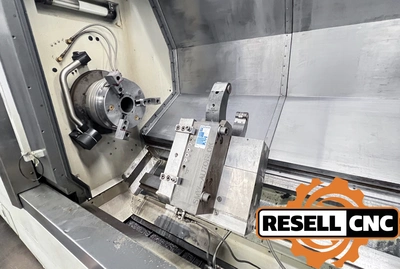

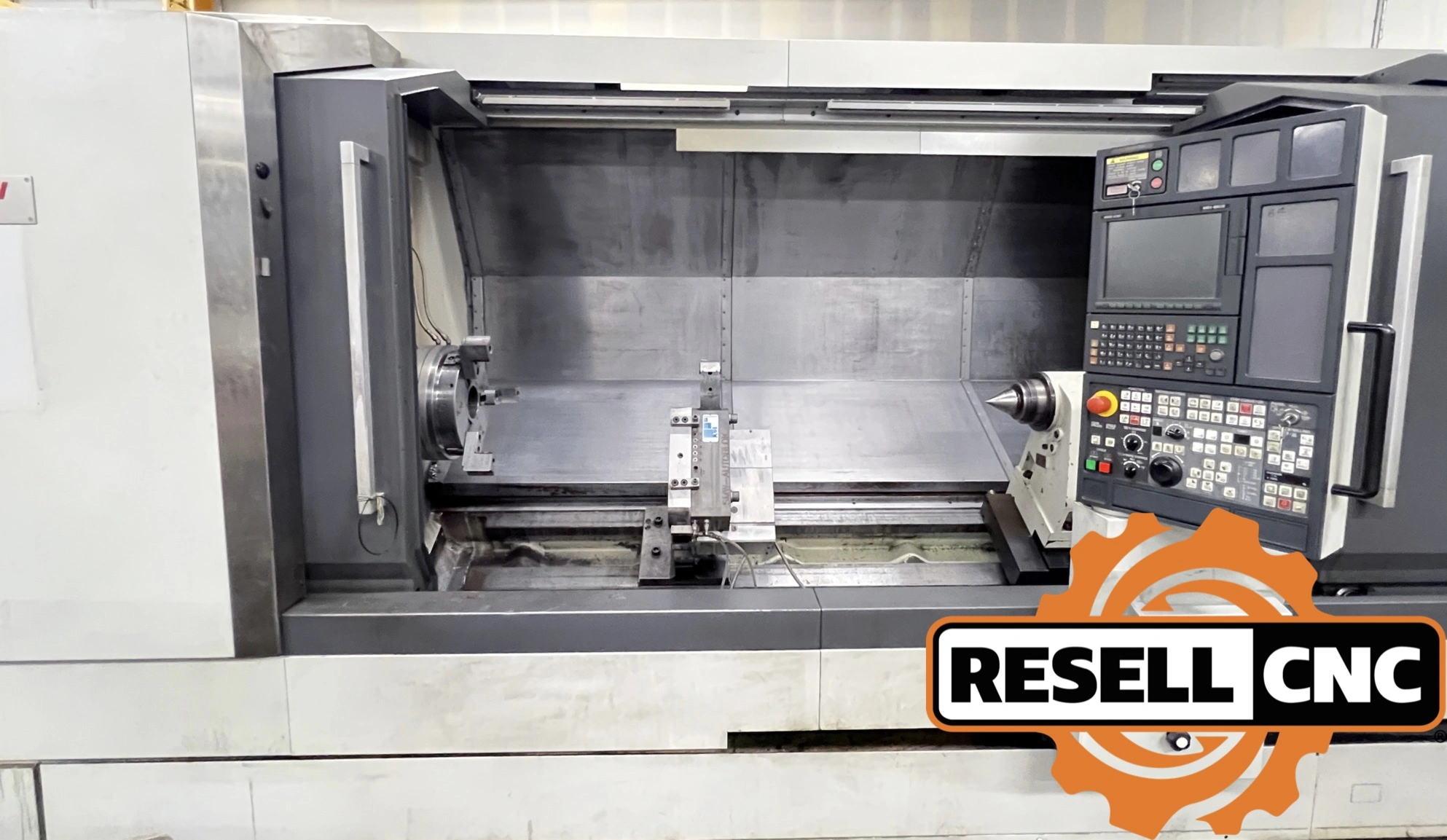

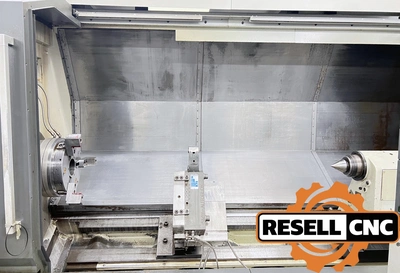

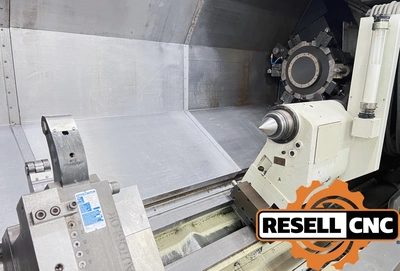

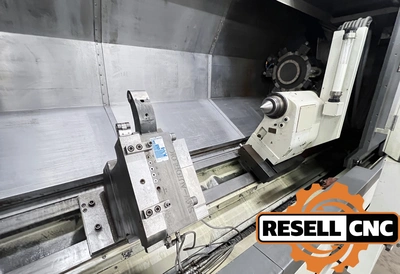

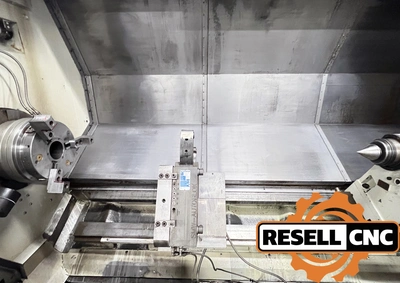

USED 2007 Mori Seiki NL3000Y/3000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Y-Axis Travel: 4.7"

C-Axis Index: .001"

(2) Live Tools

Large Quantity of Live Tooling

SMW Hydr. Auto-Blok Steady Rest

Autuator

SMW Autoblok Slub-4-ZS



**Manual chuck in photo is not included.**

Bar Capacity: 3.54
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: 3-Jaw Chuck

Chuck Size: 13.0
Chuck Type: Air
Control Make Model: Mori Seiki MSX-850 II CNC Control
Distance Between Centers: 120.0
Electrical: 220V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter
Max Cutting Turning Diameter: 16.5
Max Swing Over Bed: 39.17
Max Swing Over Cross Slide: 32.48
Max Turning Cutting Length: 122.9
Programmable Tailstock: false
Rapid Traverse: 1181
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.1
Spindle Motor: 35
Spindle Nose: A2-8
Spindle Speed: 3000.0
Steadyrest Capacity: 9.65
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true
Tool Positions: 12.0
Turret Max Rpm: 6000
Twin Turret: false
X Travel: 11.03
Y Axis: true
Z Travel: 122.9
