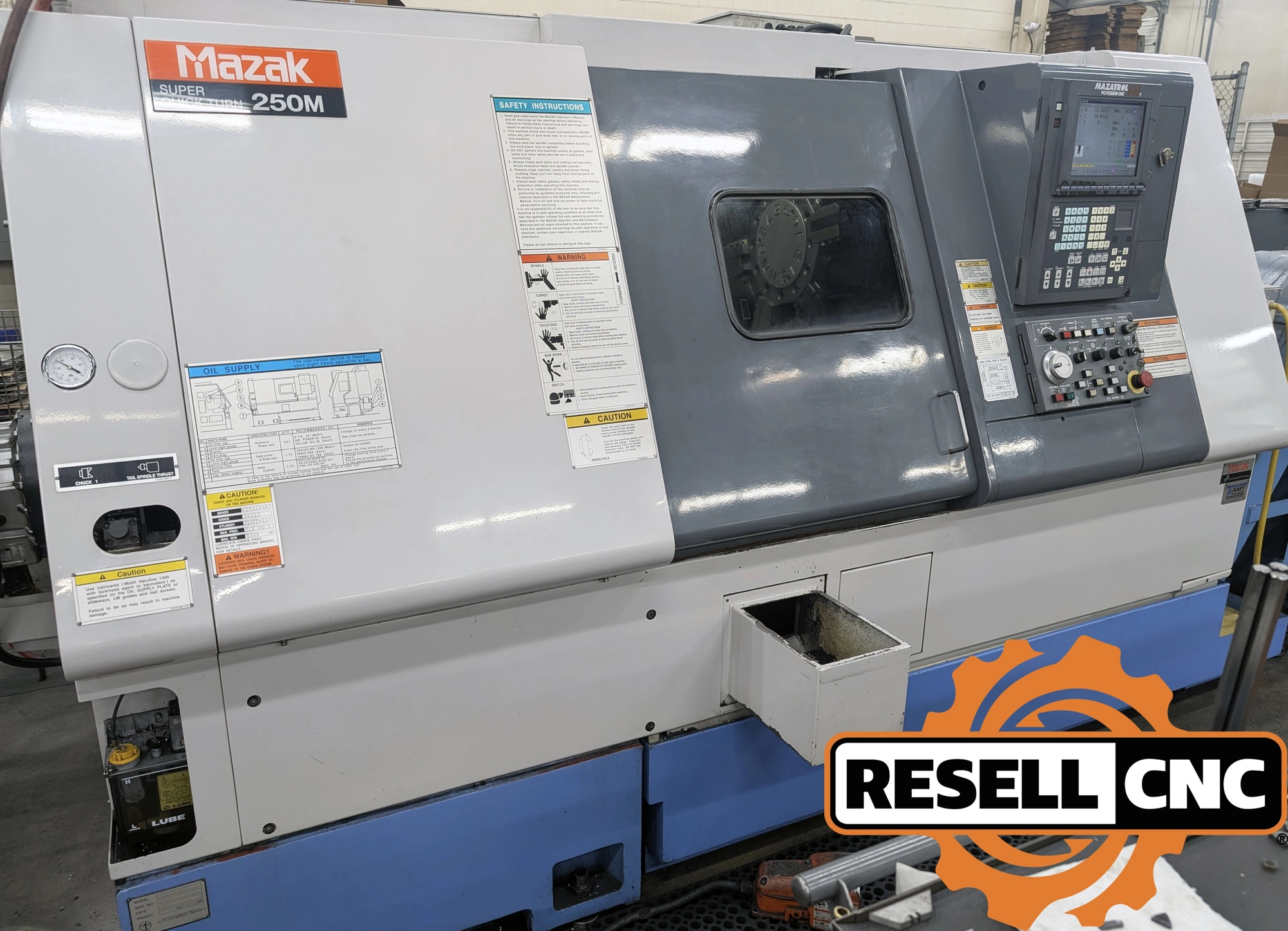

USED 2003 Mazak SQT-250M

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

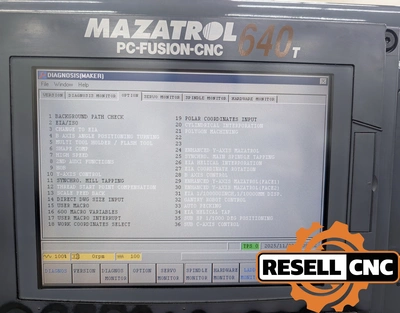

Additional Control Options: Direct DWG Size Input

600 Macro Variables

User Macro Interrupt

Work Coordinates Select

Polar Coordinates Input

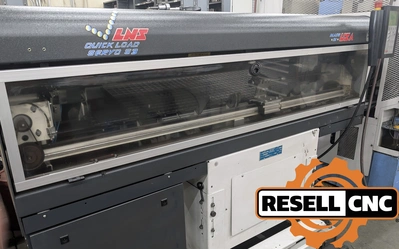

Additional Machine Specs: 48" Barfeeder

Bar Pushers: .500", 1.000"

Bar Tube Sizes: 2.125/2.000/1.625/1.250/1.000/.750/ 9/16 hex steel & hex poly

Live Tooling: V & H type holders available and quantity is flexible

Bar Capacity: 3.0
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor

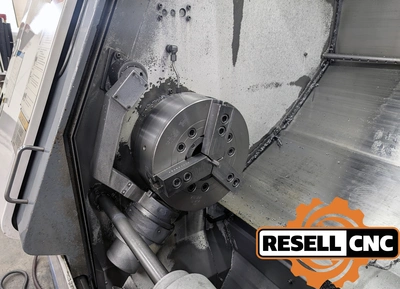

Chuck Size: 12.0

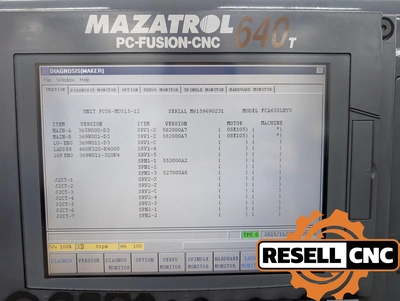

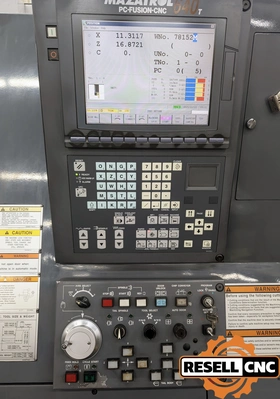

Control Make Model: Fusion 640t CNC Control
Control Options: Synchronized Tapping, Macros, EIA/ISO Code Input Function
Distance Between Centers: 19.69
Electrical: 230V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 13.78
Max Swing Over Bed: 20.67
Max Turning Cutting Length: 19.69
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Tool Positions: 12.0
Twin Turret: false
X Travel: 8.07
Y Axis: false
Z Travel: 20.08
