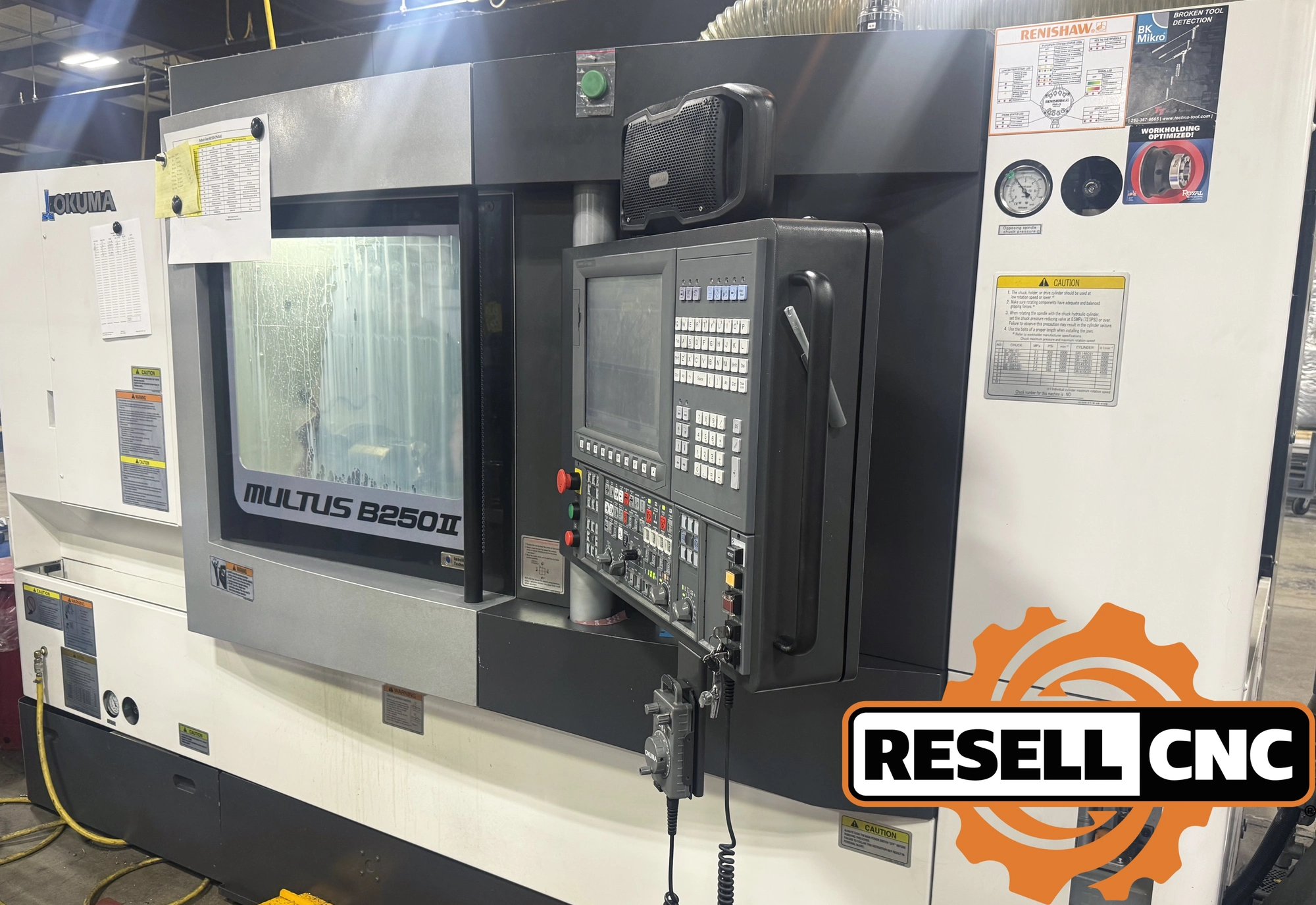

USED 2022 Okuma Multus B250W-II/750

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Inspection Plus GUI

Common Variables, 1000 Sets

Negative Tool Radius Compensation

Additional Machine Specs: B-Axis Swivel Range: 225 Degrees (0.001° Increment)

Y-Axis Travel: 7.87 inch

W-Axis Travel (Sub-Spindle): 31.89 inch

Coolant System: VR8 High-Pressure 480V Coolant Pump

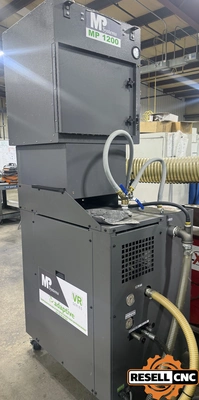

Mist Collector: MP 1200 480V Pump-Mounted System

Touchsetter Manual

Cylinder SS1770 and Drawtube for BB208-A6

Touch Sensor Gauging Interface

Bar Capacity: 2.6
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Control Make Model: Okuma OSP-P300LA CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 29.53
Live Milling Max Rpm: 12000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 23.62
Max Swing Over Bed: 23.62
Max Turning Cutting Length: 29.53
Probe Make Model: Renishaw RMP600
Programmable Tailstock: false
Rapid Traverse: 1024/1575
Second Spindle Motor: 15
Second Spindle Speed: 6000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 30
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 60.0
Twin Turret: false
X Travel: 16.5
Y Axis: true
Z Travel: 31.5
