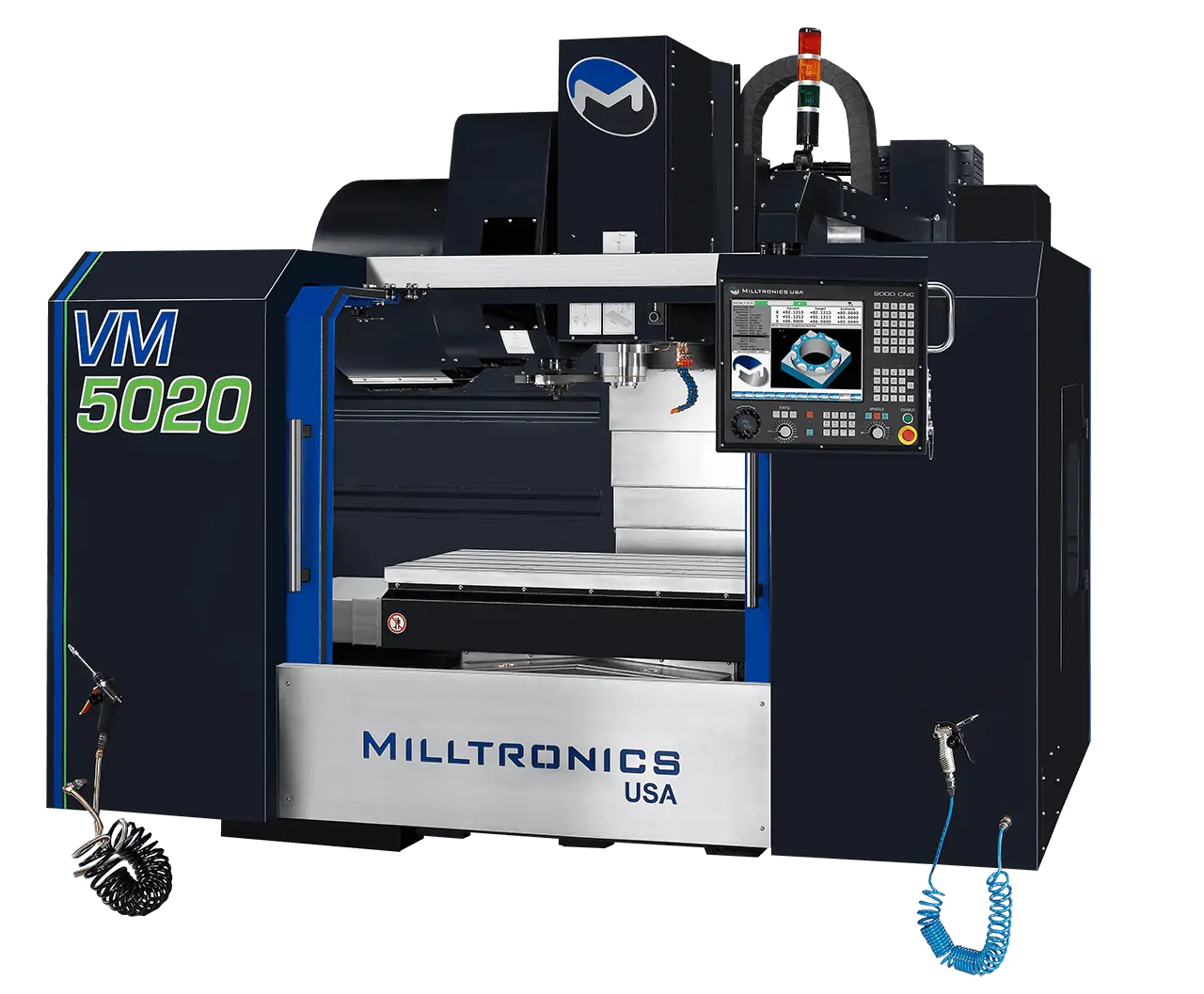

For only a few dollars more than the VM4020, the VM5020 CNC mill adds 10″ more X-travel. With a 52″ x 20″ table and travels of 50″ x 20″ x 20″ this machine is a great value.
| X-Axis | 50" | 1,270 mm |
| Y-Axis | 20" | 508 mm |
| Z-Axis | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 20 | 20 |
| Taper | ISO 40 BIG PLUS | ISO 40 BIG PLUS |
| Table-W | 20" | 508 mm |
| Table-L | 52" | 1,320.8 mm |
| # Axis | 3 | 3 |
| Dimensions | 130" x 111" x 101" LWH | 130" x 111" x 101" LWH |
| Weight | 9400 Lbs | 9400 Lbs |
Standard Features
Milltronics 9000-DGI CNC
Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
30/35 mm linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
20 pocket double arm ATC
CAT 40
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Work light (right side)
LCD hour meter
Spindle taper blow-out and tool release button
Spare “M” function with CNC “wait” channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
One Year Warranty
Add-on Options
Coolant through spindle system
Part and tool probes
4th axis options
5th axis options
Chip auger chip removal system
Lift up chip conveyor chip removal system
Remote handwheel
Auxiliary industrial grade keyboard
Electronic spindle chiller
Air gun
Coolant wash down gun
Additional work light (left side)
BT style tooling
ChipBoss™ Trochoidial Milling Software
Milltronics Shop View
Digital Setup Assistant
