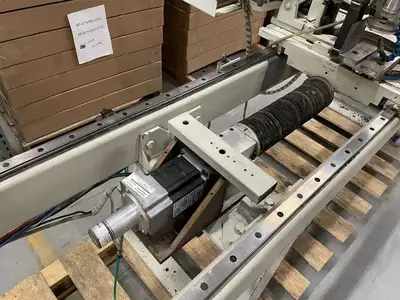

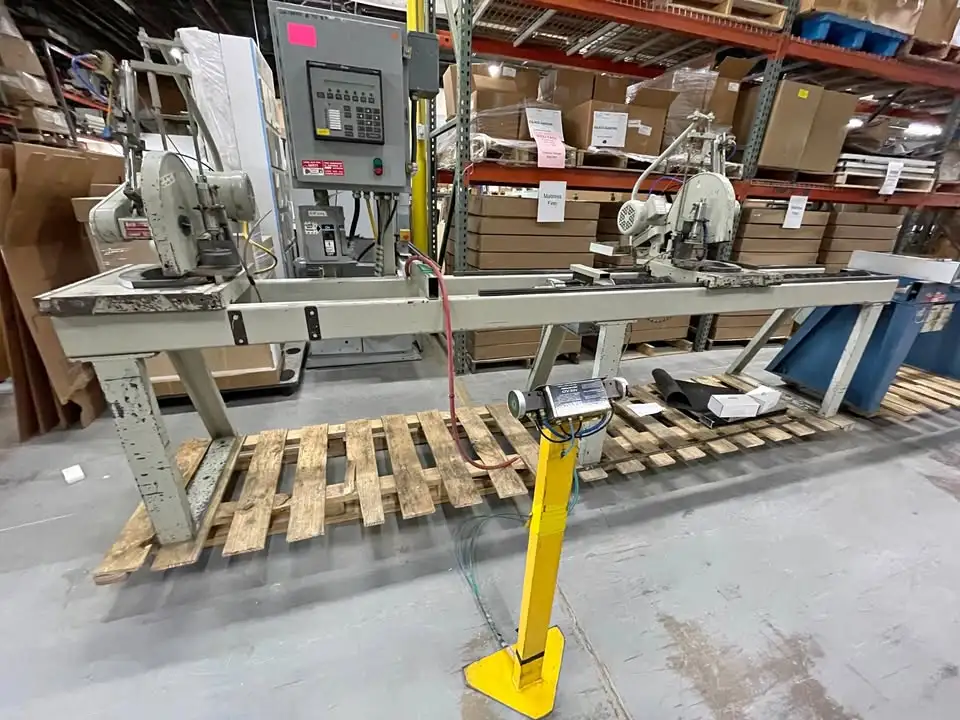

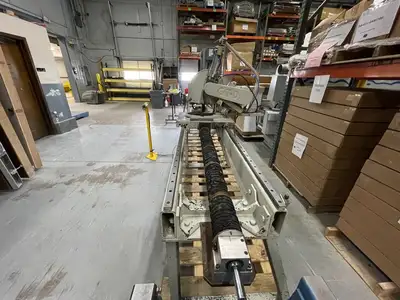

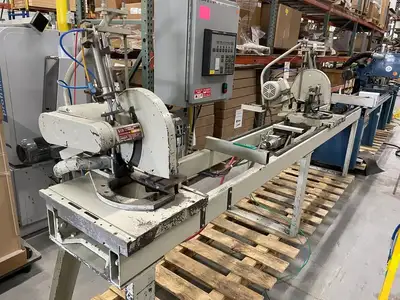

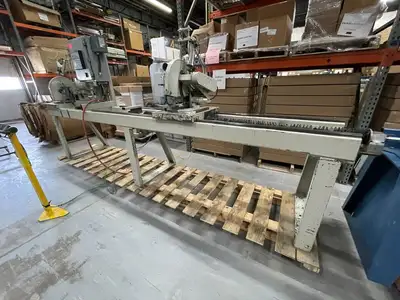

CTD DM 200 Compound Double End Miter Saw

CTD DM 200 Compound Double End Miter Saw

Blade Capacity:                                  12″ Cutting Capacity:                               7-3/4″ W x 2″ H at 90° 4-7/8″ W x 1-1/2″ H at 45° Arbor:                                                  1″ Blade speed:                                      3900 RPM Production rate:                                           Approx. 10 SPM Motors:                                                Two 2 HP; 3,450 RPM Electrics                                               3 Phase, 230/460V motors Approx Dimensions:                          155″ x 35″ x 64″ H Approx Weight:                                  1,050 Lbs Left-Hand fixed & Right-Hand movable heads, with 90° & 45° Positive stops Pneumatic power feed unit blade stroke control Vertical horizontal pneumatic clamp on each head. Saw Carriage Servo Drive PARKER “COMPUMOTOR RP240” Control with LCD Display & Touchpad
