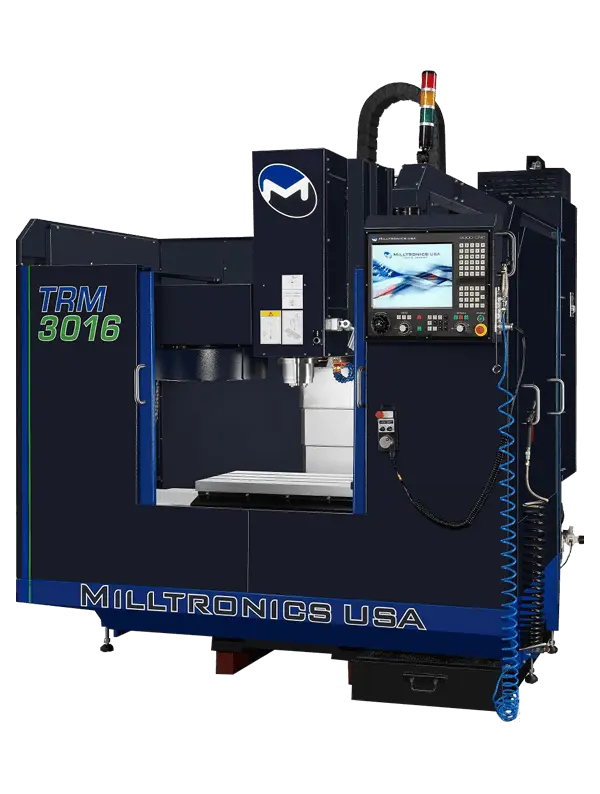

The TRM3016 is a tool room mill that offers large travels, speed and power at a great price. A unique feature of the TRM Series is the “drop down” door openings that allow long part pass through to help accommodate oversize parts.
| X-Axis | 30" | 762 mm |
| Y-Axis | 16" | 406.4 mm |
| Z-Axis | 20" | 508 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | 40 Taper | 40 Taper |
| Table-W | 16" | 406.4 mm |
| Table-L | 35.4" | 899.16 mm |
| # Axis | 3 | 3 |
| Dimensions | 87.9 x 89.2 in Nominal Operating (W x D) 111.3 Height | 87.9 x 89.2 in Nominal Operating (W x D) 111.3 Height |
| Weight | 6835 Lbs | 6835 Lbs |
Standard Features
Milltronics 9000-DGI CNC
X/Y axis metal way cover construction (most models)
Auto lubrication
ISO No. 40
Spindle load meter
Spindle air purge (excluding VK / TRQ models)
Flood coolant
Rigid tapping (excluding VK / TRQ models)
LCD hour meter
One year warranty
Add-on Options
Enclosure top cover
Chip auger
Remote handwheel
Milltronics rotary tables
Renishaw tool and part probes
Programmable spray mist or air blast
Auxiliary keyboard
Extended warranty
Factory start-up and on-site training
Printed manuals (PDF standard)
Milltronics logo floor mat
ChipBossTM Trochoidal Milling Software
Milltronics Shop View (MSV)
Offline DGI software
