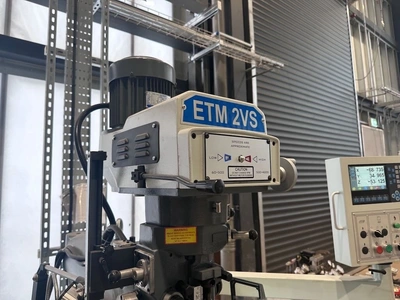

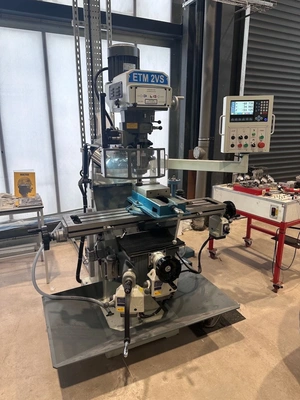

USED 2020 EXCEL ETM 2VS

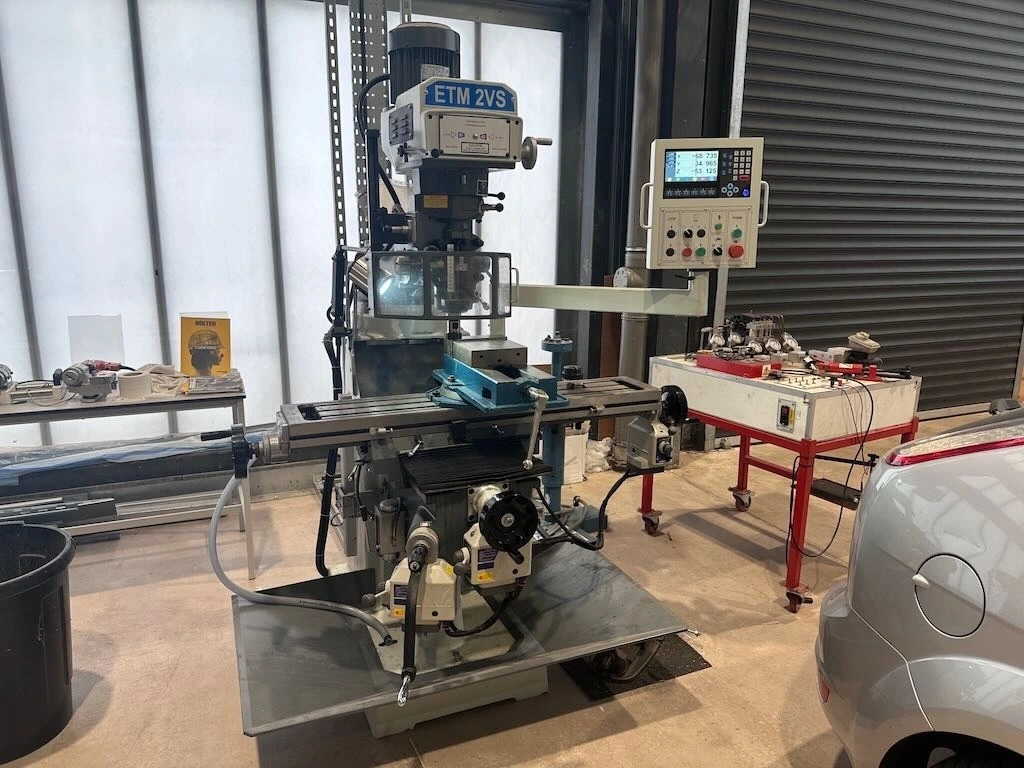

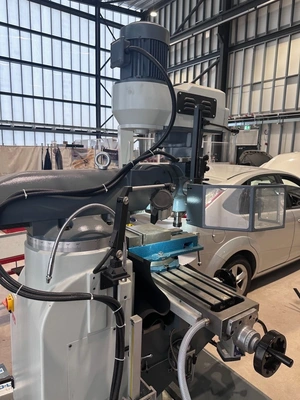

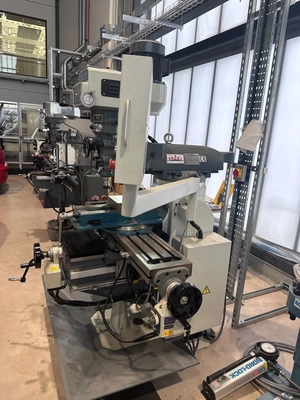

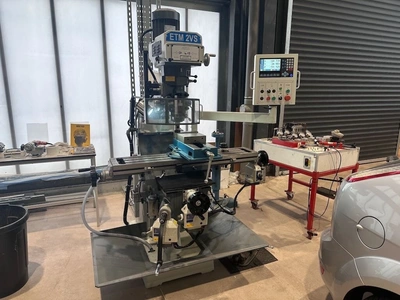

Ex College 2020 Excel ETM 2VS Variable Speed Turret Milling Machine, R8 Spindle Taper, 65 to 4,500rpm Spindle Speeds, 1,246 x 230mm Table, 790mm Longitudinal Travel, 310mm Cross Travel, 390mm Knee Travel, 127mm Quill Travel, 3-Axis DRO, Power Feed to Quill, Servo-Type Table Feeds, One-Shot Lubrication, Coolant System, Electrically Interlocked Spindle Guard and Low-Voltage Machine Light.

Main Specification
Specification Detail

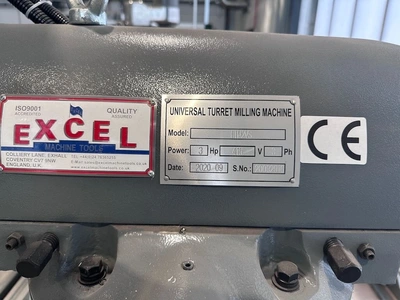

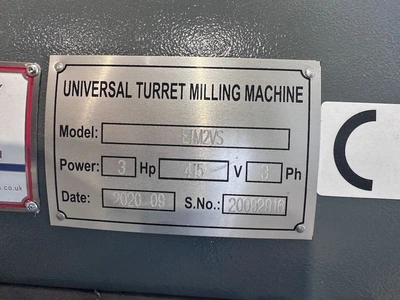

Manufacturer Excel Machine Tools
Model ETM 2VS
Year 2020
Machine type Variable speed turret milling machine
Electrical connection 400V, 3ph, 50Hz
Spindle motor 2.2kW / 3HP
Coolant pump 90W
Spindle taper R8

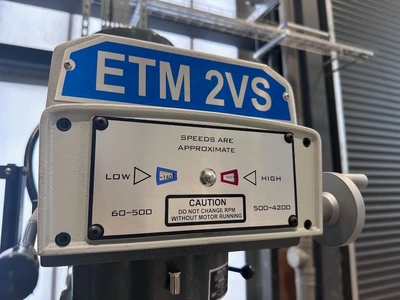

Spindle speeds 65 to 4,500rpm

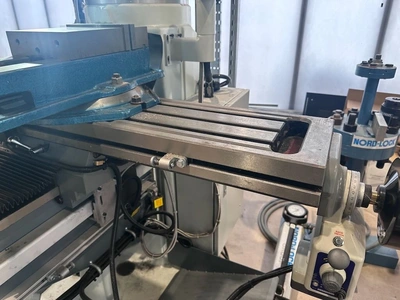

Table size 1,246 x 230mm
T-slots 16mm / 3 slots
Longitudinal table travel 790mm, reduced to approx. 690mm with feed/DRO
Cross saddle travel 310mm, reduced to approx. 270mm with feed/DRO
Knee vertical travel 390mm
Quill travel 127mm
Ram travel 312mm
Quill power feeds 0.04 / 0.08 / 0.15mm/rev
Spindle nose to table 0 to 405mm
Spindle to column 90 to 450mm
Head tilt left/right ±90°
Head tilt front/back ±45°
Approx. dimensions 220 x 160 x 200cm
Approx. weight 1,160kg
The core technical data above is taken from Excel’s ETM 2VS specification sheet and distributor specifications, including the 400V 3-phase supply, 2.2kW/3HP motor, R8 spindle, 65 to 4,500rpm spindle speed range, 1,246 x 230mm table, 127mm quill travel and 1,160kg machine weight.
Feeds
Feed Detail
X-axis longitudinal feed Infinitely variable, 0 to 740mm/min
Y-axis cross feed Infinitely variable, 0 to 730mm/min
Z-axis knee feed Variable, 0 to 280mm/min
Quill feed 3 rates, 0.04 / 0.08 / 0.15mm/rev
The ETM 2VS is listed with servo-type longitudinal, cross and vertical feed with rapid traverse, plus 3-rate power feed to the quill.
Standard Equipment / Features

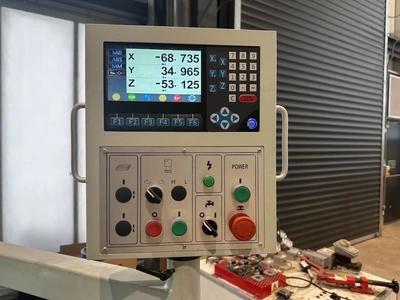

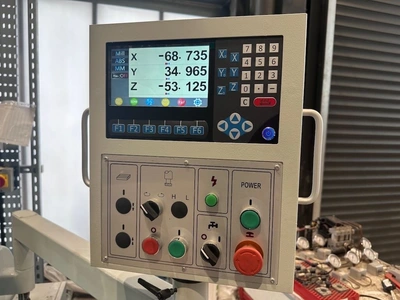

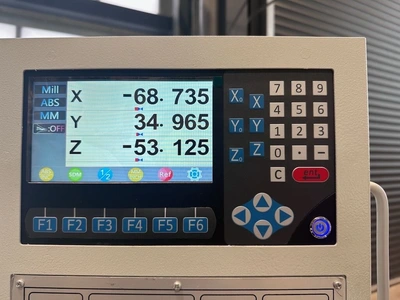

3-axis digital readout
R8 spindle taper
Variable spindle speed

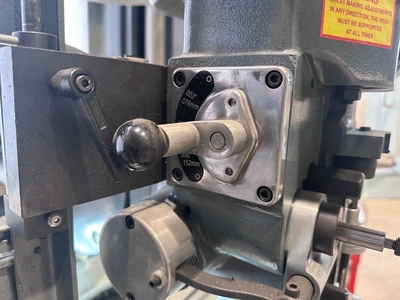

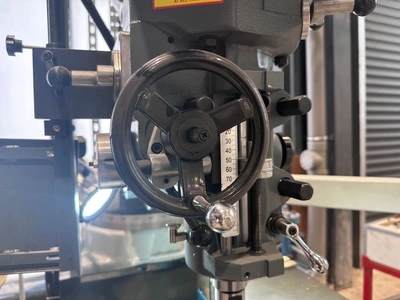

Power feed to quill, 3 rates

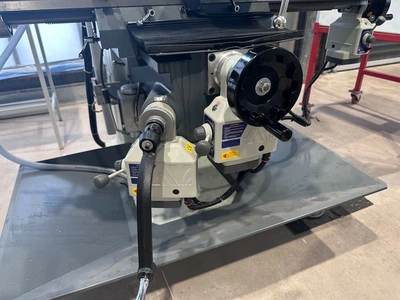

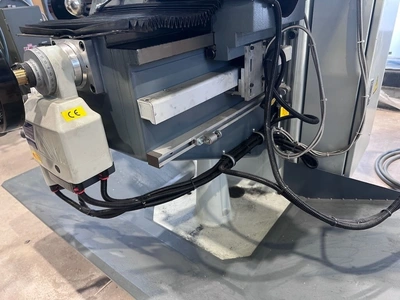

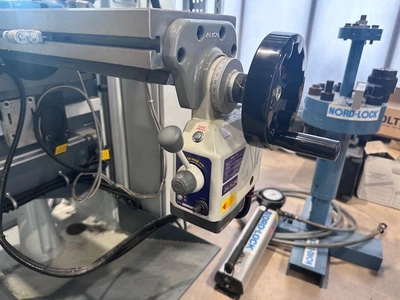

Servo-type longitudinal, cross and vertical feed
Rapid traverse
One-shot lubrication
Coolant system

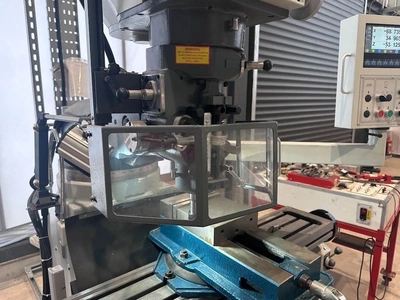

Electrically interlocked spindle guard

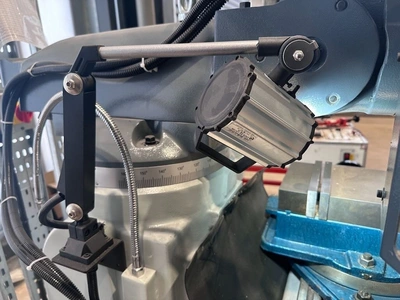

Low-voltage machine light
Hardened slideways

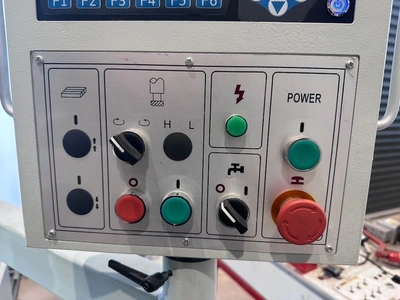

Reversible spindle switch

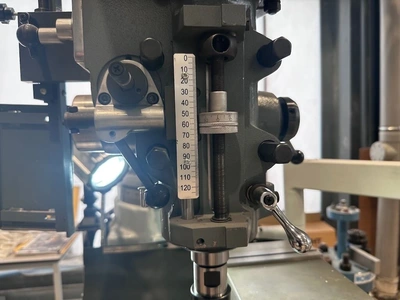

Adjustable depth stop

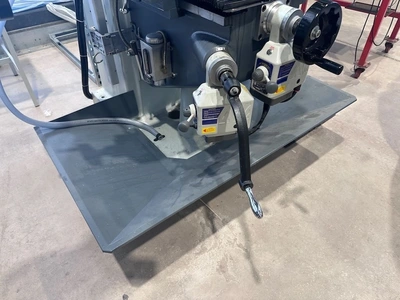

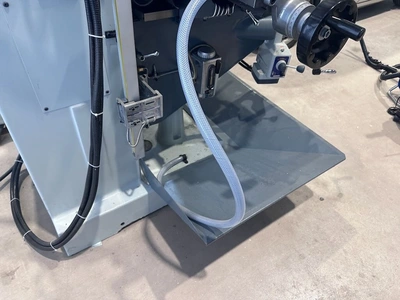

Large base tray
Excel lists the ETM 2VS with one-shot lubrication, coolant system, electrically interlocked spindle guard, low-voltage machine light and 3-axis DRO as standard equipment.
