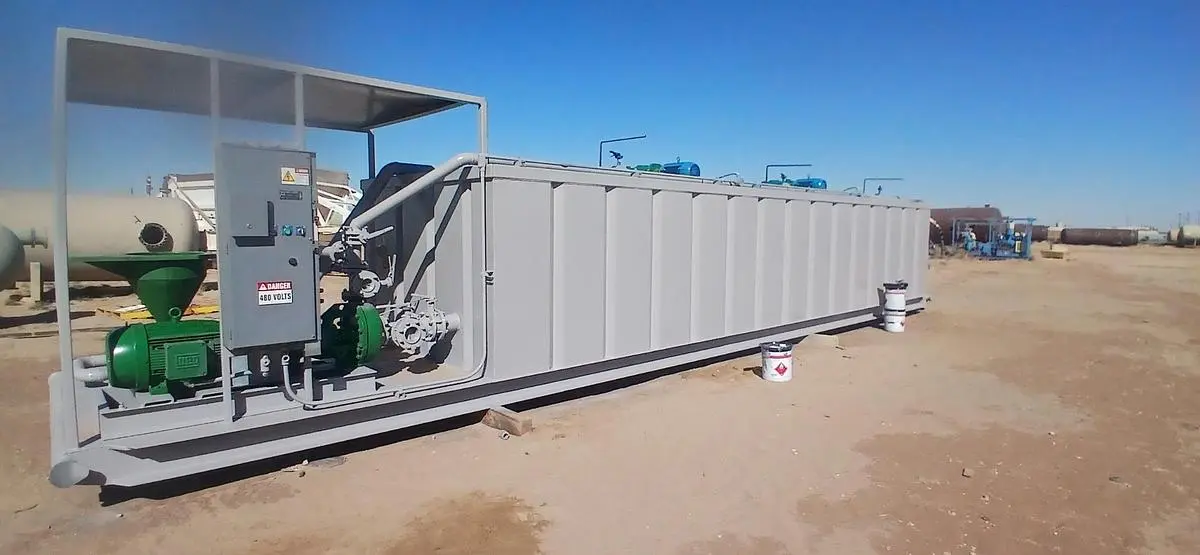

NEW 2025 BX TANK SUPPLY MUD MIX PLANT

New Built 214bbl Mud Mixing Plant – Skid Mounted w/ Porch and Cover
• 214bbl mud mixing capacity
• Tank: 8’ W x 5’ H, 30’ L (skid 7’9” W x 40’ L, 8 x 40 beams, 3-runner skid)
• ¼” plate floor with 3/16” plate crimped walls
• 4” Sch 80 loading pipe
• 4”x4”x¼” square tubing top braces
• 3”x3”x⅜” angle agitator mounting braces
• Schedule 40 piping throughout
• 10’ covered porch with ¼” floor plate
• 1.4 bbl hopper

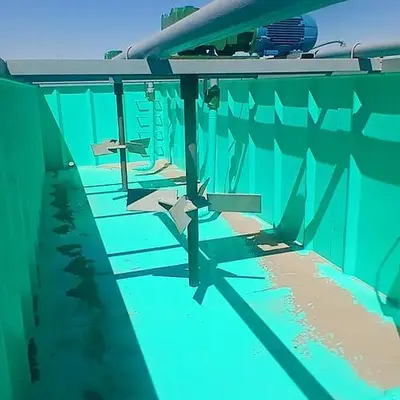

• (2) 10 HP agitators
• (3) 3” swivel mud guns

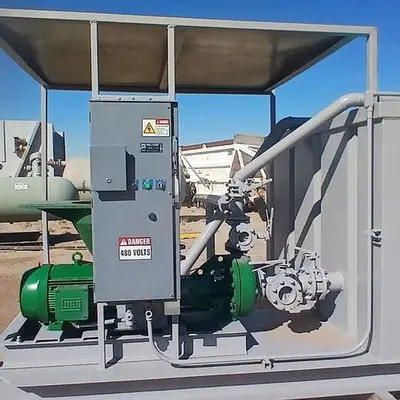

• 40 HP centrifugal pump with explosion-proof motor (3” x 4”)
• Explosion-proof switches & distribution box
• Turnkey — all electrical completed
• Can be painted customer’s preferred color

Our 214bbl mud mixing plant is ideal for oilfield operations, drilling, and fluid management projects. Skid mounted with a covered porch, explosion-proof electrical, centrifugal pump, agitators, and mud guns, it is built fully equipped and turnkey ready. Built with heavy-duty plate steel, 8×40 runner beams, and Schedule 40 piping, this unit is designed for durability in demanding field conditions. Built to order and can be painted to match your company’s colors.
