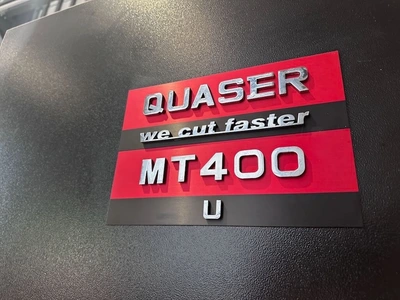

USED 2021 QUASER MT400U

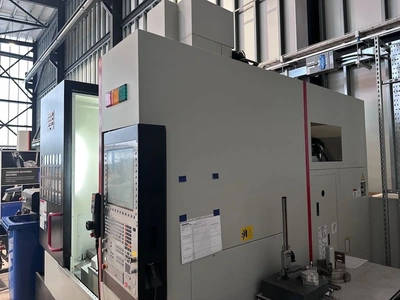

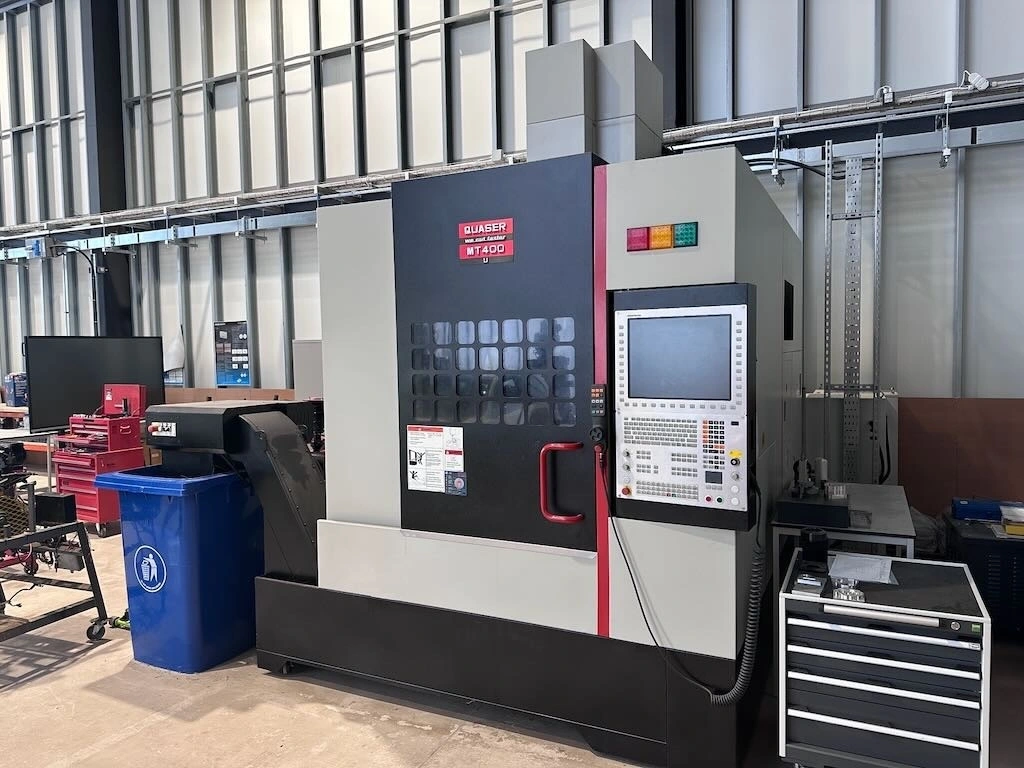

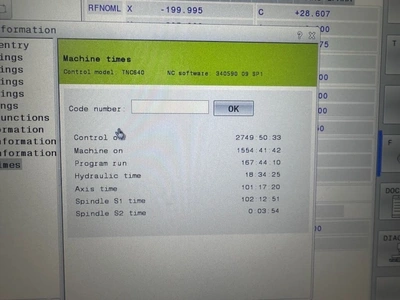

Ex College 2021 Quaser MT400U 5-Axis Mill-Turn Machining Centre fitted with Heidenhain TNC640 control, 12,000rpm spindle and BLUM probing system. The machine has only approximately 101 recorded spindle hours and is supplied with associated cooling, hydraulic and coolant equipment, including twin Habor temperature control/chiller units, HYDAC hydraulic power pack with accumulator, Grundfos coolant pump assembly and auxiliary coolant circulation equipment.

Main Specification
Specification Detail
Machine type 5-Axis Mill-Turn Machining Centre
Year 2021

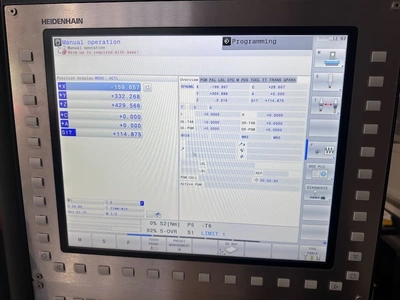

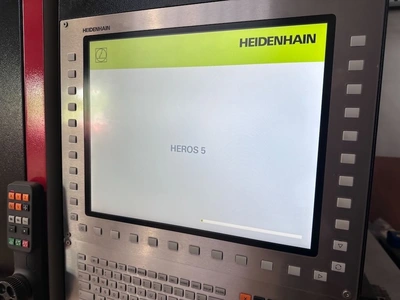

Control Heidenhain TNC640

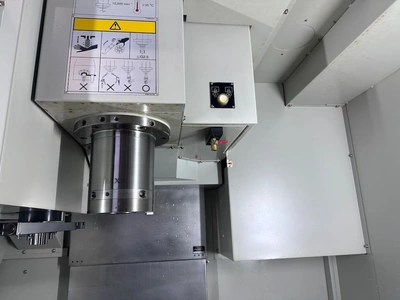

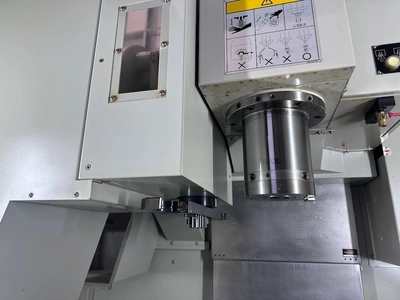

Spindle speed 12,000rpm
Spindle taper/interface HSK A63 / HSK T63 type tooling interface
Table size Ø320mm
Maximum swing Ø400mm
Maximum workpiece size Ø400 x 300mm
Maximum table load 50kg
X-axis travel 410mm
Y-axis travel 610mm
Z-axis travel 510mm
A-axis travel +30° to -120°
C-axis 360° continuous
Turning table speed Up to 1,200rpm
Rapid traverse X/Y/Z 36 / 36 / 36m/min
Coolant tank capacity Approx. 300 litres
Through-spindle coolant 20 bar
Approx. machine weight Approx. 7,360kg
Approx. floor space 3,211 x 2,910mm
Approx. machine height 3,180mm

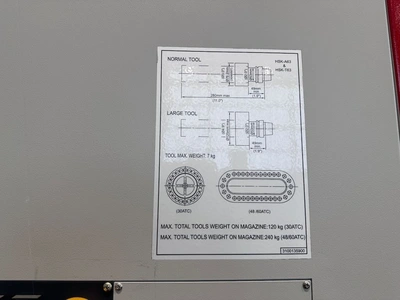

Tooling / ATC

Specification

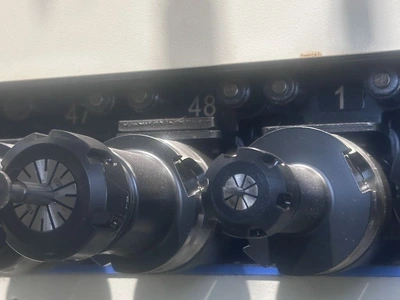

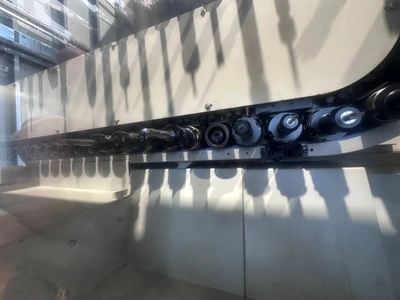

Standard MT400U tool capacity 48 station ATC
Maximum tool diameter Ø76.2mm
Maximum tool diameter with adjacent pockets empty Ø125mm
Maximum tool length 280mm
Maximum tool weight 7kg
Additional Equipment / Features

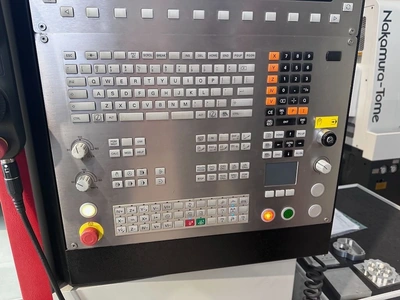

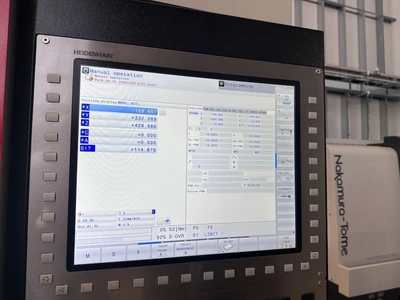

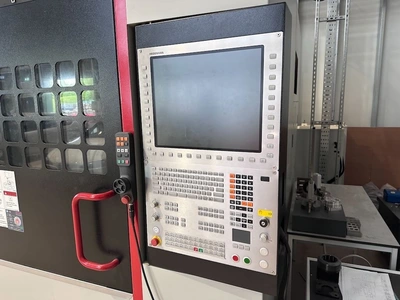

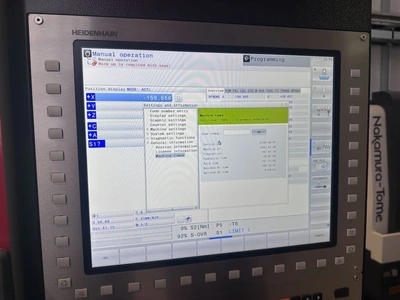

Heidenhain TNC640 CNC control

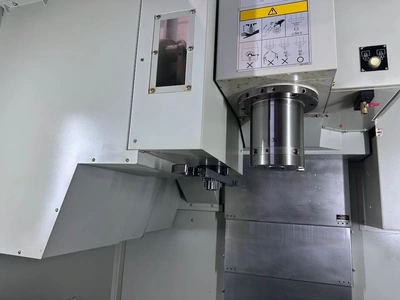

12,000rpm spindle

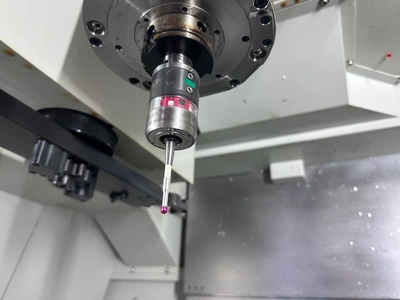

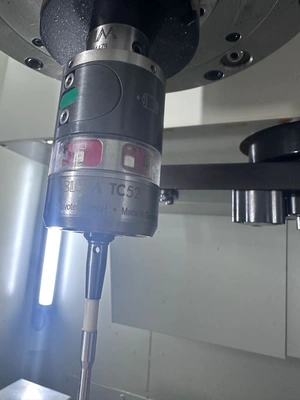

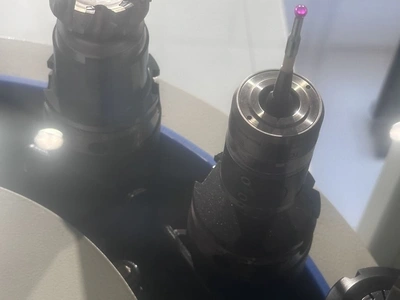

BLUM probing system

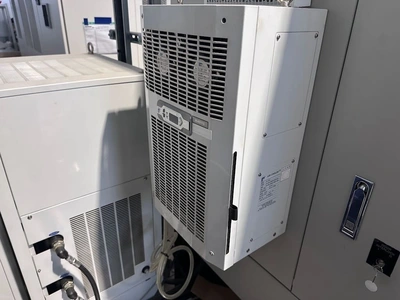

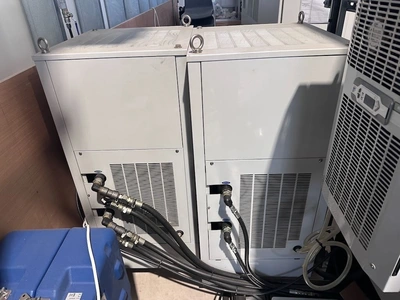

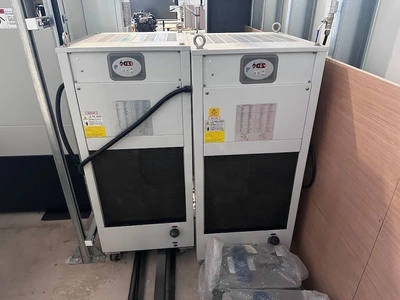

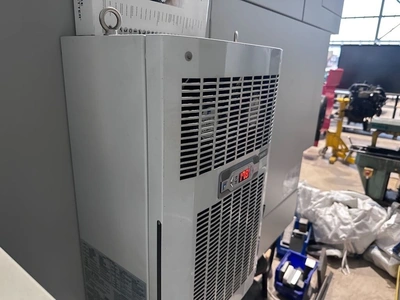

Twin Habor temperature control / chiller units

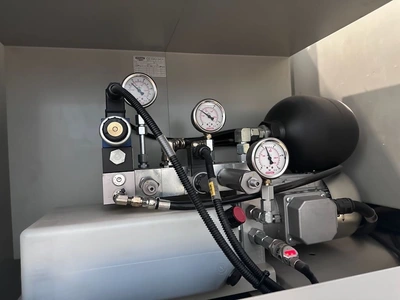

HYDAC hydraulic power pack with bladder accumulator

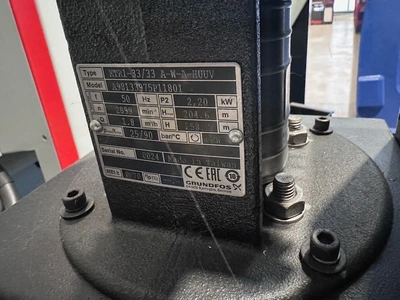

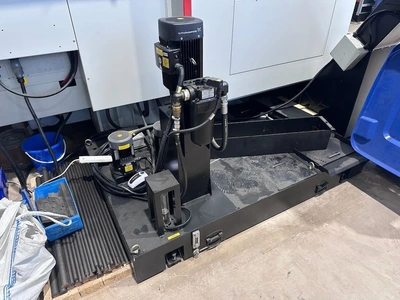

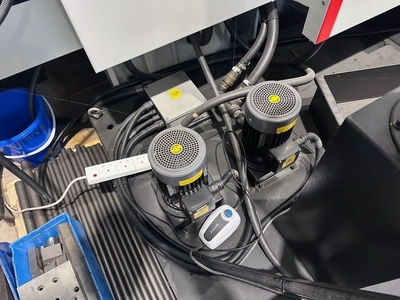

Grundfos coolant pump assembly
Auxiliary coolant / circulation pump equipment
Through-spindle coolant system
Coolant tank and associated filtration/cooling equipment
Hydraulic system with pressure gauges and accumulator

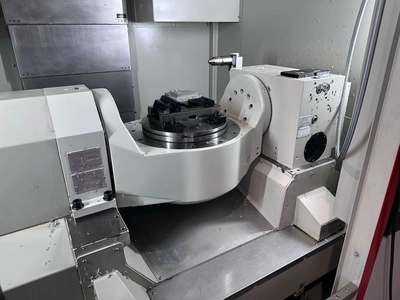

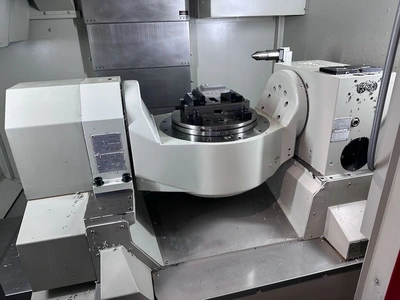

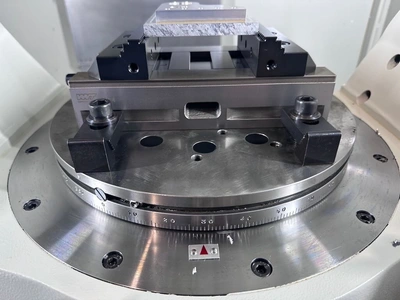

5-axis rotary/tilting table
Mill-turn capability
