NEW EUROMAC XT ELECTRIC S 1500/24-3000

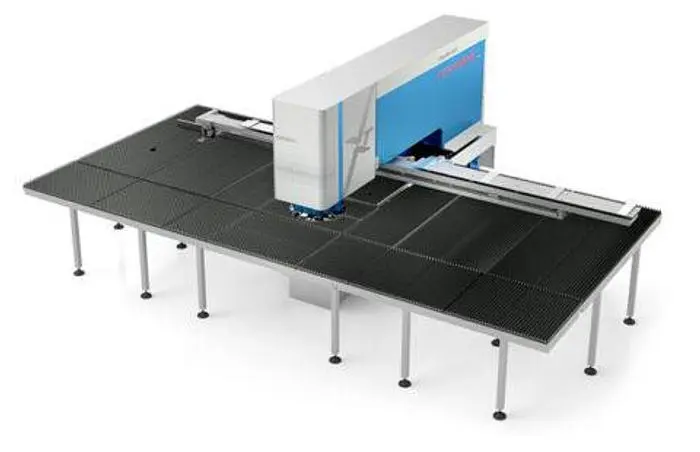

The Euromac XT Electric S 1500/24-3000 is a state-of-the-art CNC sheet metal punching machine designed for precision and efficiency. Equipped with a 12-station turret and a full electric punch, it provides powerful performance with a punching force of 26 US tons. This machine boasts a generous working area of 10x5 feet (3000 x 1500 mm), allowing for large-scale operations without the need for repositioning.

Featuring impressive punching speeds, it can achieve up to 780 strokes per minute for nibbling with a 1 mm pitch and up to 360 strokes per minute for punching with a 20 mm pitch. With dual Y-axis motors and a robust construction, this machine is designed for reliability and long-lasting use. The XT Electric S is equipped with a bi-directional autoindex and active die system, ensuring flexibility and adaptability for various punching requirements.

Despite its substantial punching capability, the machine's dimensions are manageable, with an overall size of 20x15 feet (6200 x 4600 mm) and a weight of 20,500 lbs (9300 kg). This makes it suitable for industrial setups requiring precision and high-throughput sheet metal processing.

MAX. PUNCHING FORCE US TON (KN): 25 (240)
Y-axis ” (mm): 60″ (1500)
Y-axis motors: 2
X-axis ” (mm): 120″ (3000)

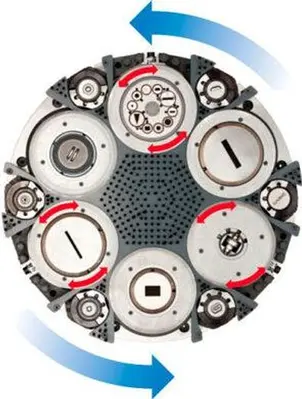

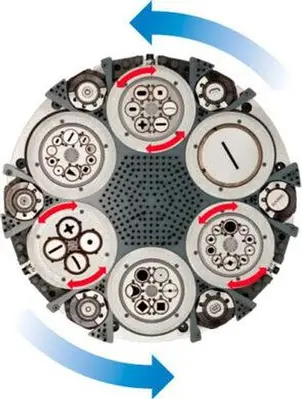

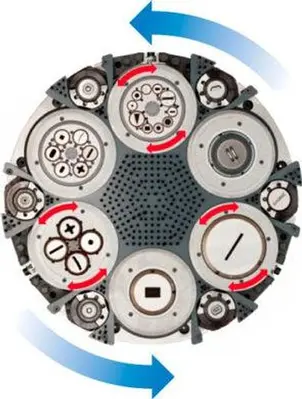

TURRET: 12 Stations / 3 D Bi-directional Autoindex / 3 D Fixed / 6 B with Active Die System
DIMENSIONS: 20′ x 15 ‘ (6200 x 4600 mm) / 20,500 lbs (9300 kg)
