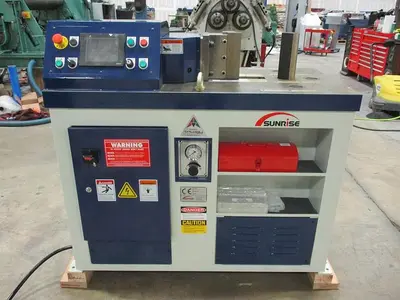

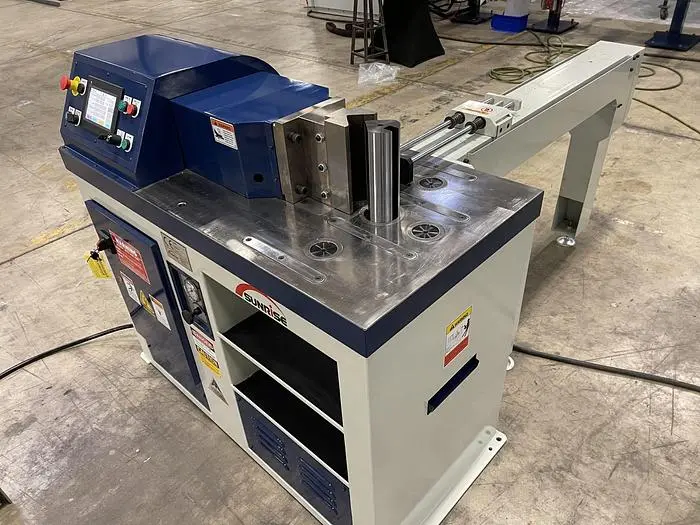

NEW SUNRISE IRONWORKS SUNRISE HBM-45

Capacities
Product Features
45 Ton Ram
10″ Adjustable Stroke
Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
Touch-Screen Controller with 50 Program Memory – 10 Bends per Program
Two-hand Control or Locked Foot-Pedal
Machined One-Piece Top Design – Cylinder Mounted on Top
Multiple Machined Holes for Additional Tooling
Includes 3″ Single-Vee Die and Bending Punch
2-Year Parts Warranty
Description
The SUNRISE hydraulic bending machines, available in either 45 or 82 tons, offer a wide range of tooling for different bending operations. Custom tooling is also available.
SUNRISE horizontal bending machines (HBM) feature:
Excellent repeatability of stroke with an accuracy of +- 0.004″ with Digital Linear Encoder and Proximity Sensors
Programmable touch screen controller – Standard
Jog mode for tooling alignment and programming
Name-brand electric and hydraulic components ensure machine reliability

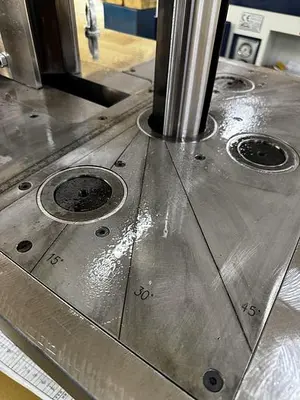

CNC machined one-piece solid table design

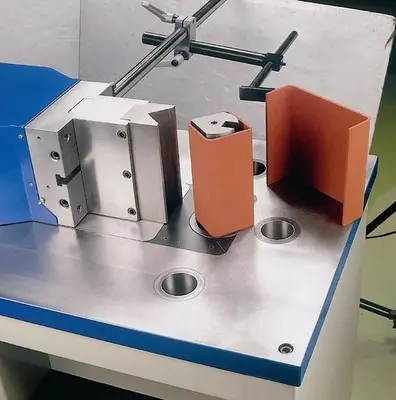

A wide range of standard and custom tooling is available

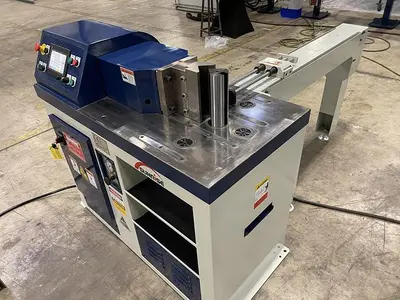

A manual back gauge is included for accurate positioning.
Both HBM models feature a standard programmable touch-screen controller with 50 program memory.
Trilogy Machinery offers 100% factory-authorized service and support and a full stock of spare parts and accessories in our northern Baltimore Location.
Videos
Sunrise HBM Training Video
Sunrise HBM-45 CNC Backgauge
Sunrise HBM-45 Horizontal Bending Machine Manual Backgauge
SUNRISE HBM Plate Shear
SUNRISE HBM Beam Straightening
SUNRISE HBM – Pipe Bending
Catalogs
SUNRISE Horizontal Bender

Availability: On Order
Cylinder: 45 Tons
Stroke: 10″
Forward Speed: 0.52″/sec
Backward Speed: 0.79″/sec
HP: 5
Power Requirements: 3 Phase | 220/480
Machine Size: 2275# – 52″ x 25″ x 47″
