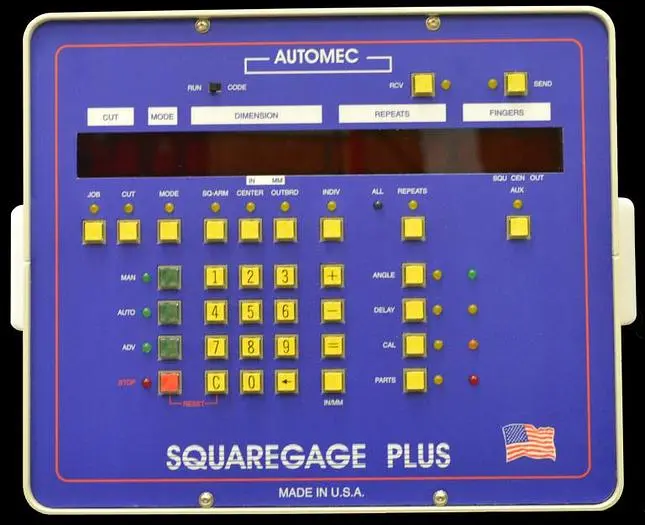

(consists of control, cables, and top/bottom switch)
Programmable Frontgauging for Shears. CNC Squaregage is a precision front gauging system for power shears consisting of a digital control and 1, 2 or 3 mechanical drive units depending on the application. Each drive unit has a DC motor, amplifier, and encoder which permits independent movement. The drives are spaced so that the operator can stand between them and manually reposition the workpiece. A removable squaring arm is located atop one of the drives. The most popular and efficient system consists of a 10’ or 12’ squaring arm and two auxiliary 6’ drives. This control carries a 1 year warranty.
In/mm conversion
Parts counter
300 job memory
Job storage with up to 11-digit job number.
10 cuts per job.
Jobs can be linked together for larger programs.
Resolution at .001″
Gauge Delay up to 9 seconds
Inch/mm Conversion, yes
