SH-8580D

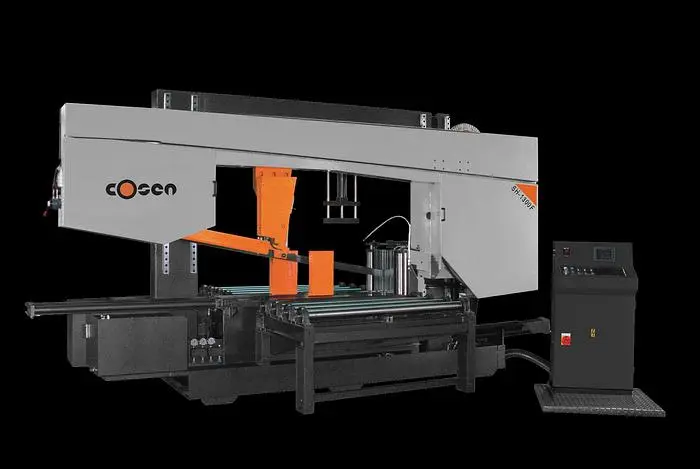

The SH-8580D by Cosen is a new semi-automatic straight cut billet bandsaw designed for industrial applications. It is capable of handling large materials with a round capacity of 31.5 inches and a rectangular capacity of 31.5 by 33.5 inches. The machine operates with a blade speed ranging from 49 to 293 feet per minute, utilizing a robust 15 horsepower blade motor. The bandsaw is equipped with a large blade, measuring 27 feet 2.8 inches in length, 2.625 inches in width, and .063 inches in thickness.

This bandsaw features a coolant system with a 1/4 horsepower motor and a tank capacity of 16.4 gallons, ensuring efficient operation and longevity of the blade. The hydraulic system has a capacity of 8.7 gallons and contributes to precise and controlled cutting performance. The workbed height is 25.2 inches, allowing for ease of use and accessibility.

With a total weight of 14,300 lbs and compact dimensions of 153 inches in length, 92 inches in width, and 116 inches in height, the SH-8580D is designed to maximize floor space efficiency while providing powerful cutting capabilities. This makes it an excellent choice for facilities handling demanding workloads and large material sizes.

Round Capacity: 31.5"
Rectangular Capacity (HxW): 31.5" x 33.5"
Blade Speed: 49 - 293 FPM
Blade Size (LxWxT): 27' 2.8" x 2.625" x .063"
Blade Motor: 15 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 16.4 gal
Hydraulic Tank Capacity: 8.7 gal
Workbed Height: 25.2"
Floorspace (LxWxH): 153" x 92" x 116"
