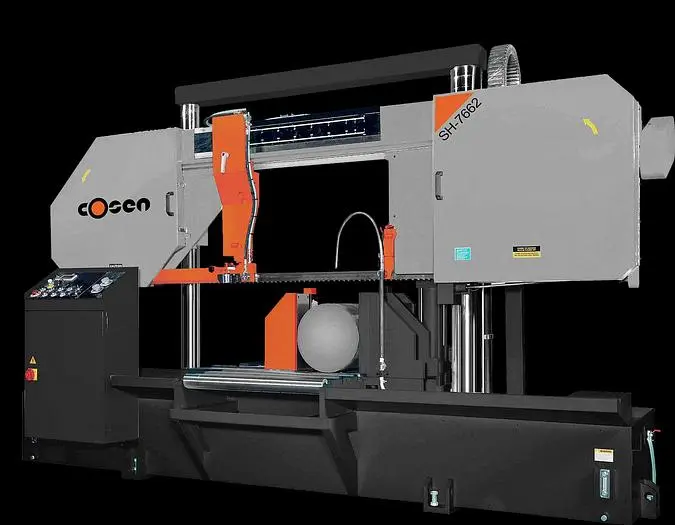

SH-7662

Structure

Hydraulic dual column design. Adjustable cast iron guide arm

Mechanics

Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush

Blade

Inverter blade drive system which allows for infinitely variable blade speeds. Hydraulic blade tensioning system. Carbide blade guides and bearings

Coolant

Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup

Vising

Cast iron hydraulic vise with split jaw to help reduce burr

Interface

User friendly hydraulic powered controls. Dual valve feed pressure and feed rate system

Round Capacity: 24.4"
Rectangular Capacity (HxW): 24.4" x 30"
Blade Speed: 50 - 328 FPM
Blade Size (LxWxT): 23' 7.5" x 2" x .050" / .063"
Blade Motor: 10 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 22.5 gal
Hydraulic Tank Capacity: 10 gal
Workbed Height: 24"
Floorspace (LxWxH): 139.2" x 47.2" x 93"
