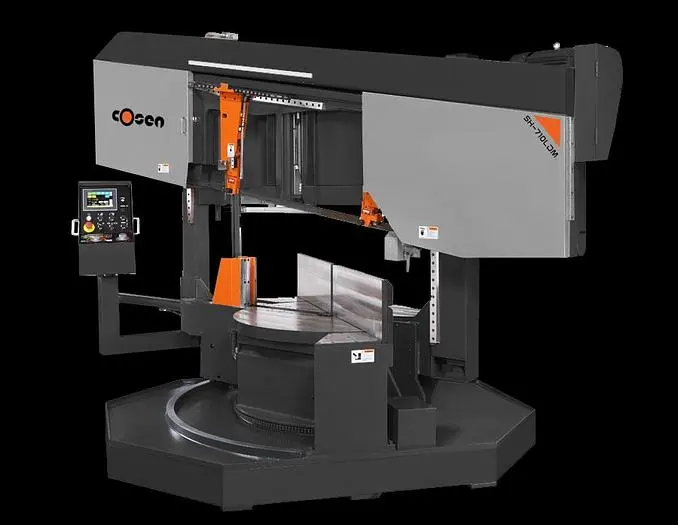

SH-710LDM

Structure

Precision linear guide way system. Cast iron guide arm. Heavy-duty cast iron swivel base designed for straight and miter cutting up to +/- 60 degrees

Mechanics

Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush

Blade

Inverter blade drive system which allows for infinitely variable blade speeds. Hydraulic blade tensioning system. Carbide blade guides and bearings

Coolant

Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup

Vising

Cast iron hydraulic vise with split jaw to help reduce burr. Synchronized vise movement with guide arm

Interface

5.7" HMI touchscreen. Dual valve feed pressure and feed rate system. Adjustable control panel arm

Capacity Angle: 0 +45 +60
Round Capacity: 18.5" 16.5" 12.6"
Rectangular Capacity: 16.5" x 28" 16.5" x 18" 16.5" x 12.6"
Blade Speed: 79 - 394 FPM
Blade Size (LxWxT): 21' 5.5" x 1.5" x .050
Blade Motor: 7.5 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: 9.3 gal
Hydraulic Tank Capacity: 8.7 gal
Workbed Height: 29.7"
Floorspace (LxWxH): 128" x 126" 76"
