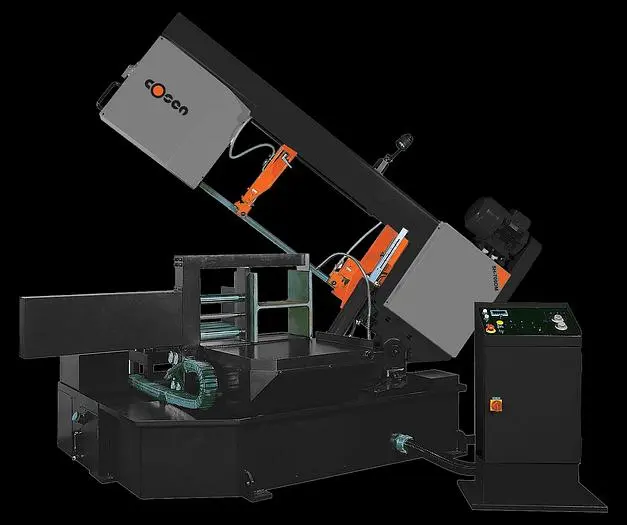

SH-700DM

The SH-700DM by Cosen is a robust semi-automatic miter bandsaw designed for precision cutting. With its mitering head capability, it can handle cuts from +60 to -45 degrees, making it versatile for complex angles. The structure is reinforced with a hydraulic cylinder and precision-ground hinge support, while rigid cast-iron guide arms provide stability. Its hardened worm gear ensures long-lasting mechanical performance.

This model features an inverter blade drive system with automatic blade tensioning, complemented by carbide blade guides and bearings for enhanced accuracy. The adjustable flood coolant system, along with an additional hose for work-bed and auger cleanup, ensures the workspace is maintained efficiently. Cast iron hydraulic vises are included for secure material handling.

The bandsaw supports a range of cutting capacities: rounds up to 17.7 inches and rectangular capacities up to 17.7 x 27.5 inches at varying angles. Its blade operates at speeds from 66 to 330 FPM, driven by a 7.5 HP motor. It also includes a 31.2-gallon coolant tank and an 11.7-gallon hydraulic tank. With a substantial weight of 5,280 lbs, the SH-700DM occupies a floorspace of 106.3 x 124 inches, standing at 107 inches tall. This model is ideal for demanding industrial applications requiring precision and reliability.

Capacity Angle: 0 +-45 +60
Round Capacity: 17.7" 17.7" 11.8"
Rectangular Capacity (HxW): 17.7" x 27.5" 17.7" x 20.5" 17.7" x 11.8"
Blade Speed: 66 - 330 FPM
Blade Size (LxWxT): 19' x 1.5" x .050
Blade Motor: 7.5 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: 31.2 gal
Hydraulic Tank Capacity: 11.7 gal
Workbed Height: 29.5"
Floorspace (LxWxH): 106.3" x 124" 107"
