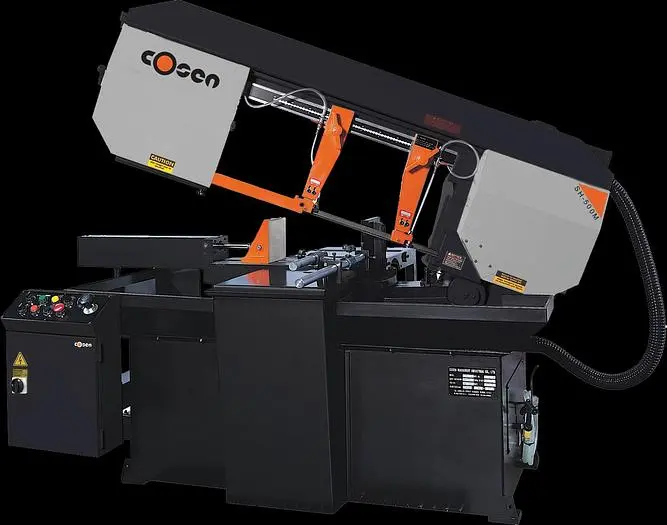

The SH-500M bandsaw from Cosen is a new semi-automatic miter saw designed for precision and durability in industrial applications. Constructed with a hydraulic cylinder and precision ground hinge support, it features rigid cast-iron guide arms and a mitering head capable of handling up to 60-degree cuts. This machine is engineered to withstand high lateral pressures without thermal distortion, featuring a motor-driven blade brush and a gearbox built for stability.
The saw comes with a variable pulley blade drive system and a manual blade tensioning system, supported by carbide blade guides and bearings for enhanced accuracy. An adjustable flood coolant system is included, along with an additional coolant hose for work-bed and auger cleanup, ensuring operational efficiency. Equipped with cast iron hydraulic vises and an adjustable material stop, the SH-500M offers versatile cutting capabilities.
With a blade motor of 3 HP and a maximum blade speed of 246 FPM, it accommodates various material sizes up to 13 inches in round capacity and 11 x 17.3 inches in rectangular capacity. The machine occupies a floorspace of 80.5" x 41.6" x 57.8" and weighs 1,980 lbs. It operates with a blade size of 13' 7" x 1" x .035" and includes a 7.9-gallon coolant tank and a 2.08-gallon hydraulic tank. The workbed height is set at 32.6 inches, ensuring comfortable operation.
| Weight | 1,980 lbs | 1,980 lbs |
Capacity Angle: 0 +45 +60
Round Capacity: 13" 11.8" 8.6"
Rectangular Capacity: 11" x 17.3" 11" x 9.4" 11" x 8.6"
Blade Speed: 60Hz: 75, 114, 164, 246 FPM
Blade Size (LxWxT): 13' 7" x 1" x .035"
Blade Motor: 3 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: 7.9 gal
Hydraulic Tank Capacity: 2.08 gal
Workbed Height: 32.6"
Floorspace (LxWxH): 80.5" x 41.6" x 57.8"
