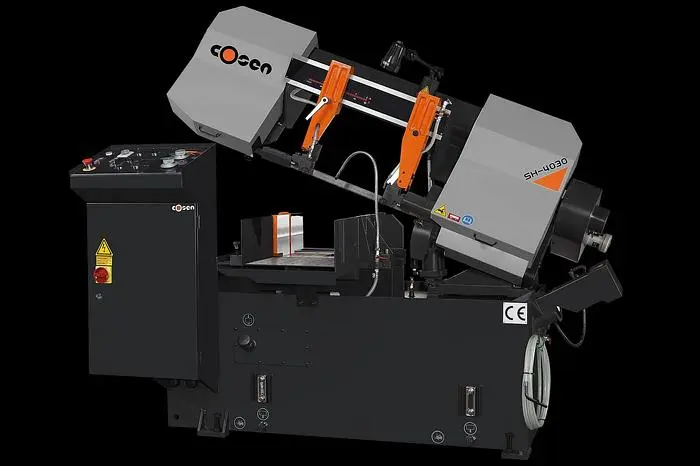

The SH-4030 from Cosen is a versatile semi-automatic straight cut billet bandsaw, made for precision and durability. It features a hydraulic cylinder support with a precision ground hinge and an adjustable cast iron guide arm. The machine is engineered for high lateral pressure with a gearbox that ensures no thermal distortion, along with a motor-driven blade brush that enhances efficiency.
Equipped with a five-step variable speed drive, the SH-4030 includes a hydraulic blade tensioning system and carbide blade guides and bearings, which enhance cutting accuracy. Its adjustable flood coolant system, supplementary hose for work-bed, and auger cleanup ensure effective cooling and maintenance. The cast iron hydraulic vise with a split jaw is designed to minimize burr during operations, providing clean cuts.
In terms of performance, the SH-4030 comes with a precision feed pressure and feed rate valve system to optimize cutting. It accommodates a round capacity of 9.8 inches and a rectangular capacity of 11 x 9.8 inches. The blade measures 11' 5" x 1.25" x .042", with a speed ranging from 50-341 FPM, driven by a 3 HP blade motor. The space-efficient design requires a floorspace of 74" x 80" x 70", and it weighs 2,830 lbs.
| Weight | 2,830 lbs | 2,830 lbs |
Round Capacity: 9.8"
Rectangular Capacity (HxW): 11" x 9.8"
Blade Speed: 50-341 FPM
Blade Size (LxWxT): 11' 5" x 1.25" x .042"
Blade Motor: 3 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: 10 gal
Hydraulic Tank Capacity: 5.2 gal
Workbed Height: 25.9"
Floorspace (LxWxH): 74" x 80" x 70"
