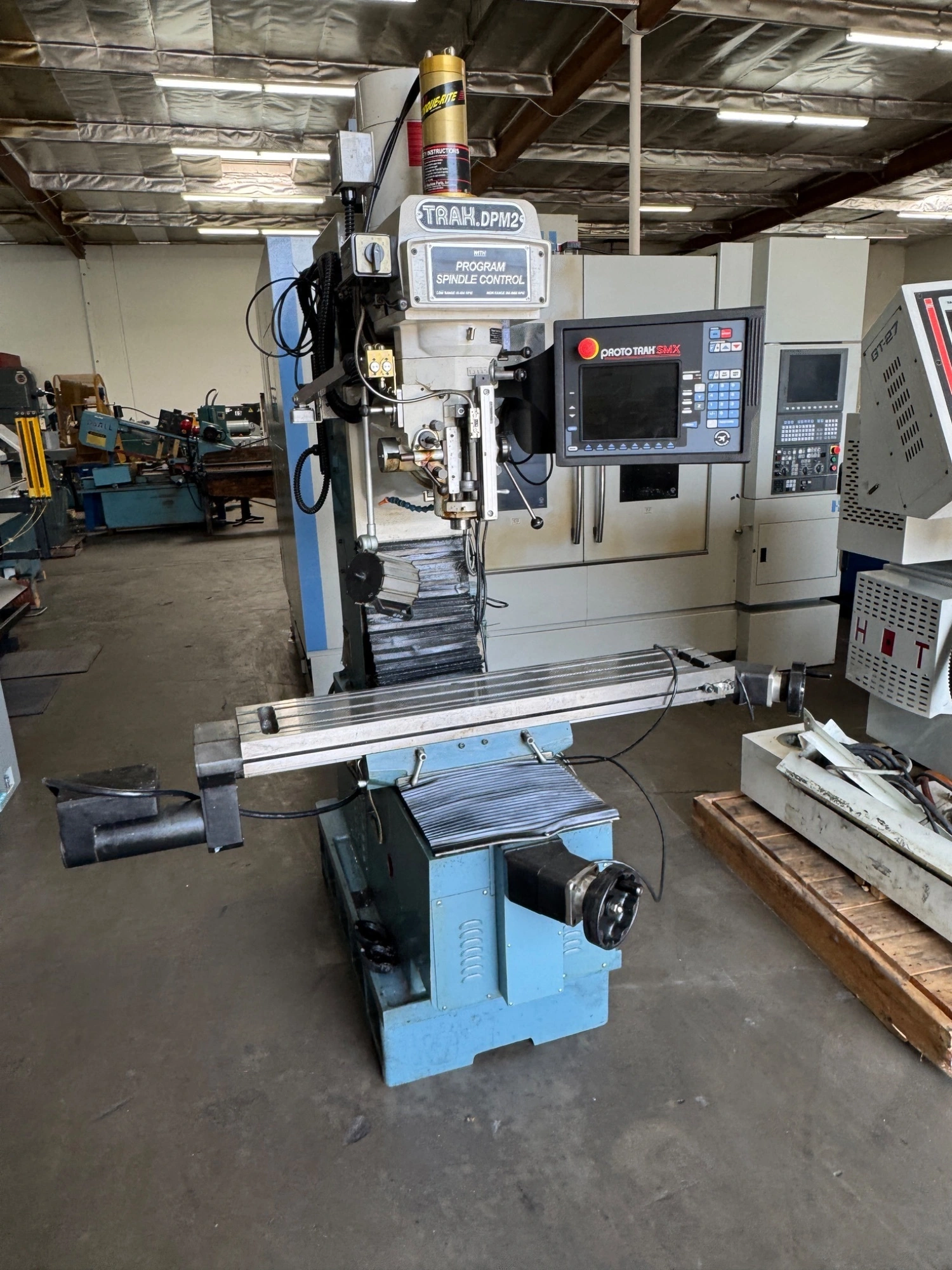

2013 Southwestern Trak DPMSX2P 3-Axis CNC Bed Mill #8210. Ideal for precision tasks, this used vertical milling machine offers reliable performance for your projects. Explore efficient machining with this quality equipment.
| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 32" | 812.8 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |
| Control | CNC (Prototrak SMX) | CNC (Prototrak SMX) |
| Dimensions | 72 x 64 x 90 | 72 x 64 x 90 |
| Weight | 3500 | 3500 |
2013 Southwestern Trak DPMSX2 3-Axis CNC Bed Mill #7318 #1
SPECIFICATIONS:
Table-W: 9”
Table-L: 49”
Travel-Long: 32”
Travel-Cross: 16”
Z-Axis Travel: 27"
Max Quill Travel: 5"
Max Weight of Workpiece: 1,320 Lbs.
Power: 3 HP
Spindle Speed Max.: 4200 RPM
Spindle Taper: R8
Type of CNC Control Prototrak SMX
Dimensions: 72” x 64” x 90” H
Weight: 3500 Lbs.
EQUIPPED WITH:
Prototrak SMX (3) Axis Control
Power Draw Bar
Electric Handwheels
