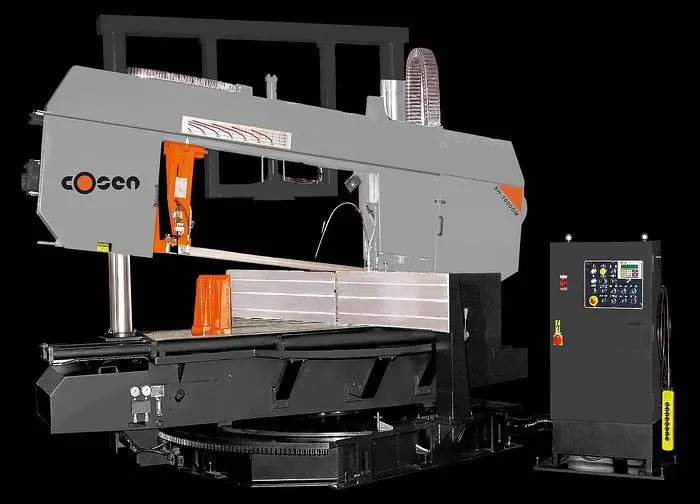

SH-1000DM

Structure

Hydraulic dual column design. Hydraulic powered cast iron guide arm. Heavy-duty cast iron swivel base designed for straight and miter cutting up to +60 and -40 degrees

Mechanics

Gearbox designed to accept high lateral pressure (No thermal distortion). Motor driven blade brush

Blade

Inverter blade drive system which allows for infinitely variable blade speeds. Hydraulic blade tensioning system. Carbide blade guides and bearings

Coolant

Adjustable flood coolant system. Additional coolant hose for work-bed and auger cleanup

Vising

Cast iron hydraulic vise with split jaw to help reduce burr. Synchronized vise movement with guide arm

Interface

Dual valve feed pressure and feed rate system. Tethered control panel

Capacity Angle: 0 +-45 +60
Round Capacity: 26" 23" 15.7"
Rectangular Capacity: 20.5" x 40" 20.5" x 24.4" 21.3" x 15.7"
Blade Speed: 82 - 443 FPM
Blade Size (LxWxT): 27' 2.8" x 2" x .050" / .063"
Blade Motor: 10 HP
Coolant Motor: 1/4 HP
Coolant Tank Capacity: 26 gal
Hydraulic Tank Capacity: 16 gal
Workbed Height: 32.7"
Floorspace (LxWxH): 130" x 63.3" 122.6"
