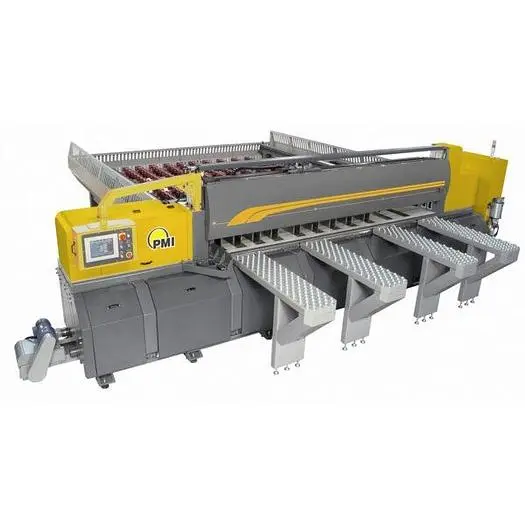

PMI-T1 Fully Automatic Plate Saw

Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automation Companies
Automotive Tier 1/2/3 suppliers
Awnings and Storefronts
Boat Docks
Boat Manufacturers
Curtainwall and Architectural Glass
Door and Windows
Forging
Furniture and Office Equipment
Lighting – Architectural
Medical
Metal Service Centers
Pneumatic Cylinders and Hydraulic Manifolds
Public and Stadium Seating
RV Industry
Solar Panels
Tradeshow displays
Trailer Industry – Recreational and Commercial
Weapon, Gun, and Accessories Manufacturing
The PMI-T1 is a fully automatic plate saw that is built and designed to cut aluminum plate and other non-ferrous plates (copper, brass, plastics).
Standard Features & Equipment:
46 HP Saw Motor
Inverter Controlled, Infinitely Variable Saw Blade Speed – 1500 to 3500 RPM
Servo Controlled Feed Rate
Touchscreen Control
Servo Controlled Material Indexing
Indexing System Equipped with Hydraulic Grippers to Secure the Plate
Cutting Depth Control – Servo with a Ballscrew
Maximum Saw Blade Size 26” Diameter
8” Maximum Plate Thickness
12ft Maximum Plate Width and Length
