PMI-T3 CNC Automatic Double Head Miter Saw

Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automotive Tier 1/2/3 suppliers
Awnings and Storefronts
Boat Docks
Boat Manufacturers
Curtainwall and Architectural Glass
Door and Windows
Furniture and Office Equipment
Lighting – Architectural
Medical
Metal Service Centers
Public and Stadium Seating
RV Industry
Solar Panels
Tradeshow displays
Trailer Industry – Recreational and Commercial
Weapon, Gun, and Accessories Manufacturing
The PMI-T3 CNC Automatic Double Head Miter Saw is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
Fully Automatic Operation
One Saw Head is Fixed and the other is Moveable
5 HP Saw Motors (2)
Saw Heads are CrossCut Design
Servo Controlled, Powered Saw Heads – Tilt left and right
45 degrees tilt inwards
67.5 degrees tilt outwards
Moveable Saw Head – Servo Controlled
Working Lengths Available 177” or 256”
Touchscreen Control
2800 RPM Saw Blade Speed
Full Control of the Feed Rate – Air over Oil Feed System
Vertical and Horizontal Clamping
Adjustable Clamping Pressure
20” Diameter Saw Blades (2)
14” Maximum Sawing Height (at 90 degrees with 20” diameter saw blade)
6” Maximum Sawing Width (at 90 degrees with 20” diameter saw blade)

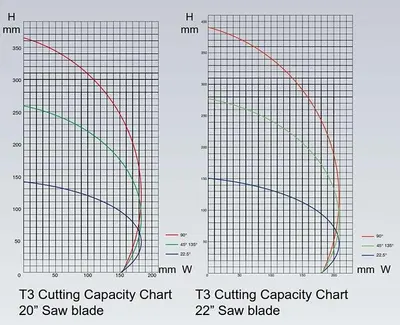

Cut Chart:
