PMI-T5 CNC Automatic Double Head Compound Miter Upcut Saw

Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automotive Tier 1/2/3 suppliers
Awnings and Storefronts
Boat Docks
Boat Manufacturers
Curtainwall and Architectural Glass
Door and Windows
Furniture and Office Equipment
Lighting – Architectural
Medical
Metal Service Centers
Public and Stadium Seating
RV Industry
Solar Panels
Tradeshow displays
Trailer Industry – Recreational and Commercial
Weapon, Gun, and Accessories Manufacturing
The PMI-T5 CNC Automatic Double Head Compound Miter Upcut Saw is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
Fully Automatic Operation
One Saw Head is Fixed and the other is Moveable
7.5 HP Saw Motors (2)
Compound Miter – Saw Head Rotation and Tilt
Servo Controlled Mitering and Tilt (both saw heads)
45 degrees tilt inwards
+/-67.5 Degrees
Moveable Saw Head – Servo Controlled
Working Lengths Available 177” or 256”
Touchscreen Control
1800 RPM Saw Blade Speed
Full Control of the Feed Rate – Air over Oil Feed System
Vertical and Horizontal Clamping
Adjustable Clamping Pressure
24” Diameter Saw Blades (2)
7” Maximum Sawing Height (at 90 degrees)
16.9" Maximum Sawing Width (at 90 degress)

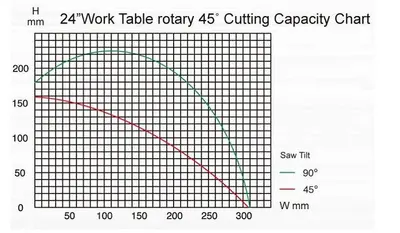

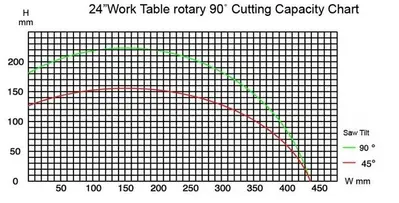

Cut Chart:
