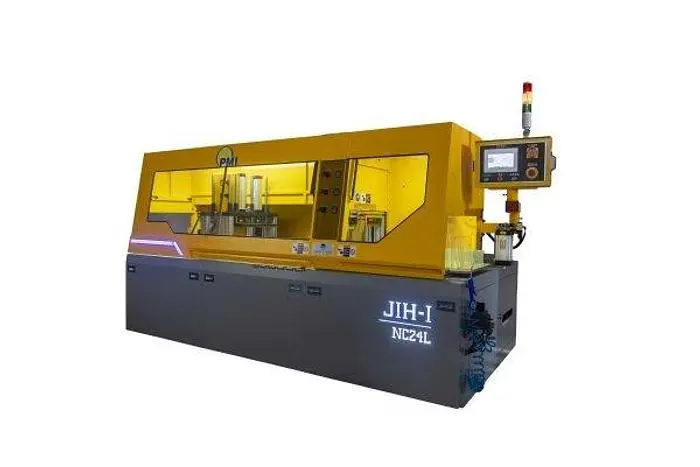

PMI-NC24 LS-Type Fully Automatic Saw

Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automation Companies
Automotive Tier 1/2/3 suppliers
Awnings and Storefronts
Boat Docks
Boat Manufacturers
Curtainwall and Architectural Glass
Door and Windows
Forging
Furniture and Office Equipment
Lighting – Architectural
Medical
Metal Service Centers
Pneumatic Cylinders and Hydraulic Manifolds
Public and Stadium Seating
RV Industry
Solar Panels
Tradeshow displays
Trailer Industry – Recreational and Commercial
Weapon, Gun, and Accessories Manufacturing
The PMI-NC24 L-Type is a fully automatic saw that is built and designed to cut aluminum extrusions, profiles, aluminums bars, and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
15 HP Saw Motor
90 Degree (Straight) Cut Saw
Inverter Controlled, Infinitely Variable Saw Blade Speed – 1200 to 3600 RPM
Servo Controlled Feed Rate – The Cutting Rate is entered into the machine’s HMI touchscreen Control.
Touchscreen Control
Ballscrew/Servo Controlled Material Indexing
Vertical and Horizontal Clamping – Bundle/Stack Cutting
Saw Table Separation – No Material Re-Cut – Improved Surface Finish and Extended Blade Life
Adjustable Clamping Pressure
Maximum Saw Blade Size 24” Diameter
7.87” Maximum Height Capacity
15.75" Maximum Width Capacity
Cut Chart:
