PMI-CNC S-Type 4-Axis Profile Machining Center
Overview
Description
The PMI-CNC S-Type 4-Axis Profile Machining Center is built and designed to mill, drill, and tap Aluminum and other non-ferrous materials. (copper, brass, plastics).
Standard Features & Equipment:
X-axis working lengths 11.5 ft to 24.6 ft (3.5m to 7.5m).
Y-axis Travel 15.75 Inches (400mm) – 8.66 Inches (220mm) in 4-axis
Z-Axis Travel 14 Inches (350mm)
A-Axis (4-axis machining) +/- 95 degree rotation of the spindle
Spindle Speed 18,000 RPM
Spindle Motor 10 HP
Tool Holder ISO 30
Automatic Tool Changer – 12 Tool Capacity

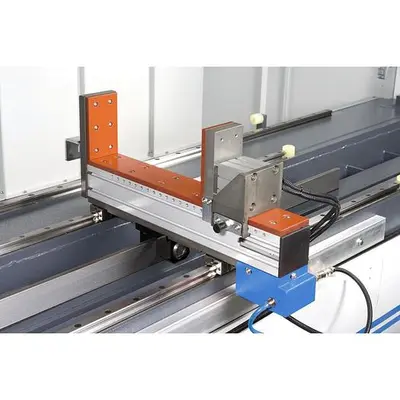

Equipped with Air Clamps
Automatic Clamp Movement
Dual Zone Processing – Machine working in one zone while the operator is loading/unloading in the other zone
Automatic Waylube Lubrication System
Mist Lubrication System
Mitsubishi Servo Drives/Motors
X, Y, Z, and A-axes are servo controlled
