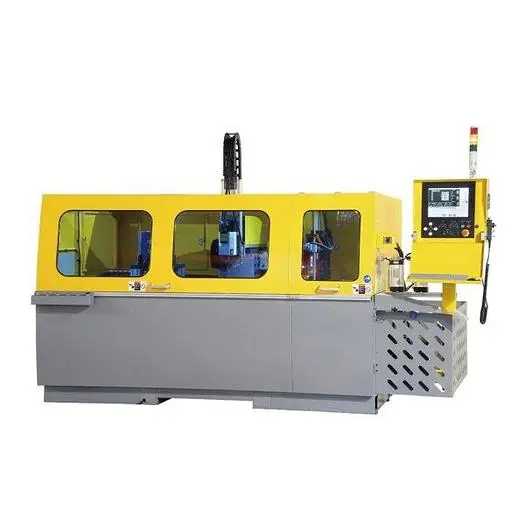

PMI-CNC 18 MDS Machining and Saw Center
Overview
Description
Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automation companies
Automotive Tier 1/2/3 suppliers
Curtainwall
Door and Window
Lighting – Architectural
Machine Shops
Marine
Medical
Metal Fabricators
Oil and Gas
RV and Trailer
Solar
Structural Fabricators
Tradeshow Displays
Transportation- Boat and Rail
Trailer Industry – Recreational and Commercial
The PMI-CNC18 MDS Machining and Saw Center is built and designed to mill, drill, tap, and saw Aluminum and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
X-axis Travel 59 Inches (1.5m)
Y-axis Travel 12.8 Inches (325mm)
Z-Axis Travel 11.81 Inches (300mm)
Shuttle Index Length 49.2 Inches (1.25m)
Spindle Speed 12,000 RPM
Spindle Motor 5 HP
Tool Holder ISO 30
Saw Motor 10 HP
Saw Blade Diameter 18 Inches
Saw Head Feed Fully Hydraulic
1 HP Hydraulic Motor
Equipped with Air Clamps
Automatic Waylube Lubrication System
Mist Lubrication System – Saw Head and Machining Spindle
Mitsubishi Servo Drives/Motors
X, Y, and Z-axes are servo controlled
Specifications
Material indexing control: Ballscrew with Servo
