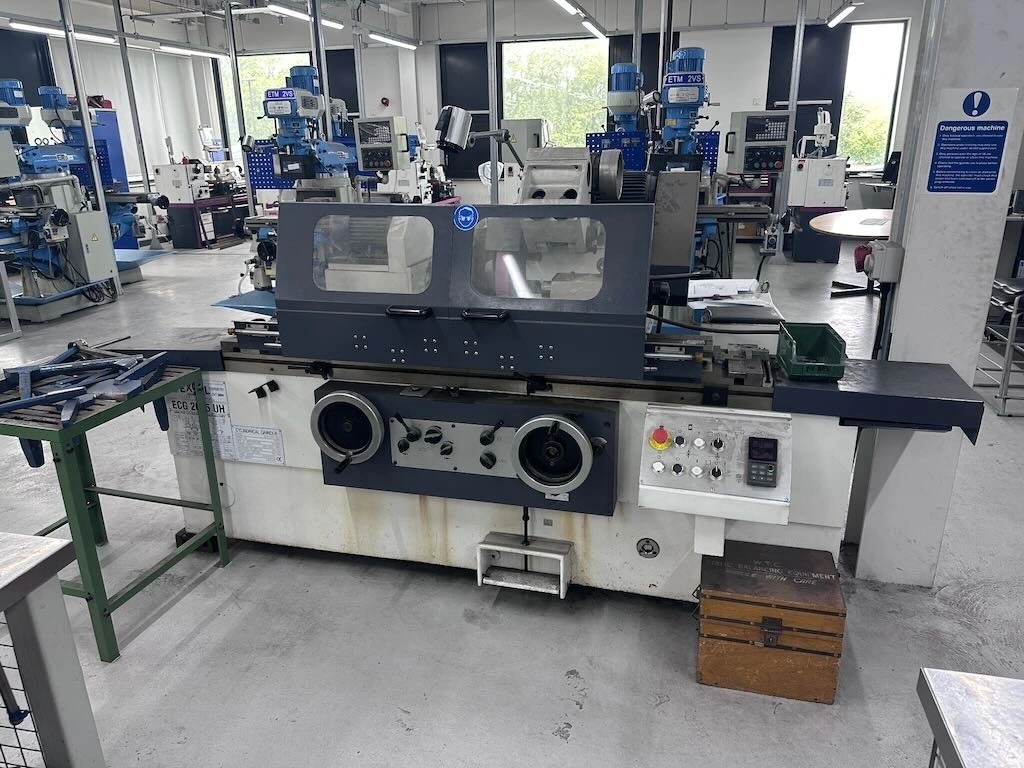

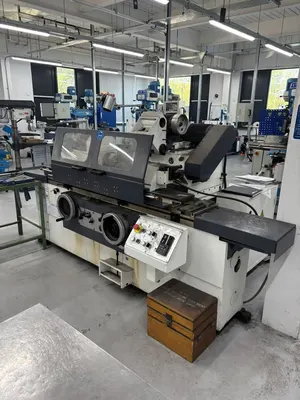

USED 2016 EXCEL ECG 2075 UH

Ex-College 2016 Excel ECG 2075 UH Universal Cylindrical Grinder, 750mm Between Centres, 135mm Centre Height, 5 to 200mm External Grinding Diameter, 25 to 100mm Internal Grinding Diameter, 100kg Max Workpiece Weight, MT4 Workhead & Tailstock, Variable Workhead Speed 25 to 380rpm, 400 x 50 x 203mm Grinding Wheel, Internal Grinding Attachment, Coolant Tank.

Excel ECG 2075 UH Universal Cylindrical Grinder, 2016
Capacity
Specification Detail
Distance between centres 750mm
Centre height 135mm
Diameter ground, external 5 to 200mm
Diameter ground, internal 25 to 100mm
Maximum external grinding length 750mm
Maximum internal grinding length 125mm
Maximum workpiece weight 100kg
Workhead
Specification Detail
Workhead swivel angle +90°
Spindle taper MT4
Spindle speed 25 to 380rpm variable

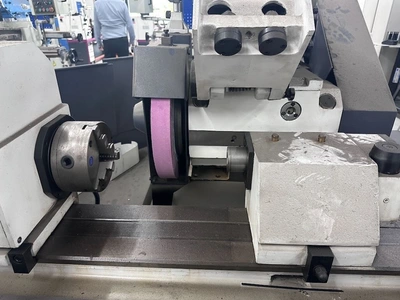

Wheelhead
Specification Detail
Wheel spindle speed 1,670rpm
Hydraulic rapid stroke 50mm
Maximum wheelhead travel 205mm
Wheelhead swivel angle +10°
Manual feed per revolution, rough 2mm
Manual feed per revolution, fine 0.5mm
Manual feed per graduation 0.01mm
Fine feed per graduation 0.0025mm
Grinding wheel size 400 x 50 x 203mm
Grinding wheel speed 1,440rpm
Internal Grinding
Specification Detail
Internal spindle speed 10,000 / 15,000rpm
Maximum internal wheel size 50 x 25 x 13mm
Minimum internal wheel size 17 x 20 x 6mm
Table & Tailstock
Specification Detail
Table travel per revolution 6mm
Maximum table swivel clockwise 3°
Maximum table swivel anti-clockwise 8°
Longitudinal travel speed 0.1 to 4m/min
Tailstock quill taper MT4
Tailstock quill travel 30mm
Motors & Dimensions
Specification Detail
Wheelhead motor 4kW
Internal grinding motor 1.1kW
Workhead motor 1.1kW
Machine dimensions, L x W x H 275 x 203 x 205cm
Machine weight 4,300kg
