PMI-610 A-Type Fully Automatic Upcut Saw

Ideal for Applications in the Following Industries:
Aerospace
Aluminum Extruders
Automation Companies
Automotive Tier 1/2/3 suppliers
Awnings and Storefronts
Boat Docks
Boat Manufacturers
Curtainwall and Architectural Glass
Door and Windows
Forging
Furniture and Office Equipment
Lighting – Architectural
Medical
Metal Service Centers
Pneumatic Cylinders and Hydraulic Manifolds
Public and Stadium Seating
RV Industry
Solar Panels
Tradeshow displays
Trailer Industry – Recreational and Commercial
Weapon, Gun, and Accessories Manufacturing

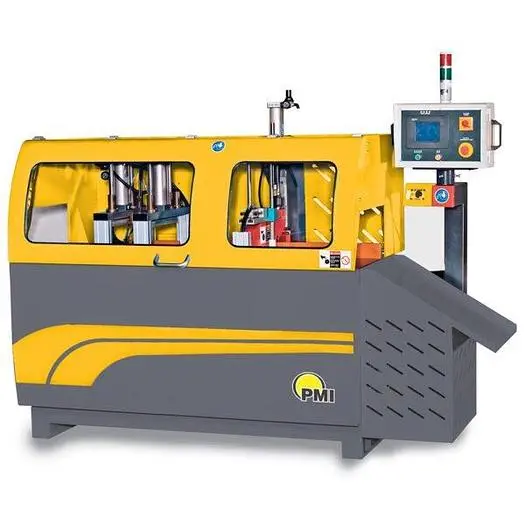

The PMI-610 A-Type is a fully automatic upcut saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).
Standard Features & Equipment:
10 HP Saw Motor
90 Degree (Straight) Cut Saw
2000 RPM Saw Blade Speed
Full Control of the Feed Rate - Fully Hydraulic
Touchscreen Control
Ballscrew/Servo Controlled Material Indexing
Vertical and Horizontal Clamping – Bundle/Stack Cutting
Adjustable Clamping Pressure
24” Diameter Saw Blade
7.5” Maximum Height Capacity
16.5” Maximum Width Capacity

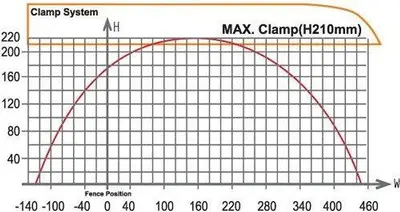

Cut Chart:

Https: //youtu.be/1FnHFC0co_I
