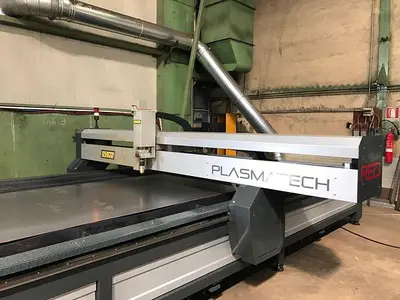

Main Features
Soitaab Human Machine Interface (SHMI)
High-accuracy positioning with dual brushless drives
Linear guide ways with rack & pinion coupling
Rigid welded gantry for a compact, lightweight, and sturdy design
Gantry is independent from (but integrated with) the separate cutting table
Vertical (z) axis is servo-driven and controlled by the CNC

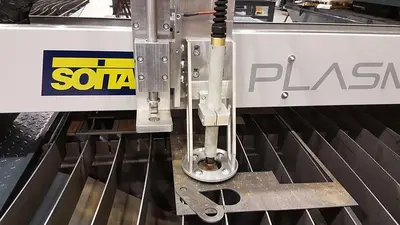

Torch breakaway anti-collision device
Initial height positioning via Ohmic sensor or mechanical plate rider

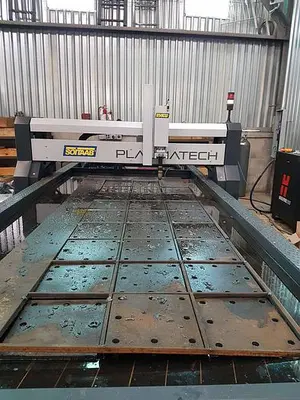

Cutting table divided in sections with fume extraction through 2 internal channels
Automatic fume extraction with dampers activated by the machine position
Side-loaded removable drawers make table cleaning easy
Completely protected guide ways for long life
Working area: 5ft. x 10ft. up to 6.5ft. x 20ft
Carriage stroke (z):: 4 in (100 mm vertical)
Motors ( x,y,z ): Brushless
Driver ( x,y,z ): Digital
Positioning speed: 1575 ipm (40 m/min)
Repeatability: + - .002“ (0,05 mm/m)
CNC: Soitaab CNC
Monitor: 15 in LCD touch screen
Data communication: USB - Ethernet - LAN
Compact bevel plasma: Yes
Oxyfuel flame torch: 1
