Rundown
The PCR31 offers you the capability of a beam coping machine while being able to process plates in the same working space. This multi-purpose and easy-to-use machine automates all cutting operations typically performed on structural steel.
Versatility
Compact
Plate Processing
Processing Material Types, Cuts & Sizes
Types: H Beams, Channels, HP-Shape, Angles, HSS, Plate (Standard), Plate (In Option)

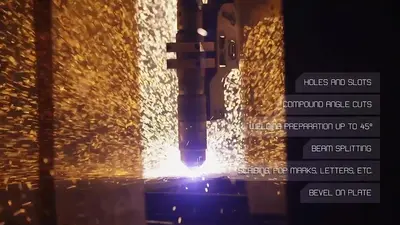

Cuts: Holes & Slots, Bevel On Plate, Compound Angle Cuts, Weld Prep (45 degrees), Beam Splitting, Scribing & Marking
**Hypertherm XPR 300 can pierce up to 1.75 ”, edge start up to 3″ Can be supplied with HPR 400
PCR31 Capabilities
Versatility
You can now work with H-beams, channels, angles, HSS and plate processing on the same system. In one operation you can prep slots, holes, copes and marking, cut notches, weld preps, split beams, scribe and mark on 3 sides.
Interface
Our software is developed in-house to process even the most complex DSTV files such as DXF for plate, DSTV files from TEKLA, SDS/2, GRAITEC and other detailing software.
Plate Processing

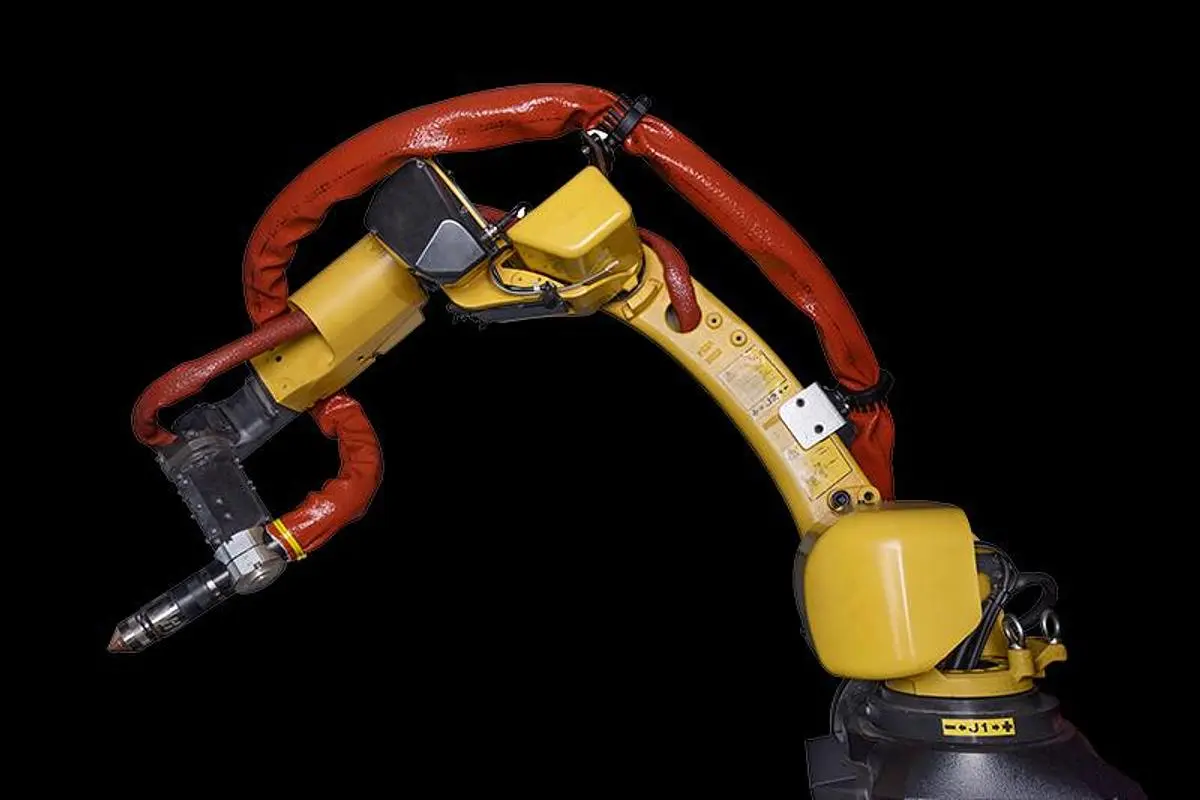

The PCR31 can process plates up to 60 inches wide. The robotic arm offers bevelling capability, including integrated torch height control, keeping control of tip to plate distance at the optimum value. The automatic torch calibration ensures the precision of bevel cut.
Accuracy & Speed
The PCR31’s 3D Vision System measures the actual dimensions of raw materials and automatically compensates for any variations, resulting in precise finished processes.
Productivity & Payback
You can nest several parts from a raw piece to reduce handling and increase productivity.
Advanced Robotic Plasma Cutting Table
Sizes: I-Beam Up To 44″ & HSS Rectangle Up To 20″ x 16″
