OCEAN TERMINATOR DCM 18/42 BAND SAW
Overview
Description
The Ocean Terminator 18/42 Dual Column Double Miter Band Saw is the largest saw that we distribute and is specifically designed for structural steel fabricators to handle the largest beams and profiles, and the heaviest sections that structural steel fabricators cut on a daily basis. This dual column double miter band saw has the ability to miter cut both directions significantly reduces the material handling time, further improving your profitability.
The Ocean Terminator is designed for customers who require fast cutting of large steel profiles including beams, channel, angle, flat bar, and round pipe. Typically industries include structural steel, engineering and job shops, rail and transport companies, truck and frame rails, skid manufacturers, and more.
Laser-guide to assist lining up the material

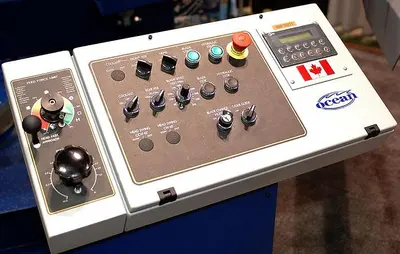

Digital feedback display of miter angle and blade speed

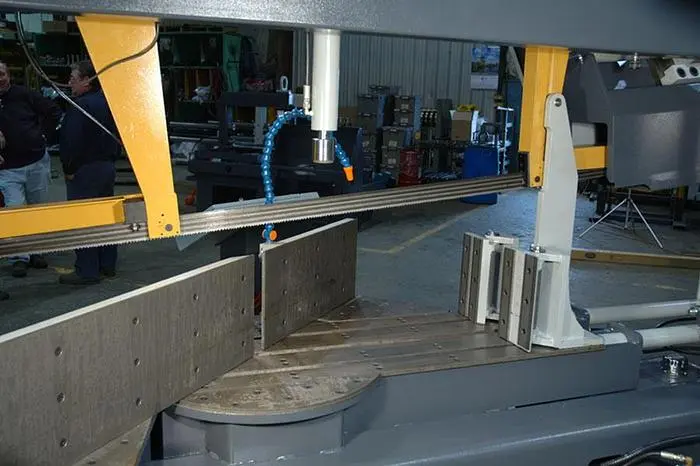

Dual vices to clamp the material on each side of the blade ensuring sawing accuracy and improved blade life
Overhead clamp to support bundle cutting, increasing rigidity and improving cutting accuracy
A powerful 10hp/7.5kw motor is mounted directly to a two stage gearbox.
An AC inverter drive provides a large range of blade speeds, ensuring efficient cutting of all profiles and materials.
The direct down-feed system allows easy adjustment of the feed rate and cutting system.
Specifications
| Weight | 12,000 lbs (5,455 kg) | 12,000 lbs (5,455 kg) |
|---|
Blade Size: 2″ x 29′-6″ (50 x 8992mm)
Blade Wheel Dia.: 27″ (686mm)
Blade Speed: 40-300 fpm (12-90 mpm)
Blade Drive Motor: 10 HP (7.5 kw)
Hydraulic Motor: 3 HP (2.2 kw)
Hydraulic Tank Cap.: 9.5 US gallons (36 L)
Dimensions: (WxLxH) 162″ x 182″ x 88″ (2007 x 4623 x 2235mm)
Shipping Dimensions: 79″ x 182″ x 88″ (2007 x 4623 x 2235mm)
Table Height: 31″ (787mm)
