OCEAN TERMINATOR DCM 18/25 BAND SAW
Overview
Description
The Ocean Terminator 1825 Dual Column Dual Miter Band Saw is the newest of the Ocean Terminator range of band saws. It is specifically designed for structural steel fabricators to handle the larger beams and profiles, and the heaviest sections that structural steel fabricators cut on a daily basis.
The Terminator 1825 can miter to 60 degrees in both directions. It also has a very useful optional powered lift roller to help un-pinch blades and to assist moving heavy material over the saw datum block.
The ability to miter cut both directions significantly reduces the material handling time, further improving your profitability.
Laser-guide to assist lining up the material

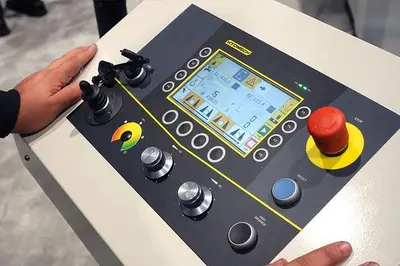

Digital feedback display of miter angle and blade speed

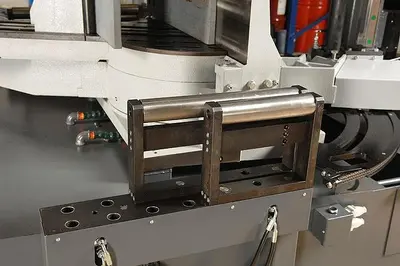

Dual vises provide material clamping on both sides of the blade
Overhead clamp to support bundle cutting, increasing rigidity and improving cutting accuracy

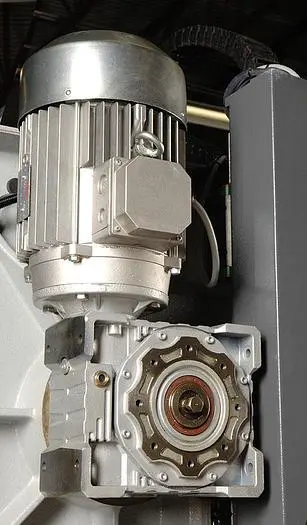

A powerful 15hp/9.2kw motor is mounted directly to a two stage gearbox.
An AC inverter drive provides a large range of blade speeds, ensuring efficient cutting of all profiles and materials.
The direct down-feed system allows easy adjustment of the feed rate and cutting system.
Three coolant pumps to ensure high coolant flood to cool down the blade and wash away chips.
Blade Size L 22′ X 1-1/2″ X .050″ (6700±20 x 41 x 1.3mm)
Specifications
| Weight | 7275 lbs (3300 kg) | 7275 lbs (3300 kg) |
|---|
Blade Speed: 50-492 fpm (15-150 mpm)
Blade Drive Motor: 15 HP (9.2 kw)
Hydraulic Tank Cap.: 6.5 US gallons (24.5 L)
Dimensions (LxWxH): 130″ x 134″ x 91″ (3300 x 3400 x 2312mm)
Shipping Dimensions: 83″ x 134″ x 93″ (2100 x 3400 x 2350mm)
Table Height: 37″ (938mm)
