MH-300DM

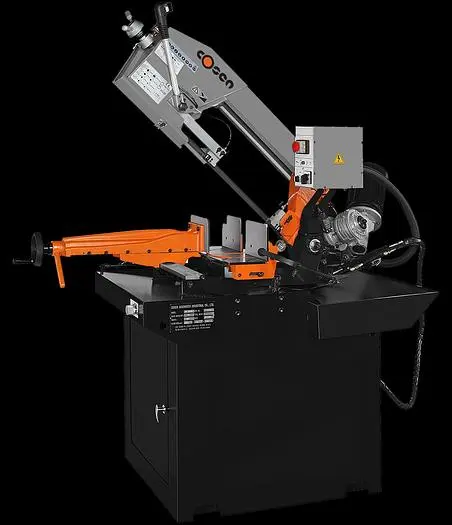

The Cosen MH-300DM is a new manual bandsaw designed for precise cuts and robust performance. It features a hydraulic cylinder and precision-ground hinge support, ensuring stability and accuracy in operation. The mitering head allows for flexibility in angle cuts, supporting up to +60 degrees and -45 degrees. The direct drive gearbox and AutoCut mode with adjustable feed rate make this bandsaw adaptable to varying workloads, while the Quick Approach mode enhances cutting efficiency.

The manual blade tensioning system, complete with a pressure gauge, ensures optimal tension for various jobs. It is equipped with carbide blade guides and bearings, as well as a blade cleaning chip brush to maintain performance and longevity. Blade speed ranges from 122 to 231 FPM, with a blade size of 9' 8.7" x 1" x .035". The heavy-duty cast iron quick clamp/release vise supports secure material handling, and the adjustable downfeed control valve and hydraulic saw bow controls provide precise operation.

Additional features include an adjustable flood coolant system with a built-in drip pan, enhancing blade life and cut quality. With a round cutting capacity of up to 10.2 inches and rectangular capacity up to 9" x 11.6", this bandsaw is versatile for various dimensions. Weighing 704 lbs and occupying a floorspace of 61" x 31.5" x 58.3", the Cosen MH-300DM combines durability, functionality, and space-efficient design.

Capacity Angle: 0 +45 +60 -45
Round Capacity: 10.2" 9.4" 6.29" 9.4"
Rectangular Capacity: 9" x 11.6" 8.3" x 8.9" 5.1" x 6.3" 7.5" x 7.5"
Blade Speed: 122, 231 FPM
Blade Size (LxWxT): 9' 8.7" x 1" x .035"
Blade Motor: 1.5 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: ---
Hydraulic Tank Capacity: ---
Workbed Height: 36"
Floorspace (LxWxH): 61" x 31.5" x 58.3"
