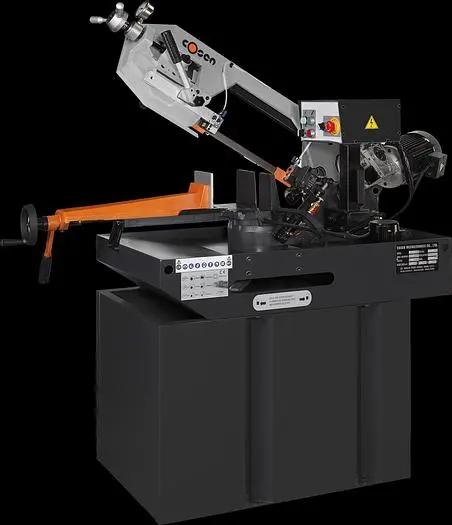

MH-270M

INDUSTRIAL MITERING UTILITY SAW
The MH-270M comes equipped with a manual vise and adjustable hydraulic down feed. It is an ideal band saw for the small to medium machine shop, maintenance shop, metal fabricating shop, school, and for limited run production work. It is a great machine for cutting square, round, and rectangular solids, as well as tubing material. Its solid construction ensures many years of reliability and accuracy at a high level of performance.
MACHINE FEATURES
Structure
Hydraulic cylinder plus precision
ground
hinge support. Mitering head for up to +60 degree cuts
Mechanics
Hardened worm gear for durability. AutoCut mode with adjustable feed rate. Quick approach mode
Blade
Stepless variable blade speeds. Manual blade tensioning system with pressure gauge. Carbide blade guides and bearings. Blade cleaning chip brush
Coolant
Adjustable flood coolant system. Built-in coolant drip pan
Vising
Heavy duty cast iron quick clamp/release vise
Interface
Adjustable down feed control valve. Hydraulic saw bow controls

Capacity Angle: 0 +45 +60
Round Capacity: 8.9" 5.7" 3.5"
Rectangular Capacity: 6" x 9.45" 5.7" x 8.2" 3.5" x 7"
Blade Speed: 60Hz: 125 - 250 FPM
Blade Size (LxWxT): 8' 1.625" x 1" x .035"
Blade Motor: 1.5 HP
Coolant Motor: 1/8 HP
Coolant Tank Capacity: ---
Hydraulic Tank Capacity: ---
Workbed Height: 36"
Floorspace (LxWxH): 53" x 28" x 52.2"
