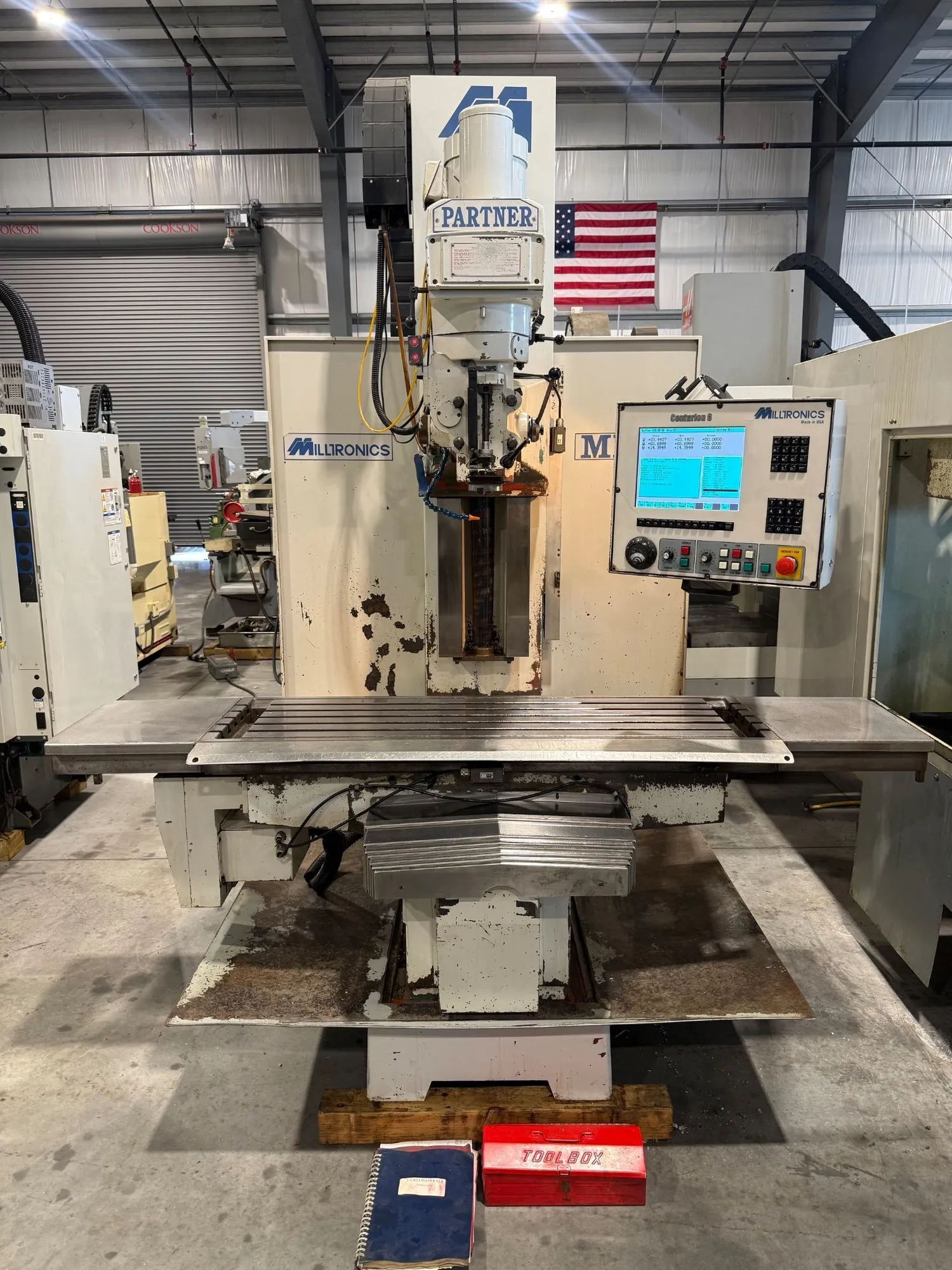

MILLTRONICS MB-20 3 Axis CNC Vertical Milling Machine # 8312
| Table-W | 16" | 406.4 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 40" | 1,016 mm |
| Travel-Cross | 20" | 508 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | ISO-40 | ISO-40 |
| Dimensions | 80” L x 82” W x 92”H | 80” L x 82” W x 92”H |
| Weight | 6000 Lbs. | 6000 Lbs. |
MILLTRONICS MB-20 3 Axis CNC Vertical Milling Machine # 8312
Reference # 8312
Model # MB-20
Serial # 6388
Year of manufacture- 2002’
Table size- 54” x 16”
Table load capacity- 2500 Lbs.
X axis travel- 40”
Y axis travel- 20”
Z axis travel- 24’’
Quill travel- 6’’
Spindle taper- CAT-40
Spindle speeds- 60 – 4,000 R.P.M.
Head tilts- 180 degrees left & right
Milltronics Centurion 6 CNC control
Pneumatic drawbar
Work light
5 H.P. spindle motor
Machine is wired for 230 volt / 3 phase / 60 H.Z.
Machine weight- 6,000 Lbs.
Machine dimensions- 80” L x 82” W x 92”H
Machine location- F.O.B. Sarasota, Florida
