USED DOOSAN PUMA 5100LC

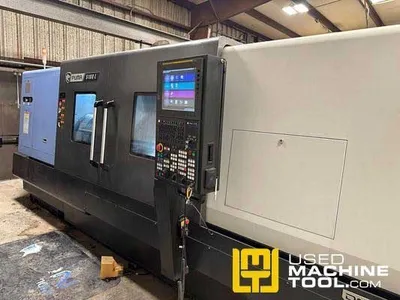

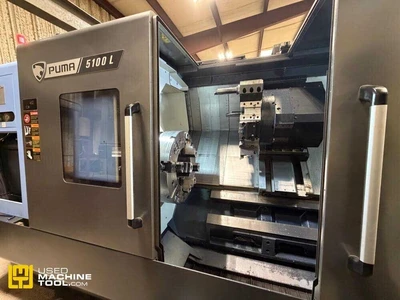

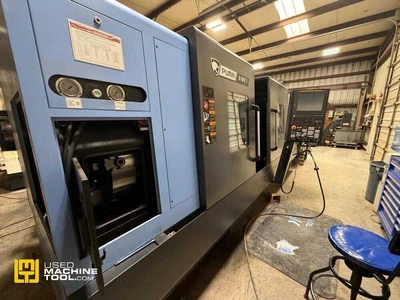

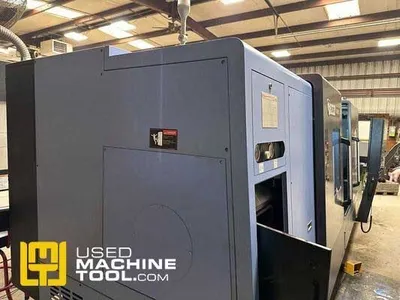

This 2023 DN Solutions Puma 5100LC CNC Turning Center is a premium-grade horizontal lathe engineered for heavy industrial applications — oil and gas, aerospace, energy, defense, and heavy equipment manufacturing. With a 25.6″ max turning diameter, 80.4″ of turning length, and a massive 10.8″ bore through the spindle, the 5100LC delivers the rigidity, capacity, and accuracy demanded by modern production shops.

Available now at UsedMachineTool.com, this machine offers a rare opportunity to acquire a nearly-new DN Solutions lathe at significant savings compared to buying new.

Key advantages at a glance:

Massive 10.8″ spindle bore — handles large-diameter bar work and long shafts
84.8″ Z-travel — ideal for long part production
60/50 HP spindle motor — exceptional torque for heavy roughing cuts
Programmable tailstock with MT#6 taper — perfect for shaft work between centers
DN Solutions Fanuc i Series Plus control — industry-standard, operator-friendly, and reliable

The Puma 5100LC is purpose-built for shops producing:

Oilfield components (drill collars, couplings, subs, mandrels)
Long shafts, rollers, and spindles
Large flanges, hubs, and bearing housings
Heavy equipment and mining parts
Aerospace and defense structural components
Energy sector hardware, including valves and turbine parts

Swing over Bed 35.4″
Swing over Saddle 27.2″
Max Turning Diameter 25.6″
Max Turning Length 80.4″
Bar Working Diameter 10.82″
X-Travels 14.3″
Z-Travels 84.8″
Max Spindle Speed 1000 RPM
Spindle Motor 60/50HP
Hole Through Spindle 10.8″

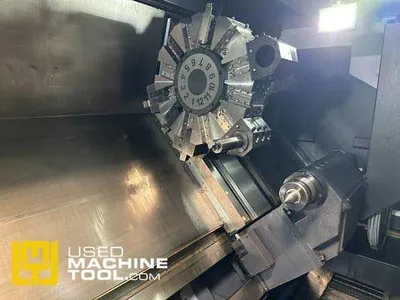

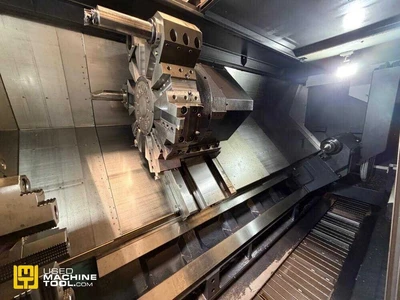

Tool Stations 12
Quill Diameter 4.7″
Bore Taper MT#6

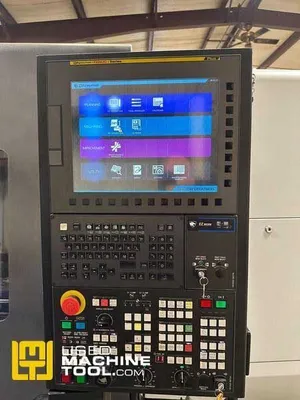

DN Solutions Fanuc I Series Plus CNC Control
Tailstock
Turbo Side Discharge Chip Conveyor
RIP-216Pass thru steady rest .5-16″

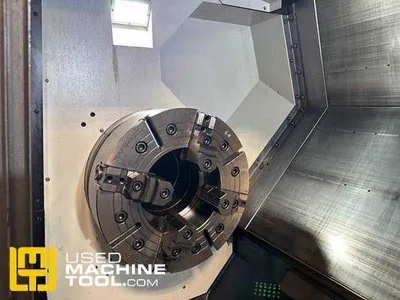

(2) 2443-2A20EX24″ 4 jaw independent King bore chuck (Front and Rear Chucks)
